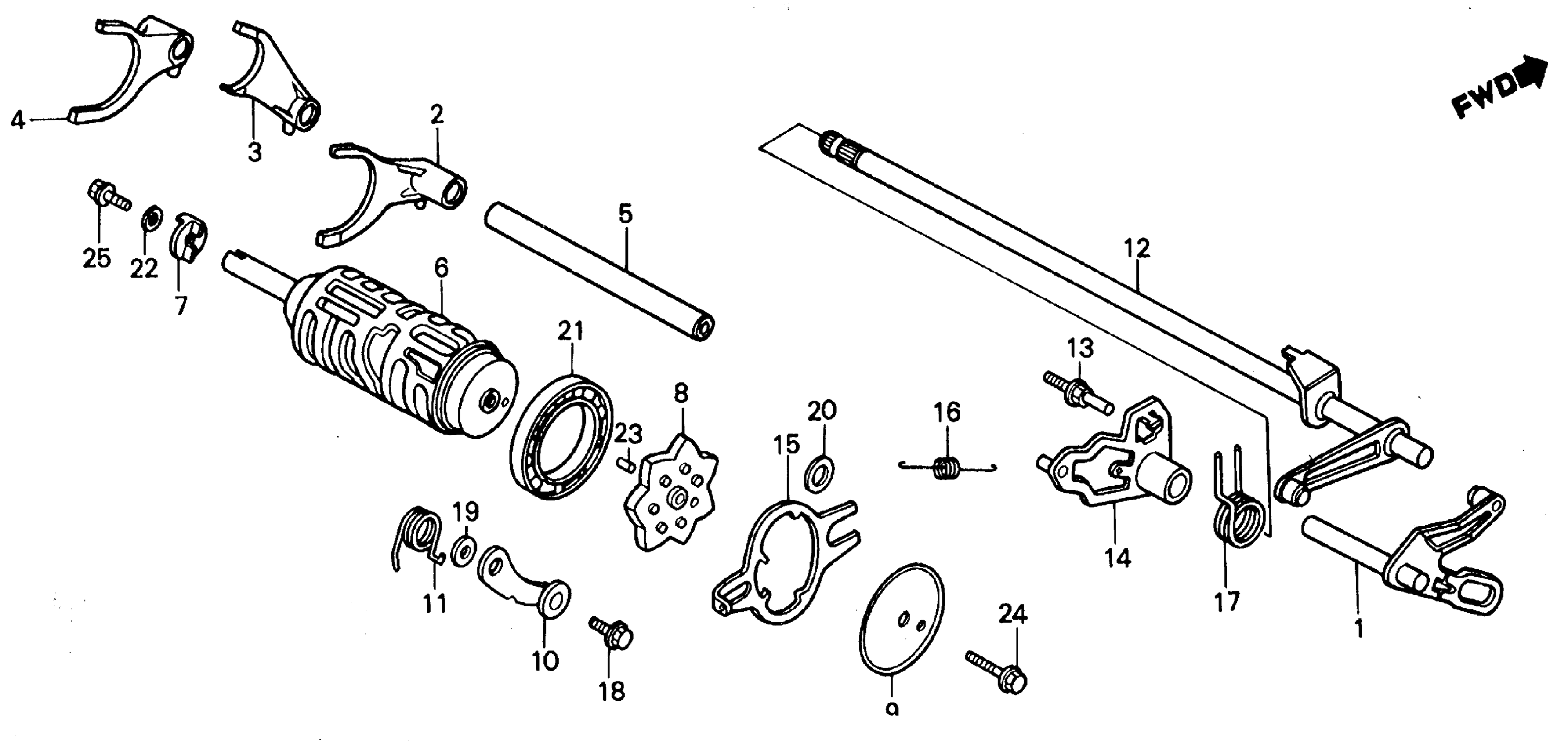

Honda TR200A (86) FATCAT, JPN, VIN# JH2TE110-GK500001 GEARSHIFT DRUM Diagram

#

Description
Price

1

SUB-LEVER, CLUTCH LIFTER

22840-HB3-020

Unavailable

2

FORK, R. GEARSHIFT

24211-HB7-000

Unavailable

3

FORK, CENTER GEARSHIFT

24212-HB5-000

Unavailable

4

FORK, L. GEARSHIFT

24213-HB5-000

Unavailable

5

SHAFT, GEARSHIFT FORK GUIDE

24241-HA5-000

Unavailable

5

SHAFT, GEARSHIFT FORK GUIDE This part replaces 24241-HB5-000.

24241-HA5-000

Unavailable

6

DRUM, GEARSHIFT (NOT AVAILABLE) | Use up to Engine SN 5004555

24301-HB7-000

Unavailable

6

DRUM, GEARSHIFT | Use from Engine SN 5004556

24301-HB7-010

Unavailable

7

ROTOR, NEUTRAL SWITCH | Use up to Engine SN 5004555

24314-HB7-000

Unavailable

7

ROTOR, NEUTRAL SWITCH | Use from Engine SN 5004556

24314-HB7-010

Unavailable

8

SHIFTER, DRUM | Use up to Engine SN 5006358 This part replaces 24321-HB3-000.

24321-HB3-030

Unavailable

8

SHIFTER, DRUM This part replaces 24321-HB3-010.

24321-HB3-030

Unavailable

8

SHIFTER, DRUM This part replaces 24321-HB3-020.

24321-HB3-030

Unavailable

8

SHIFTER, DRUM

24321-HB3-030

Unavailable

9

PLATE, SHIFT GUIDE

24328-HB3-000

$7.19

10

STOPPER, GEARSHIFT DRUM

24430-HB3-000

$14.26

11

SPRING, SHIFT DRUM STOPPER This part replaces 24435-HB3-004.

24435-HB3-770

$4.51

11

SPRING, SHIFT DRUM STOPPER

24435-HB3-770

$4.51

12

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-HB7-000

Unavailable

13

PIN, RETURN SPRING (NOT AVAILABLE)

24615-KA4-000

Unavailable

14

ARM, GEARSHIFT MASTER (NOT AVAILABLE)

24620-HB3-020

Unavailable

15

PLATE, GEARSHIFT

24631-HB3-000

Unavailable

16

SPRING, SHIFT ARM

24641-HB3-004

$2.90

17

SPRING, GEARSHIFT RETURN This part replaces 24651-HB3-010.

24651-HF1-670

Unavailable

17

SPRING, GEARSHIFT RETURN

24651-HF1-670

Unavailable

18

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

18

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

19

WASHER, DRUM STOPPER

90417-360-000

$1.74

20

WASHER, THRUST (12MM)

90451-GF6-000

$2.13

21

BEARING, RADIAL BALL (6807) (KOYO)

91010-HB7-003

$59.77

21

BEARING, RADIAL BALL (6807) (TOYO)

91010-HB7-004

Unavailable

22

WASHER, PLAIN (6MM)

94101-06800

$1.49

23

ROLLER (4X13.8)

96220-40138

$1.49

24

BOLT, FLANGE (6X20)

96300-06020-00

$1.49

25

BOLT, SOCKET (6X16)

96600-06016-08

$1.74

25

BOLT, SOCKET (6X16) This part replaces 96700-06016-08.

96600-06016-08

$1.74
