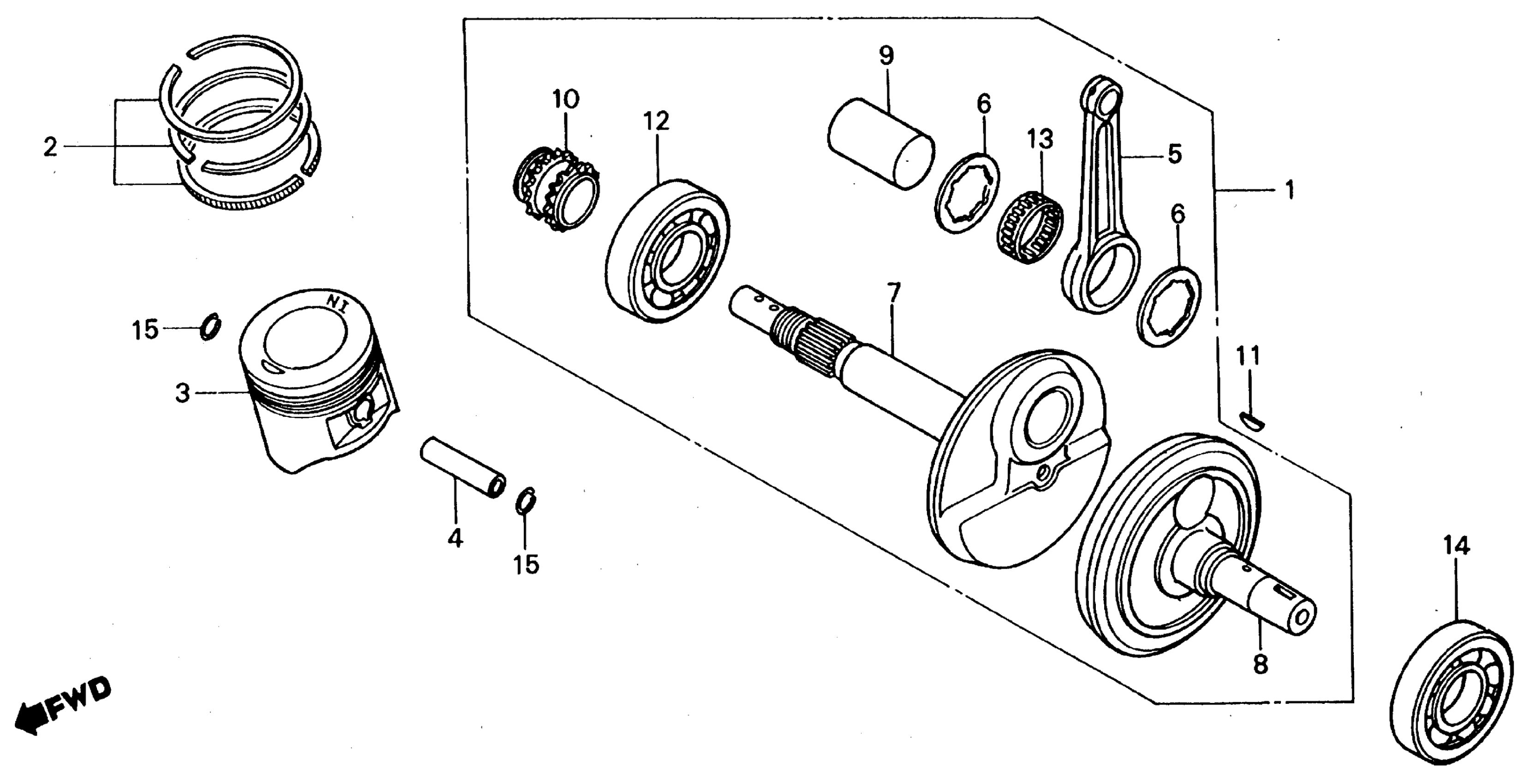

Honda TR200A (86) FATCAT, JPN, VIN# JH2TE110-GK500001 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT This part replaces 13000-HB3-000.

13000-HB3-840

Unavailable

1

CRANKSHAFT

13000-HB3-840

Unavailable

2

RING SET, PISTON (STD)

13011-HB3-305

Unavailable

2

RING SET, PISTON (OS 0.25) | (Optional).

13021-HB3-305

Unavailable

2

RING SET, PISTON (OS 0.50) | (Optional).

13031-HB3-305

$43.72

2

RING SET, PISTON (0.75) | (Optional).

13041-HB3-305

Unavailable

2

RING SET, PISTON (1.00) (NOT AVAILABLE) | (Optional).

13051-HB3-305

Unavailable

3

PISTON (STD) This part replaces 13101-HB3-003.

13101-HF1-670

Unavailable

3

PISTON (STD)

13101-HF1-670

Unavailable

3

PISTON (OS 0.25) | (Optional). This part replaces 13102-HB3-305.

13102-HF1-670

Unavailable

3

PISTON (OS 0.25) | (Optional).

13102-HF1-670

Unavailable

3

PISTON (OS 0.50) | (Optional). This part replaces 13103-HB3-305.

13103-HF1-670

Unavailable

3

PISTON (OS 0.50) | (Optional).

13103-HF1-670

Unavailable

3

PISTON (0.75) | (Optional). This part replaces 13104-HB3-305.

13104-HF1-670

Unavailable

3

PISTON (0.75) | (Optional).

13104-HF1-670

Unavailable

3

PISTON (1.00) | (Optional). This part replaces 13105-HB3-305.

13105-HF1-670

Unavailable

3

PISTON (1.00) | (Optional).

13105-HF1-670

Unavailable

4

PIN, PISTON This part replaces 13111-HB5-000.

13111-425-000

$21.65

4

PIN, PISTON

13111-425-000

$21.65

5

ROD, CONNECTING

13201-HB3-300

Unavailable

6

PLATE, CONNECTING ROD SIDE

13202-958-300

$12.02

7

CRANKSHAFT, R. This part replaces 13311-HB3-300.

13311-HB3-840

Unavailable

7

CRANKSHAFT, R.

13311-HB3-840

Unavailable

8

CRANKSHAFT, L.

13321-HB3-300

Unavailable

9

PIN, CRANK

13381-HF1-670

Unavailable

9

PIN, CRANK This part replaces 13381-383-300.

13381-HF1-670

Unavailable

10

SPROCKET, TIMING

14312-HB3-300

Unavailable

11

KEY, WOODRUFF (25X14X4) This part replaces 90701-HB6-000.

90701-HB6-010

$3.78

11

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

12

BEARING, RADIAL BALL (63/28) This part replaces 91001-KY7-003.

91009-HC0-003

$31.43

12

BEARING, RADIAL BALL (63/28) This part replaces 91001-440-003.

91009-HC0-003

$31.43

12

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

13

BEARING A, CONNECTING ROD (RED) (TOYO) This part replaces 91002-437-004.

91002-440-003

Unavailable

13

BEARING A, CONNECTING ROD (RED) (TOYO)

91002-440-003

Unavailable

13

BEARING B, CONNECTING ROD (BLUE) (TOYO) This part replaces 91003-437-004.

91003-440-003

Unavailable

13

BEARING B, CONNECTING ROD (BLUE) (TOYO)

91003-440-003

Unavailable

13

BEARING C, CONNECTING ROD (WHITE) (TOYO) This part replaces 91004-437-004.

91004-440-003

Unavailable

13

BEARING C, CONNECTING ROD (WHITE) (TOYO)

91004-440-003

Unavailable

14

BEARING, RADIAL BALL (63/28) This part replaces 91003-961-008.

91009-HC0-003

$31.43

14

BEARING, RADIAL BALL (63/28)

91009-HC0-003

$31.43

15

CLIP, PISTON PIN (15MM)

94601-15000

$1.49
