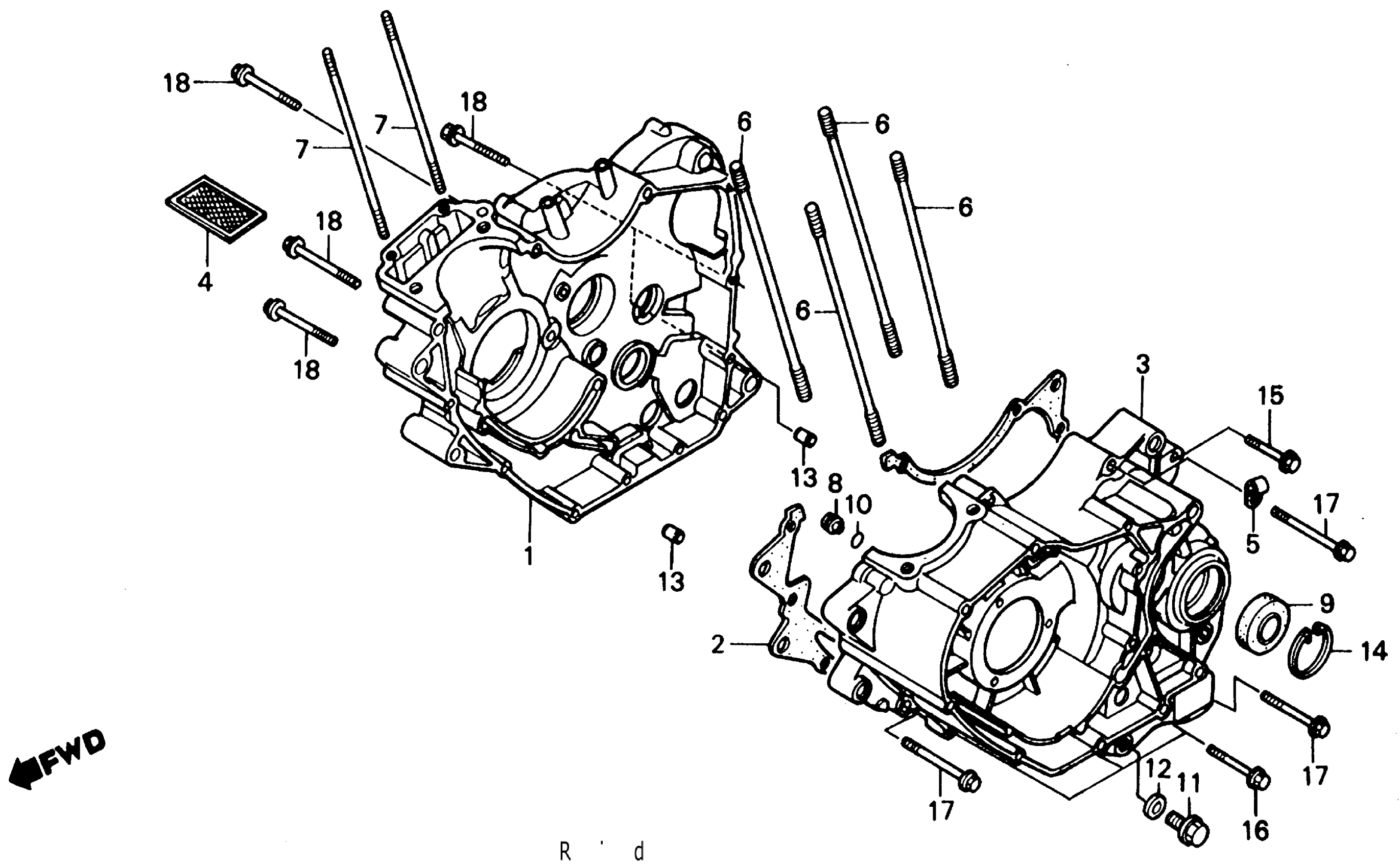

Honda TR200A (86) FATCAT, JPN, VIN# JH2TE110-GK500001 CRANKCASE Diagram

CRANKCASE, R.

11100-HB5-000

Unavailable

GASKET, CRANKCASE This part replaces 11191-HB5-000.

11191-HB5-306

Unavailable

CRANKCASE, L.

11200-HB7-000

Unavailable

SCREEN, OIL FILTER

15421-KK0-000

$7.70

BOLT A, CYLINDER STUD

90031-HB3-000

Unavailable

BOLT, STUD (6X105)

90034-HB3-000

Unavailable

ORIFICE (1.2MM)

90805-HB7-000

Unavailable

OIL SEAL (22X36X6) This part replaces 91206-HB3-000.

91206-HB3-003

$8.98

OIL SEAL (22X36X6)

91206-HB3-003

$8.98

O-RING (7.5X1.5)

91302-HB3-004

$2.18

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN A, DOWEL (8X14)

94301-08140

$2.25

CIRCLIP (INNER) (36MM)

94520-36000

$1.49

BOLT, FLANGE (6X32)

96300-06032-00

$1.49

BOLT, FLANGE (6X40)

96300-06040-07

$2.00

BOLT, FLANGE (6X50)

96300-06050-07

Unavailable

BOLT, FLANGE (6X65)

96300-06065-07

Unavailable
