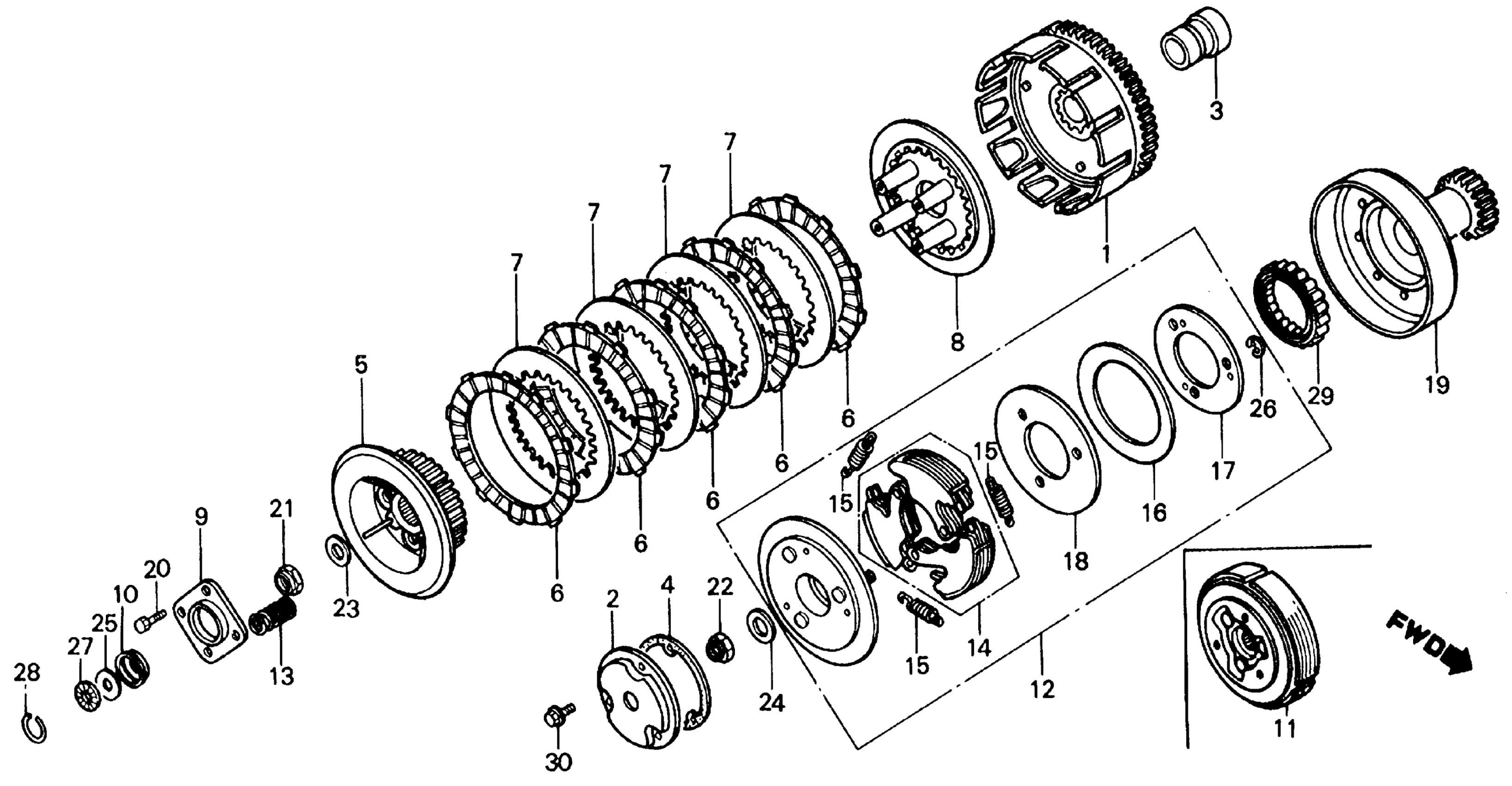

Honda TR200A (86) FATCAT, JPN, VIN# JH2TE110-GK500001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) This part replaces 22100-HB5-000.

22100-HB5-670

Unavailable

1

CLUTCH (OUTER) This part replaces 22100-HB5-010.

22100-HB5-670

Unavailable

1

CLUTCH (OUTER)

22100-HB5-670

Unavailable

2

COVER, OIL FILTER (NOT AVAILABLE)

22111-HB3-000

Unavailable

3

GUIDE, CLUTCH (OUTER) (NOT AVAILABLE)

22116-HB5-000

Unavailable

4

GASKET This part replaces 22119-HB3-000.

22119-HB3-306

Unavailable

5

CENTER, CLUTCH This part replaces 22121-HB3-000.

22121-HF1-670

Unavailable

5

CENTER, CLUTCH

22121-HF1-670

Unavailable

6

DISK, CLUTCH FRICTION This part replaces 22201-GF6-000.

22201-166-000

$16.07

6

DISK, CLUTCH FRICTION

22201-166-000

$16.07

7

PLATE, CLUTCH

22321-KE8-000

$11.67

8

PLATE, CLUTCH PRESSURE

22350-HB3-000

$37.98

9

PLATE, CLUTCH LIFTER (NOT AVAILABLE) This part replaces 22361-HB3-000.

22361-HB3-840

Unavailable

9

PLATE, CLUTCH LIFTER

22361-HB3-840

Unavailable

10

COLLAR, CLUTCH LIFTER

22362-KK0-000

Unavailable

11

CLUTCH ASSY. This part replaces 22400-HB7-000.

22400-HB3-325

Unavailable

13

SPRING, CLUTCH This part replaces 22401-HB3-010.

22401-KE7-000

$3.87

13

SPRING, CLUTCH

22401-KE7-000

$3.87

19

DRUM, CLUTCH

22500-HB3-000

Unavailable

20

BOLT, HEX. (6X28)

90001-HA5-000

$3.86

21

NUT, SPECIAL (16MM)

90201-HB3-000

$7.14

22

NUT, SPECIAL (18MM)

90235-HB3-000

$9.59

23

WASHER (16MM) This part replaces 90407-HB3-000.

90434-KR3-000

$2.85

23

WASHER (16MM)

90434-KR3-000

$2.85

24

WASHER (18MM)

90432-KE5-000

$4.65

25

WASHER, THRUST (12MM) (TOYO)

90452-147-003

$3.46

27

BEARING, NEEDLE (12MM)

91001-147-003

$11.56

27

BEARING, NEEDLE (12MM) (TOMUSON)

91001-147-006

$12.32

28

CLIP, NEEDLE THRUST BEARING (12MM)

91012-KF0-000

$2.83

29

CLUTCH, ONE-WAY

91101-958-003

$139.53

30

BOLT, FLANGE (6X8) This part replaces 96000-06008-00.

96001-06008-00

$0.94

30

BOLT, FLANGE (6X8)

96001-06008-00

$0.94
