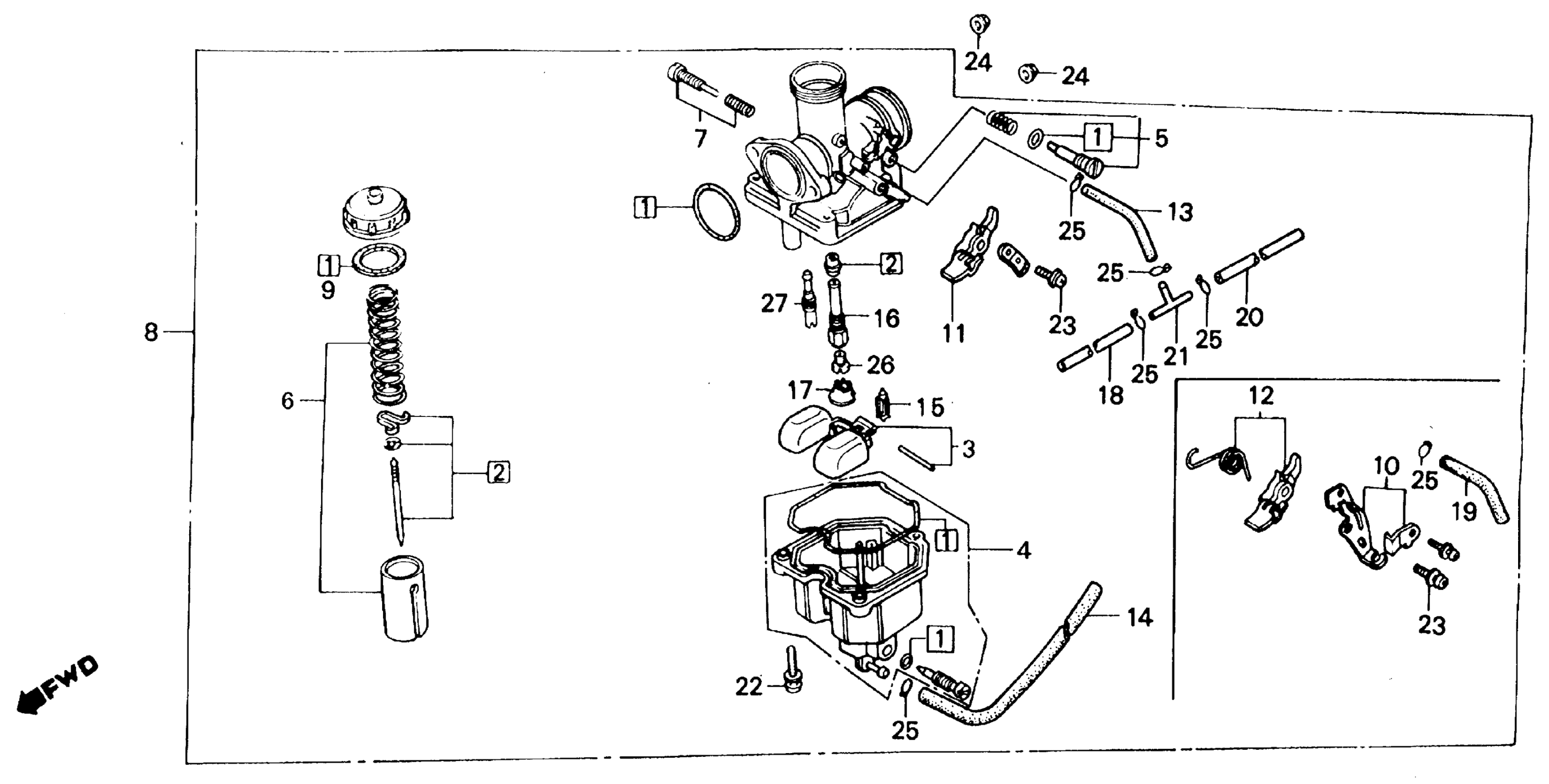

Honda TR200A (86) FATCAT, JPN, VIN# JH2TE110-GK500001 CARBURETOR Diagram

#

Description
Price

1

GASKET SET This part replaces 16010-324-680.

16010-HB5-305

$27.44

1

GASKET SET

16010-HB5-305

$27.44

2

NEEDLE SET, JET

16012-HB7-014

Unavailable

3

FLOAT SET

16013-439-921

$76.36

4

CHAMBER SET, FLOAT

16015-KA2-014

Unavailable

5

SCREW SET A

16016-402-004

$20.82

6

VALVE SET, THROTTLE

16022-HB7-004

Unavailable

7

SCREW SET B This part replaces 16028-402-004.

16028-KB1-D11

$5.98

8

CARBURETOR ASSY. This part replaces 16100-HB7-004.

16100-HB7-024

Unavailable

10

PLATE, STAY

16119-440-004

$9.75

12

LEVER, CHOKE

16135-KA8-671

Unavailable

14

TUBE, FUEL This part replaces 16143-413-751.

16199-KG4-405

$9.49

15

VALVE, FLOAT

16155-413-751

$32.50

16

HOLDER, NEEDLE JET

16165-473-004

Unavailable

17

HOLDER, JET

16168-382-014

$9.81

19

TUBE, FUEL This part replaces 16199-159-701.

16199-KG4-405

$9.49

22

SCREW-WASHER (4X16)

93892-04016-08

$1.49

23

SCREW-WASHER (5X12)

93892-05012-08

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

25

CLIP, TUBE (B6.5)

95002-02650

$1.49

26

JET, MAIN (#95)

99101-GHB-0950

$8.77

26

JET, MAIN (#95) This part replaces 99101-393-0950.

99101-GHB-0950

$8.77

27

JET, SLOW (#50) This part replaces 99103-437-0500.

99103-KPS-0500

$10.82
