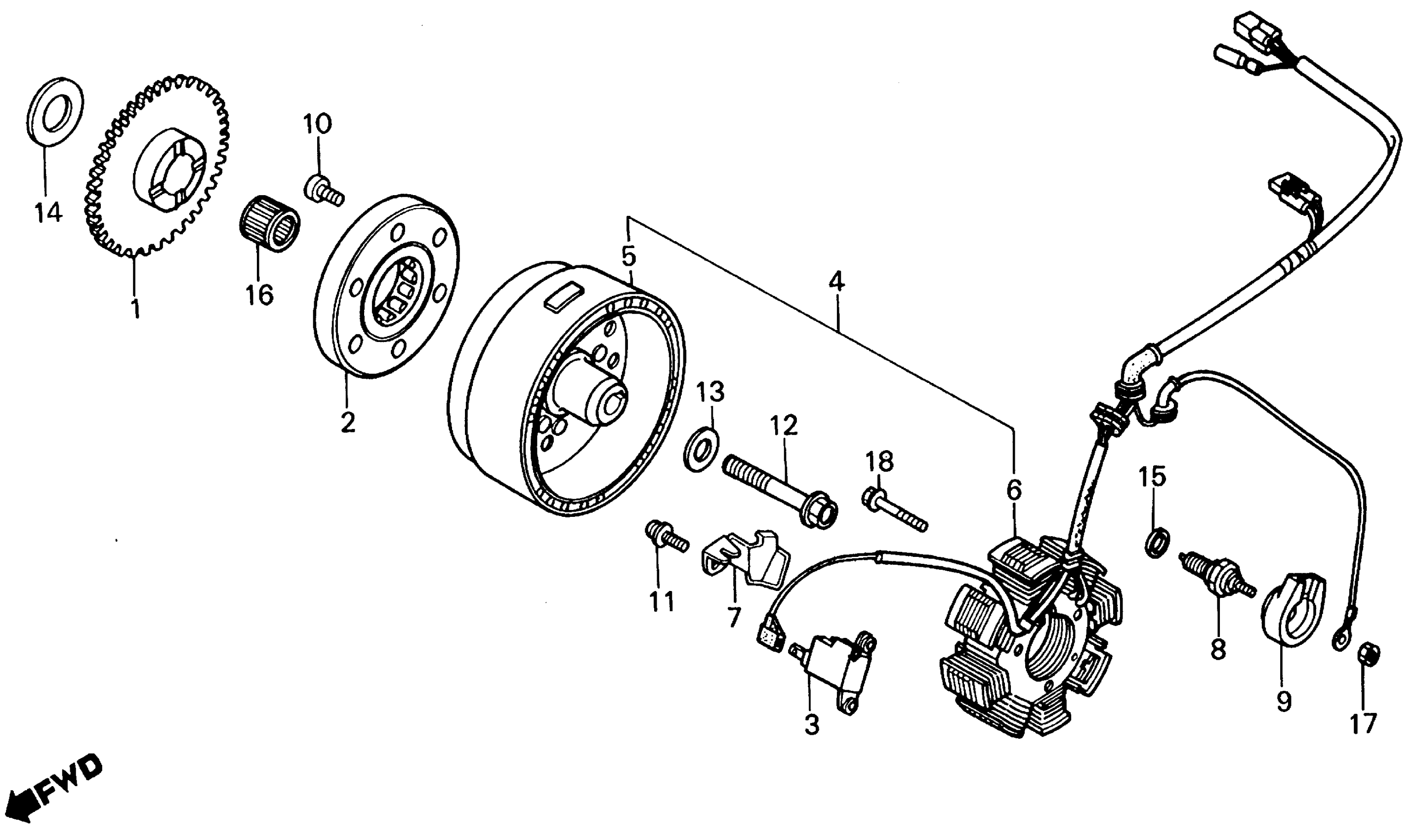

Honda TR200A (86) FATCAT, JPN, VIN# JH2TE110-GK500001 ALTERNATOR Diagram

#

Description
Price

1

GEAR, STARTING DRIVEN (48T)

28110-HB3-000

Unavailable

2

CLUTCH, STARTER (OUTER) (NOT AVAILABLE) This part replaces 28120-HB3-000.

28120-HB3-010

Unavailable

2

CLUTCH, STARTER (OUTER)

28120-HB3-010

Unavailable

3

GENERATOR ASSY., PULSE (TEC) This part replaces 30300-HA0-010.

30300-HA0-033

$36.58

3

GENERATOR ASSY., PULSE (TEC) This part replaces 30300-HA0-013.

30300-HA0-033

$36.58

3

GENERATOR ASSY., PULSE (TEC) This part replaces 30300-HA0-023.

30300-HA0-033

$36.58

3

GENERATOR, PULSE (TOYO)

30300-HA0-033

$36.58

4

ALTERNATOR ASSY., FLYWHEEL TYPE (DENSO)

31100-HB7-004

Unavailable

5

FLYWHEEL (DENSO)

31110-HB7-004

Unavailable

6

STATOR

31120-HB7-004

Unavailable

7

CLAMP, PULSER WIRE

32111-HB3-000

Unavailable

8

SWITCH ASSY., NEUTRAL (TOYO) This part replaces 35600-413-013.

35600-413-023

$18.69

8

SWITCH ASSY., NEUTRAL (TOYO)

35600-413-023

$18.69

9

GUIDE, NEUTRAL SWITCH

35601-HB7-000

Unavailable

10

BOLT, SOCKET (8X18)

90010-KM1-000

$4.78

11

BOLT, SOCKET (5X14)

90089-HB3-000

$3.01

12

BOLT, UBS (8X40)

90112-KA2-000

Unavailable

13

WASHER, THRUST (26MM) (NOT AVAILABLE)

90407-415-000

$5.13

14

WASHER, ROTOR SETTING

90426-437-000

$5.99

15

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.22

16

BEARING, NEEDLE (22X27X20) This part replaces 91007-HB3-003.

91007-HB3-013

$21.93

16

BEARING, NEEDLE (22X27X20) This part replaces 91007-HB3-004.

91007-HB3-013

$21.93

16

BEARING, NEEDLE (22X27X20)

91007-HB3-013

$21.93

16

BEARING, NEEDLE (22X27X20) This part replaces 91007-HB3-014.

91007-HB3-013

$21.93

17

NUT, HEX. (4MM)

94001-04390-0S

$0.80

18

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

Unavailable

18

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable
