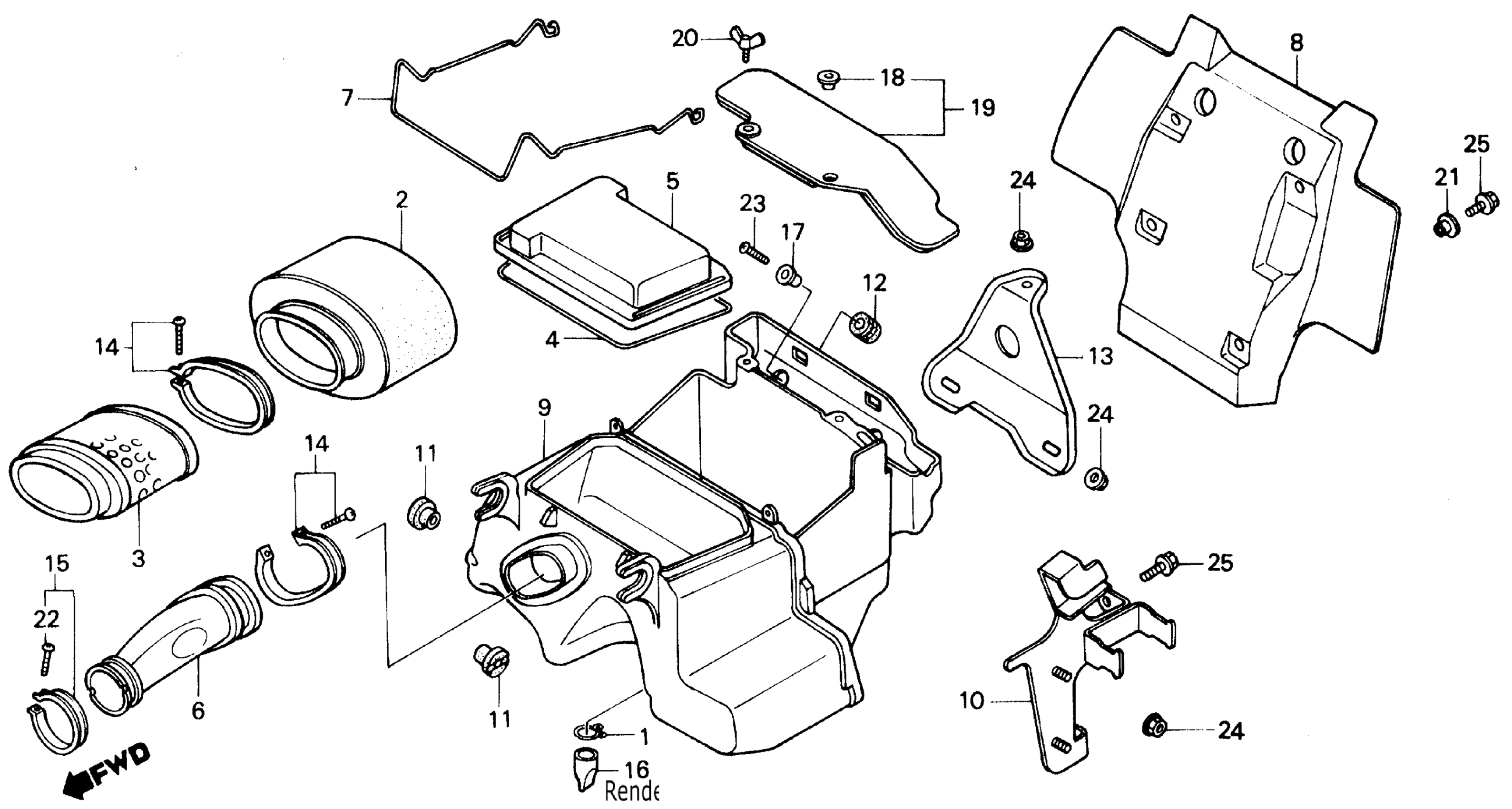

Honda TR200A (86) FATCAT, JPN, VIN# JH2TE110-GK500001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-500-010

$3.90

1

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

2

ELEMENT, AIR CLEANER This part replaces 17213-HB7-003.

17213-HB7-670

$17.40

2

ELEMENT, AIR CLEANER

17213-HB7-670

$17.40

3

BODY, AIR CLEANER ELEMENT (NOT AVAILABLE)

17214-HB7-003

Unavailable

4

SEAL, AIR CLEANER COVER

17219-HA2-405

$5.96

4

SEAL, AIR CLEANER COVER This part replaces 17219-HB7-000.

17219-HA2-405

$5.96

5

COVER, AIR CLEANER

17220-HB7-000

Unavailable

6

TUBE, AIR CLEANER CONNECTING (NOT AVAILABLE)

17222-HB7-000

Unavailable

7

SPRING, AIR CLEANER SETTING

17223-HB7-000

Unavailable

8

SPLASH GUARD

17228-HB7-000

Unavailable

9

HOUSING, AIR CLEANER (NOT AVAILABLE)

17230-HB7-000

Unavailable

10

PLATE, ELECTRIC SETTING

17233-HB7-000

Unavailable

11

RUBBER, FR. AIR CLEANER

17235-HB7-000

Unavailable

12

RUBBER, RR. AIR CLEANER

17236-HB7-000

Unavailable

13

STAY, RR. AIR CLEANER

17237-HB7-000

Unavailable

14

BAND, AIR CLEANER ELEMENT (NOT AVAILABLE)

17255-HB7-000

Unavailable

15

BAND, AIR CLEANER CONNECTING TUBE (46) This part replaces 17255-KF9-900.

95018-46250

$7.64

15

BAND, AIR CLEANER CONNECTING TUBE (46) This part replaces 90652-GHB-660.

95018-46250

$7.64

15

BAND, AIR CLEANER CONNECTING TUBE (46)

95018-46250

$7.64

16

TUBE, DRAIN

17358-964-000

Unavailable

17

COLLAR, RADIATOR SETTING (B)

19056-HA2-000

$6.82

18

COLLAR, FR. FENDER SETTING

61101-441-000

$4.13

19

LID, TOOL BOX This part replaces 89200-HB7-000.

89200-HB7-670

Unavailable

19

LID, TOOL BOX

89200-HB7-670

Unavailable

20

BOLT, WING This part replaces 90105-958-680.

90105-958-405

Unavailable

21

COLLAR (6X14X8X5)

90502-680-000

$6.81

22

SCREW, PAN (4X30)

93500-04030-0G

$3.69

23

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

23

SCREW, PAN (6X25)

93500-06025-0A

$1.49

24

NUT, FLANGE (6MM)

94050-06000

$1.49

25

BOLT, FLANGE (6X12) This part replaces 96000-06012-00.

96001-06012-00

$1.80

25

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
