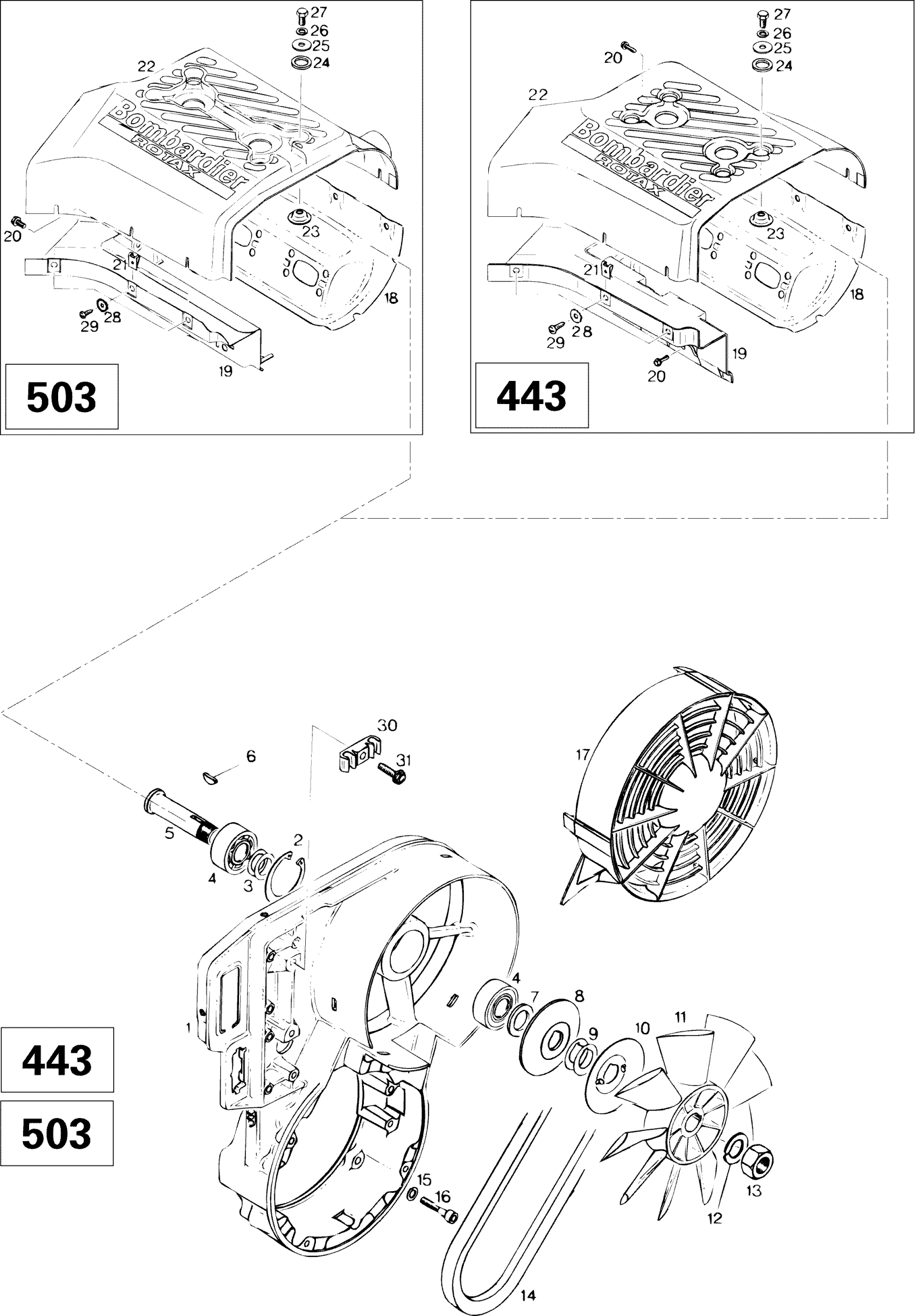

Ski-Doo Touring SLE, 1996 01- Cooling System (503) Diagram

Fan Housing

420912202

Unavailable

Lock Ring

420945880

$4.44

Shim

420244585

$1.90

Ball Bearing

420832161

$35.99

Fan Axle This part replaces 420937940.

420937941

$14.28

Woodruff Key

420246015

$3.17

Spacer Bushing

420827650

$13.16

Flange

420980496

$14.28

Shim 0.5 mm

420827080

$2.11

Shim 0.2 mm

420827082

$3.17

Protection Washer

420980523

$13.16

FAN - Call your local BRP dealership

420866292

$98.99

Lock Washer

420945756

$3.17

Nut M16 This part replaces 420942285.

420942289

$10.33

V-Belt

414630800

$24.99

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

Socket Head Screw M6 X 30

205063044

$1.69

FAN COVER - Call your local BRP dealership

420975695

Unavailable

Cylinder Cowl Exhaust Side

420810541

Unavailable

Cylinder Cowl (Carburator Side) | Formula Deluxe 500.

420810545

Unavailable

TAPTITE SCREW M6 X 12 - Call your local BRP dealership

420240385

Unavailable

Spring Nut

420842390

$1.90

Cylinder Cowl

420810602

Unavailable

Cup Washer

420827817

$14.28

Rubber Washer

420960865

$2.11

Washer This part replaces 420227935.

420227936

$3.38

Washer-Lock Din.128

420945832

$1.15

Hex. Screw M8 x 16

207181644

$1.15

WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270.

420845330

Unavailable

Tapping Screw M4.8 X 16

417300006

$0.72

CLAMP - Call your local BRP dealership

420860940

Unavailable

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09
