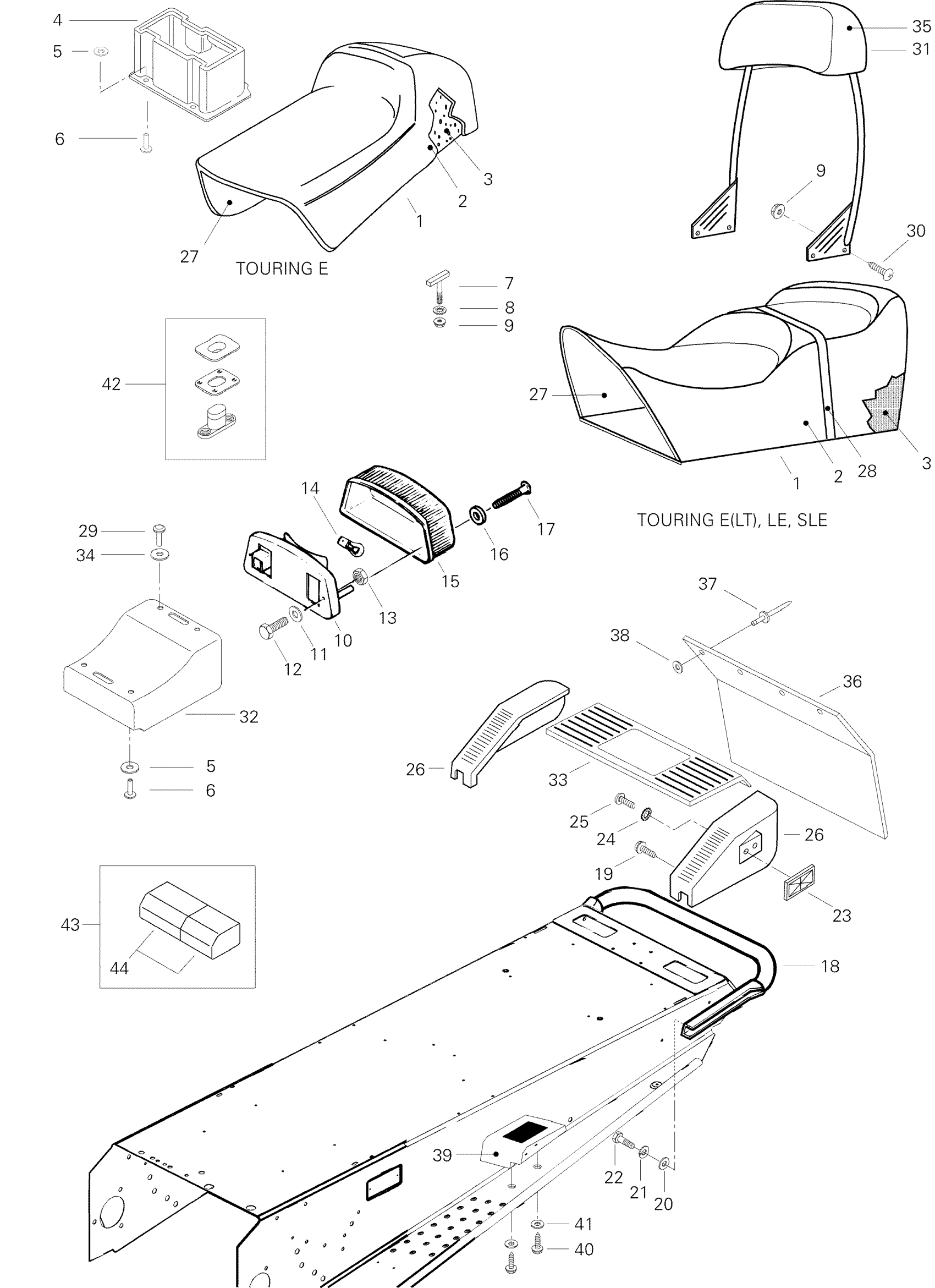

Ski-Doo Touring LE, 1996 09- Seat LE Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Cover (2 pass.)

414972202

Unavailable

3

Foam Seat (2 pass.) | Touring E LT (2). Touring LE. Touring SLE.

414873900

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

5

Flat Washer

517225900

$0.18

6

Pop Rivet 3/16"

390906800

$0.93

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

7

«T» Bolt M6

732601126

Unavailable

8

Push Nut

732610072

$2.19

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

11

Not Available As Spare Parts

XXX

Unavailable

12

Hex. Screw M5 X 30

207053044

$1.16

13

Hex. Flange Elastic Nut M5

233251414

$1.04

14

Bulb

520000758

$9.10

15

Lens

414513700

$28.99

16

Washer - Call your local BRP dealership

414516400

Unavailable

17

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

18

Rear Bumper

517243800

Unavailable

19

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

20

Flat Washer 8 mm

234081410

$0.83

21

Lock Washer 8 mm

234181401

$0.92

22

Hex. Screw M8 X 20

207182044

$0.74

23

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

24

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

25

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

26

RH Moulding Ass'y | Includes 82 - 85.

580642600

Unavailable

26

LH Moulding Ass'y

580642700

Unavailable

27

Sub-Seat

572059600

Unavailable

28

Belt-Seat | Touring E LT (2). Touring LE. Touring SLE.

414868300

Unavailable

29

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

30

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

31

Seat Backrest (Includes 68, 71)

414934100

Unavailable

32

Rear Trunk | GT 700.

572051200

Unavailable

33

Upper Moulding

572076800

Unavailable

34

Flat Washer M5

234051410

$0.53

35

Backrest Cover

414934103

Unavailable

36

Snow Guard

572076400

Unavailable

37

Pop Rivet 3/16"

293150100

$1.09

38

Flat Washer

517225900

$0.18

39

RH Rear Footrest | Europe

414975300

Unavailable

39

LH Rear Footrest | Europe

414975400

Unavailable

40

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

41

Flat Washer

224061121

$0.53

42

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

43

Tool Box Kit (With Tools) | Formula S.

529029800

Unavailable

44

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable
