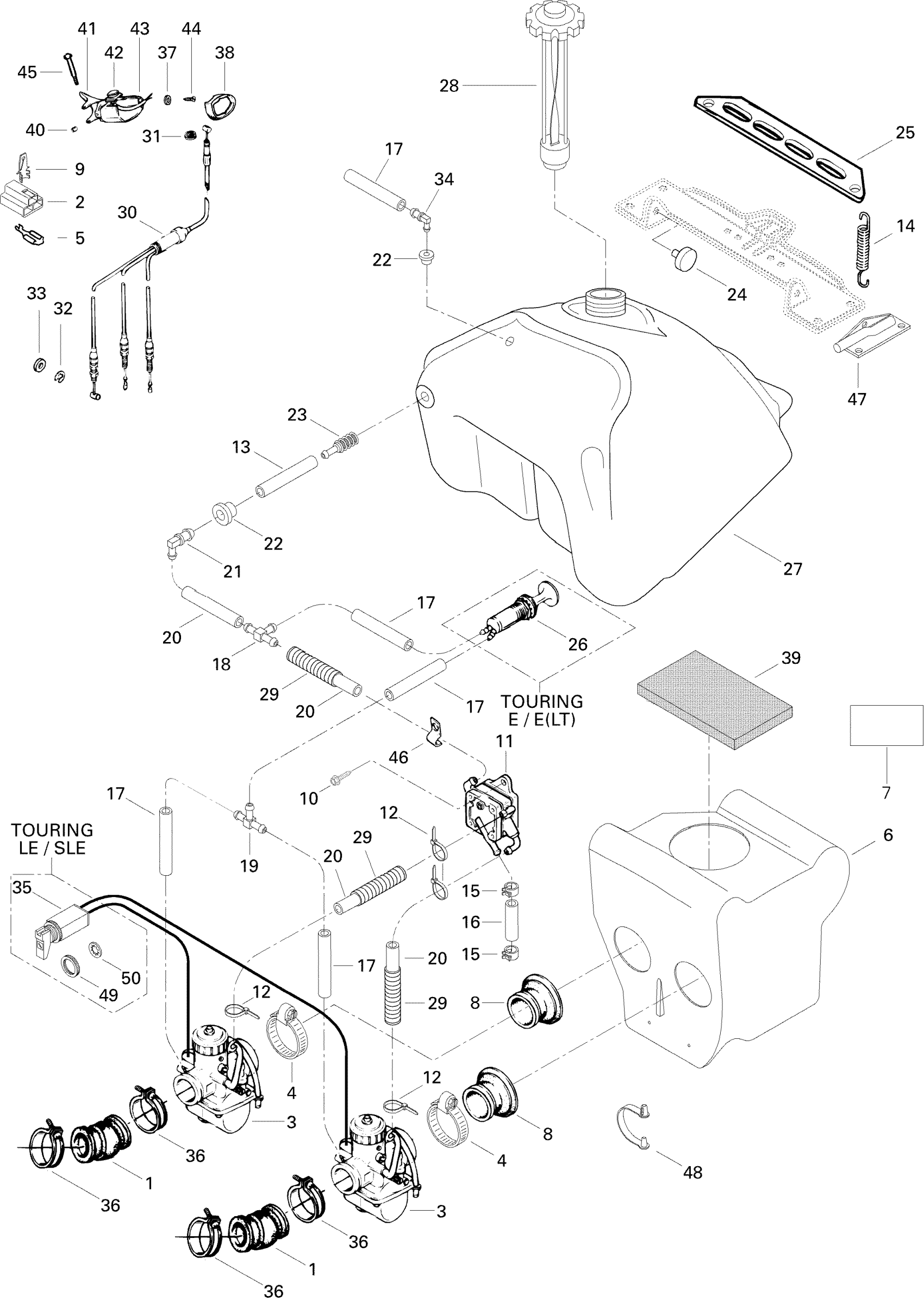

Ski-Doo Touring LE, 1996 02- Fuel System LE Diagram
#
Description
Price
1
Rubber Flange
570045000
Unavailable
2
Female Terminal Housing (3 circuits)
409008500
Unavailable
3
Carburetor VM 34 -467 | Includes 1 - 35. Touring LE.
403123500
Unavailable
4
TRIDON GEAR CLAMP - Call your local BRP dealership
408801600
Unavailable
5
Female Terminal PACKARD
561503200
Unavailable
6
Air Silencer (Incl. 4,7,8,39)
580638501
Unavailable
7
Warning Decal
414161500
Unavailable
8
Adaptor 34 mm
570043600
Unavailable
9
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
11
Fuel Pump
403801000
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
SPRING - Call your local BRP dealership
517182100
Unavailable
17
Not Available As Spare Parts
XXX
Unavailable
18
Not Available As Spare Parts
XXX
Unavailable
19
Not Available As Spare Parts
XXX
Unavailable
25
Fuel Tank Bracket
517249200
Unavailable
26
Not Available As Spare Parts
XXX
Unavailable
27
Fuel Tank
571008700
Unavailable
30
THROTTLE CABLE AND HOUSING - Call your local BRP dealership
414883100
Unavailable
35
CHOKE CABLE - Call your local BRP dealership
414967000
Unavailable
36
TRIDON GEAR CLAMP - Call your local BRP dealership
408801900
Unavailable
37
WASHER-FLAT - Call your local BRP dealership
391300700
Unavailable
38
THROTTLE COVER - Call your local BRP dealership
572044600
Unavailable
39
Air Filter
414922700
Unavailable
41
Heat Throttle Handle(34 mm)
572056500
Unavailable
43
Throttle Handle Housing | Skandic 600.
572028600
Unavailable
44
Screw
414473200
Unavailable
46
CLIP - Call your local BRP dealership
414351600
Unavailable
47
RH Tank Bracket
414266900
Unavailable
47
LH Tank Bracket
414267000
Unavailable
48
CABLE CLIP - Call your local BRP dealership
414379300
Unavailable
49
NUT-PLASTIC - Call your local BRP dealership
512059364
Unavailable
50
Lock Washer, Interior Teeth
394103300
Unavailable
