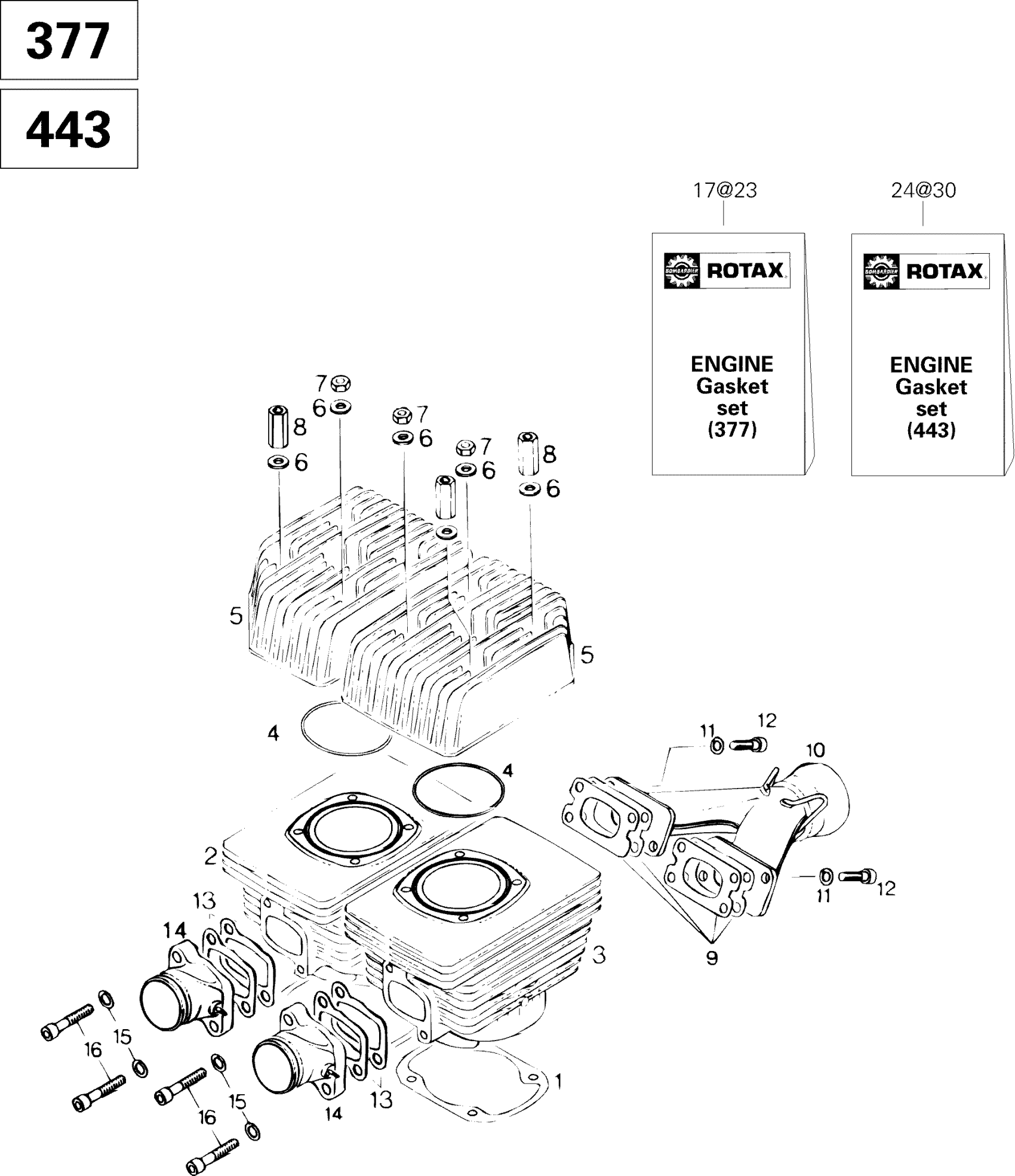

Ski-Doo Touring LE, 1996 01- Cylinder And Exhaust Manifold 443 Diagram

#

Description
Price

1

GASKET 0.4 - Call your local BRP dealership

420430351

Unavailable

2

Cylinder with Sleeve,P.T.O

420923346

Unavailable

3

Cylinder with Sleeve, MAG

420923356

Unavailable

4

O-Ring

420931380

$12.70

5

Cylinder Head

420923370

Unavailable

6

Flat Washer 8.4 mm

420250315

$1.15

7

Hex. Nut M8

232081414

$0.72

8

DISTANCE NUT M8 X 51 - Call your local BRP dealership

420842208

Unavailable

9

Gasket | Touring E. Touring E LT (2).

420850113

Unavailable

10

Exhaust Manifold Ass'y

420978437

Unavailable

11

Lock Washer 8 mm

234181401

$0.92

12

Socket Head Screw M8 X 30

205083044

$1.15

13

INTAKE GASKET 1.0 MM - Call your local BRP dealership

420831867

Unavailable

14

INTAKE SOCKET ASS?Y - Call your local BRP dealership

420867408

Unavailable

15

Washer-Lock Din.128

420945832

$1.15

16

Screw M8 X 35

420841591

$2.96

17

Not Available As Spare Parts

XXX

Unavailable

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

Not Available As Spare Parts

XXX

Unavailable

24

GASKET SET, ENGINE - Call your local BRP dealership

420994232

Unavailable

25

O-Ring, 64 mm X 2 mm

293300022

$12.72

26

Oil Seal This part replaces 290831952.

420831952

$18.01

27

GASKET 0.4 - Call your local BRP dealership

420430351

Unavailable

28

O-Ring

420931380

$12.70

29

GASKET - Call your local BRP dealership

420850114

Unavailable

30

INTAKE GASKET 1.0 MM - Call your local BRP dealership

420831867

Unavailable
