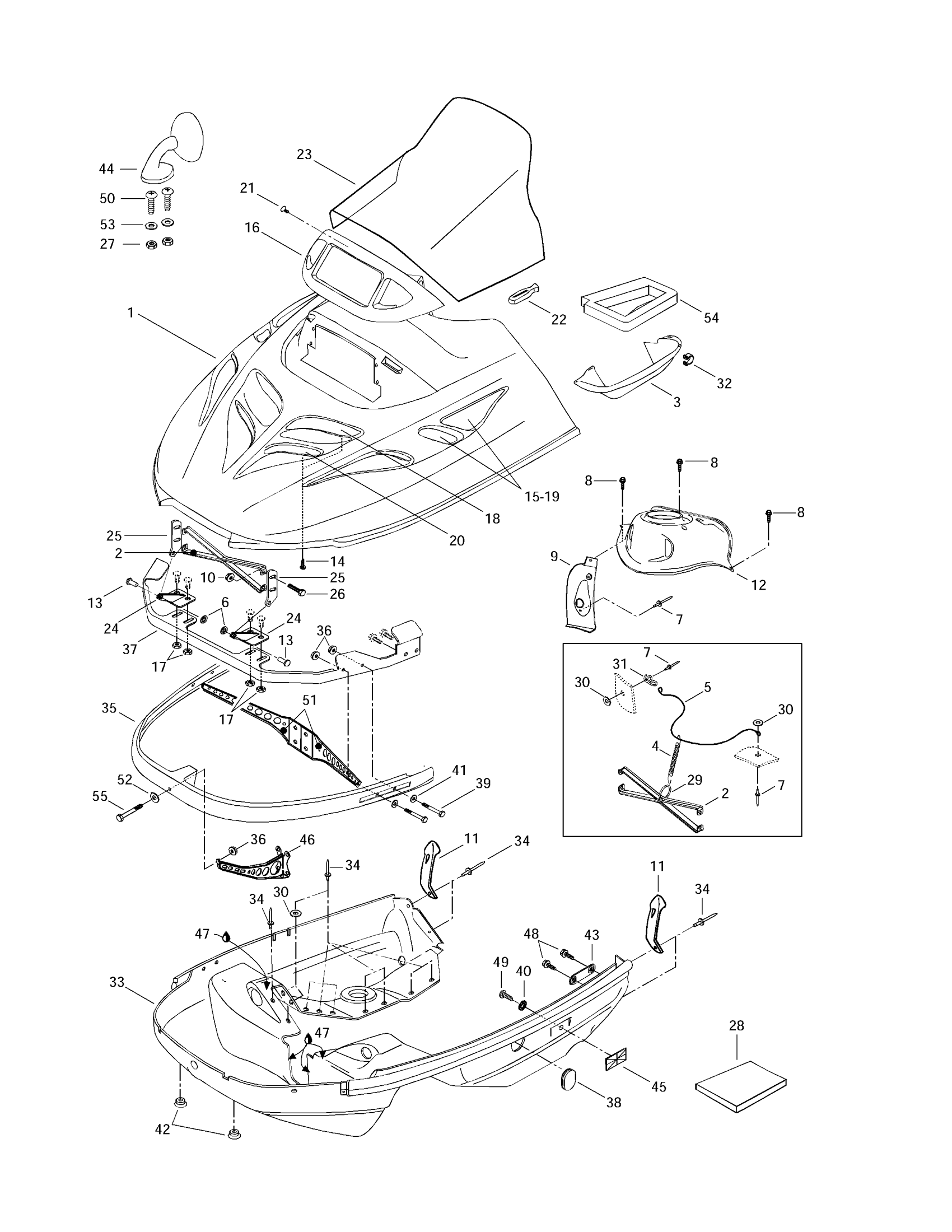

Ski-Doo Touring E LT, 1997 09- Cab, Console Diagram

#

Description
Price

1

Cab (Ocean Green) | Touring E. Touring E LT (2).

572077134

Unavailable

Cab (Ocean Green) | Touring LE.

572077135

Unavailable

Cab (Ocean Green) | Touring SLE.

572077130

Unavailable

2

Hood Reinforcement

517278100

Unavailable

3

Air Deflector | Formula S.

572071300

Unavailable

Air Deflector

572083800

Unavailable

4

Spring

415043300

Unavailable

5

Cab Retainer Cable

414212300

Unavailable

6

Push Nut

389804300

$0.53

7

Pop Rivet 3/16"

390406500

$0.88

8

Forming Screw M5 x 16

250000676

$1.01

9

Handle Dash | MX Z 380 F.

572052101

Unavailable

Dash-Handle | Formula DLX 500 LC.

572052100

Unavailable

10

Hex. Flange Elastic Nut M5

233251414

$1.04

11

Hood Latch

570027100

$13.49

12

Dash-Switch

572052702

Unavailable

13

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

14

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

15

Clip

414227300

$1.67

16

Lamp Moulding

572079200

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

RH Upper Grill | Formula S.

517277000

Unavailable

LH Upper Grill | Formula Deluxe 380.

517277100

Unavailable

19

Side Grill (Black)

517280200

Unavailable

20

RH Front Grill | Formula S.

517265800

Unavailable

LH Front Grill | Formula Deluxe 380.

517265900

Unavailable

21

Black, Dart

414644300

$0.98

22

Windshield Latch

570023800

$4.49

23

High Windshield

414887200

$154.49

24

Welded Lower Hinge

517289900

Unavailable

25

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

26

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

27

Elastic Stop Nut M4

232541414

$0.58

28

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

29

RING - Call your local BRP dealership

415058300

Unavailable

30

Washer

517124300

$0.19

31

Bracket

517262800

Unavailable

32

Clip

414479100

$1.90

33

Bottom Pan (black) | Formula 583.

572076203

Unavailable

34

Pop Rivet 3/16"

390906800

$0.93

35

Front Bumper

517265400

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Hinge Bracket

517285800

Unavailable

38

BOTTOM PAN CAP (BLACK) - Call your local BRP dealership | Formula Deluxe 380 F.

570053702

Unavailable

39

Hex. Screw M6 X 30

207063044

$1.26

40

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

41

Flat Washer

224061121

$0.53

42

CAP - Call your local BRP dealership

572072100

Unavailable

43

Side Bracket

517267100

Unavailable

44

RH MIRROR - Call your local BRP dealership

414971910

Unavailable

LH MIRROR - Call your local BRP dealership

414972010

Unavailable

45

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

46

Front Weld Support

517281100

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Hex. Flange Screw M6 X 16

210261650

$1.67

49

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

50

Machined Screw M4 x 16

222841665

Unavailable

51

LH Support

517287400

Unavailable

RHSupport

517287500

Unavailable

52

Flat Washer

224061201

$1.37

53

Washer

517124300

$0.19

54

Seal

415036500

Unavailable

55

Hex. Screw M6 X 40

207064044

$1.48
