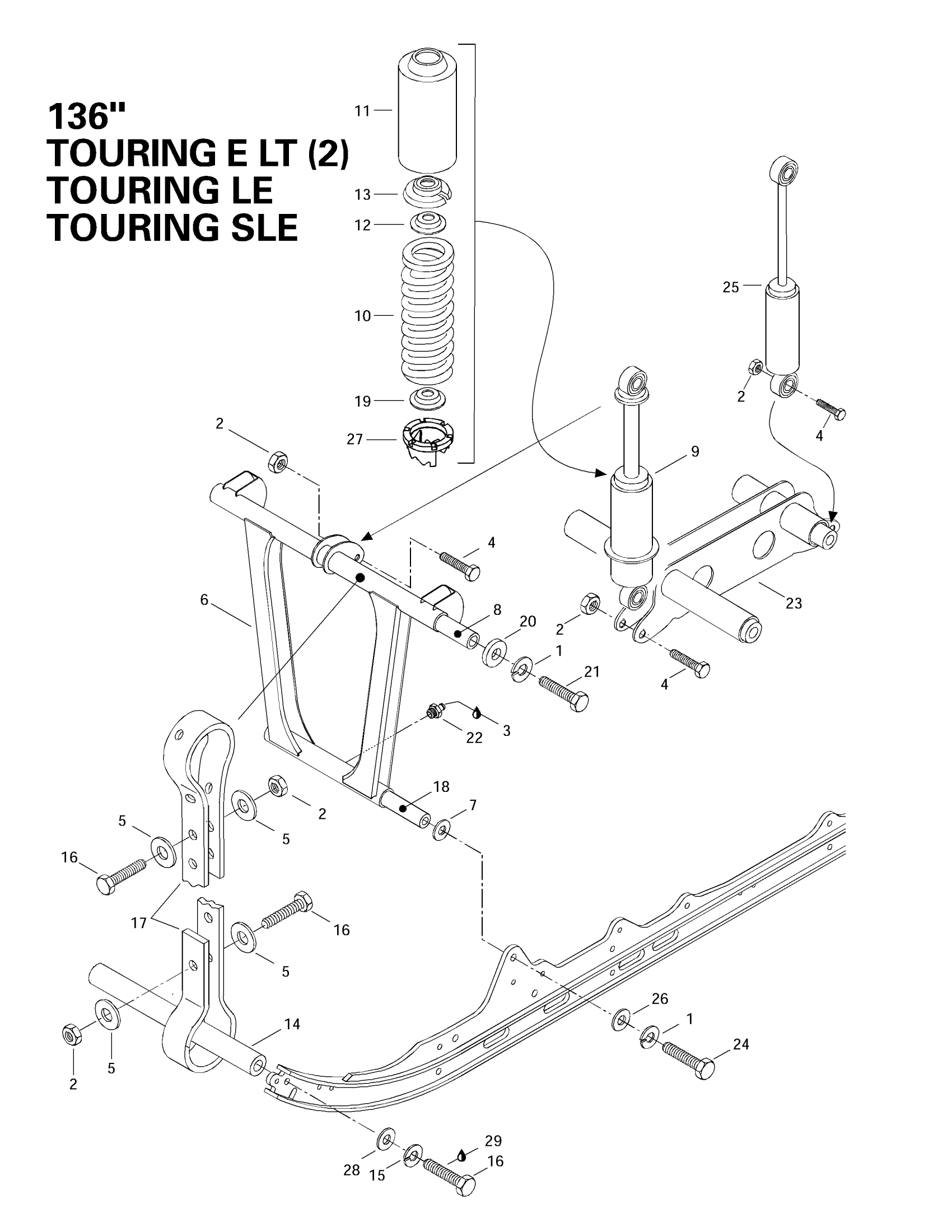

Ski-Doo Touring E LT, 1997 08- Front Arm, Rear Suspension 136” Diagram

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

Hex. Elastic Stop Nut M8

232581414

$0.56

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

Hex. Screw M8 X 40

207084044

$1.15

WASHER - Call your local BRP dealership

517078700

Unavailable

Welded Front Arm

503167400

Unavailable

Hard Washer | Formula DLX 500 LC.

503007900

Unavailable

SHAFT - Call your local BRP dealership

503190387

Unavailable

SHOCK - Call your local BRP dealership

414866400

Unavailable

Shock | Formula 500. Formula 500 Deluxe. Formula 583.

415033300

Unavailable

Center Spring

414974500

Unavailable

Center Spring | Touring SLE.

414976000

Unavailable

Protector

503193663

$37.99

Cap

706200785

$4.69

Spring Stopper

706200881

$12.99

Axle

503151600

$18.49

Lock Washer 8 mm

234181401

$0.92

Hex. Screw M8 X 30

207183044

$1.15

Stopper Strap | Formula Z 583. Formula 583 Deluxe.

570038800

Unavailable

Axle Wheel | Formula 500. Formula 500 Deluxe.

503152800

Unavailable

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

Cushion | Formula 500. Formula 500 Deluxe.

414894900

Unavailable

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

Grease Fitting

408200700

$3.49

Shock Support | Summit 700 HM.

503173300

Unavailable

Hex. Screw M10 X 35

207103544

$1.58

Shock

414927700

Unavailable

Shock | Grand Touring 500.

415040600

Unavailable

Flat Washer 10 mm

234001410

$1.26

Cam

503169000

Unavailable

Flat Washer 8 mm

234081410

$0.83

Loctite 271, 10 ml

293800005

$26.99
