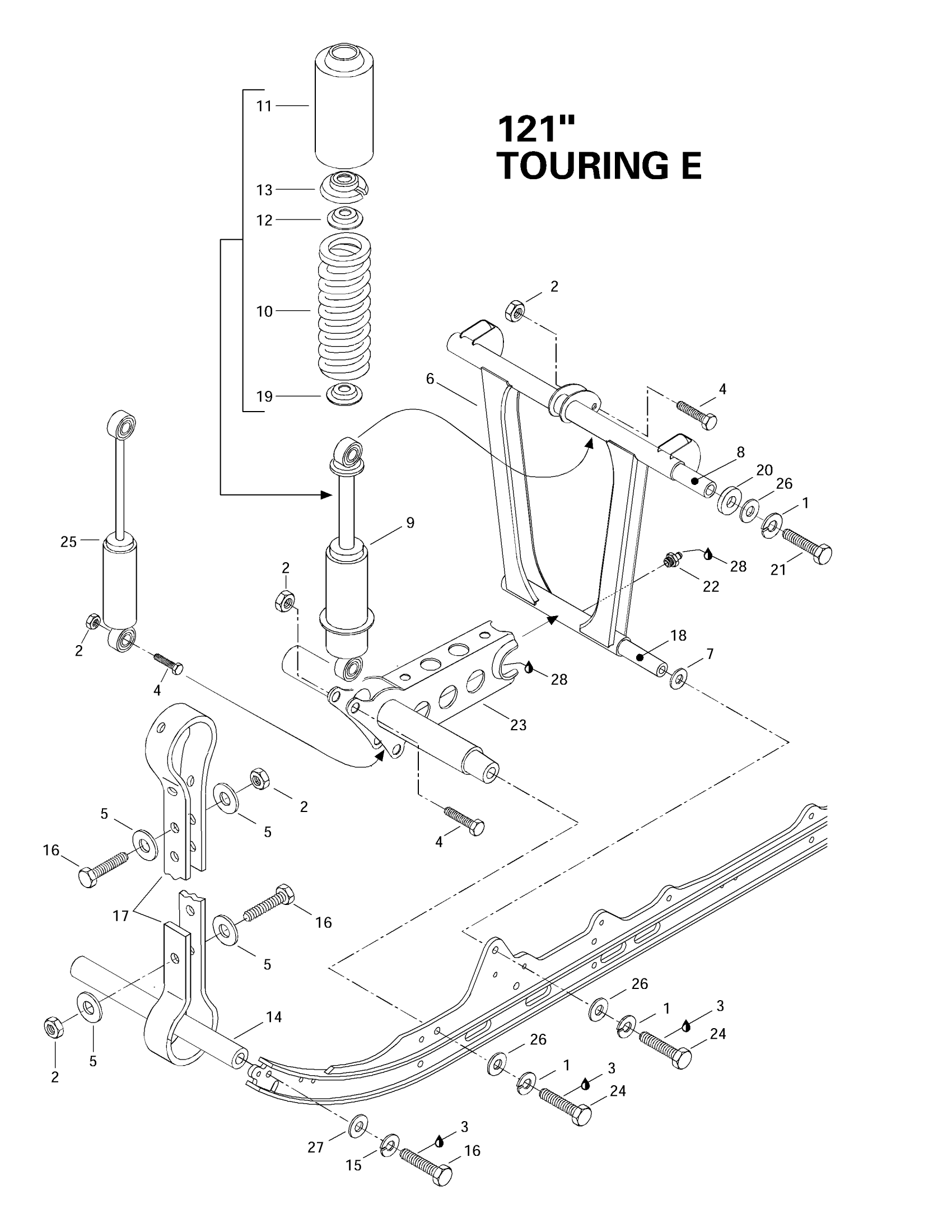

Ski-Doo Touring E LT, 1997 08- Front Arm, Rear Suspension 121” Diagram

#

Description
Price

1

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

2

Hex. Elastic Stop Nut M8

232581414

$0.56

3

Loctite 271, 10 ml

293800005

$26.99

4

Hex. Screw M8 X 40

207084044

$1.15

5

WASHER - Call your local BRP dealership

517078700

Unavailable

6

Welded Front Arm

503167400

Unavailable

7

Hard Washer | Formula DLX 500 LC.

503007900

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

SHOCK - Call your local BRP dealership

414866400

Unavailable

10

Center Spring

414974500

Unavailable

11

Protector

503193663

$37.99

12

Cap

706200785

$4.69

13

Spring Stopper

706200881

$12.99

14

Axle

503151600

$18.49

15

Lock Washer 8 mm

234181401

$0.92

16

Hex. Screw M8 X 30

207183044

$1.15

17

Stopper Strap | Formula Z 583. Formula 583 Deluxe.

570038800

Unavailable

18

Axle Wheel | Formula 500. Formula 500 Deluxe.

503152800

Unavailable

19

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

20

Cushion | Formula 500. Formula 500 Deluxe.

414894900

Unavailable

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

$3.49

23

Welded Shock Support

503167500

Unavailable

24

Hex. Screw M10 X 35

207103544

$1.58

25

SHOCK - Call your local BRP dealership

414866500

Unavailable

26

Flat Washer 10 mm

234001410

$1.26

27

Flat Washer 8 mm

234081410

$0.83

28

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable
