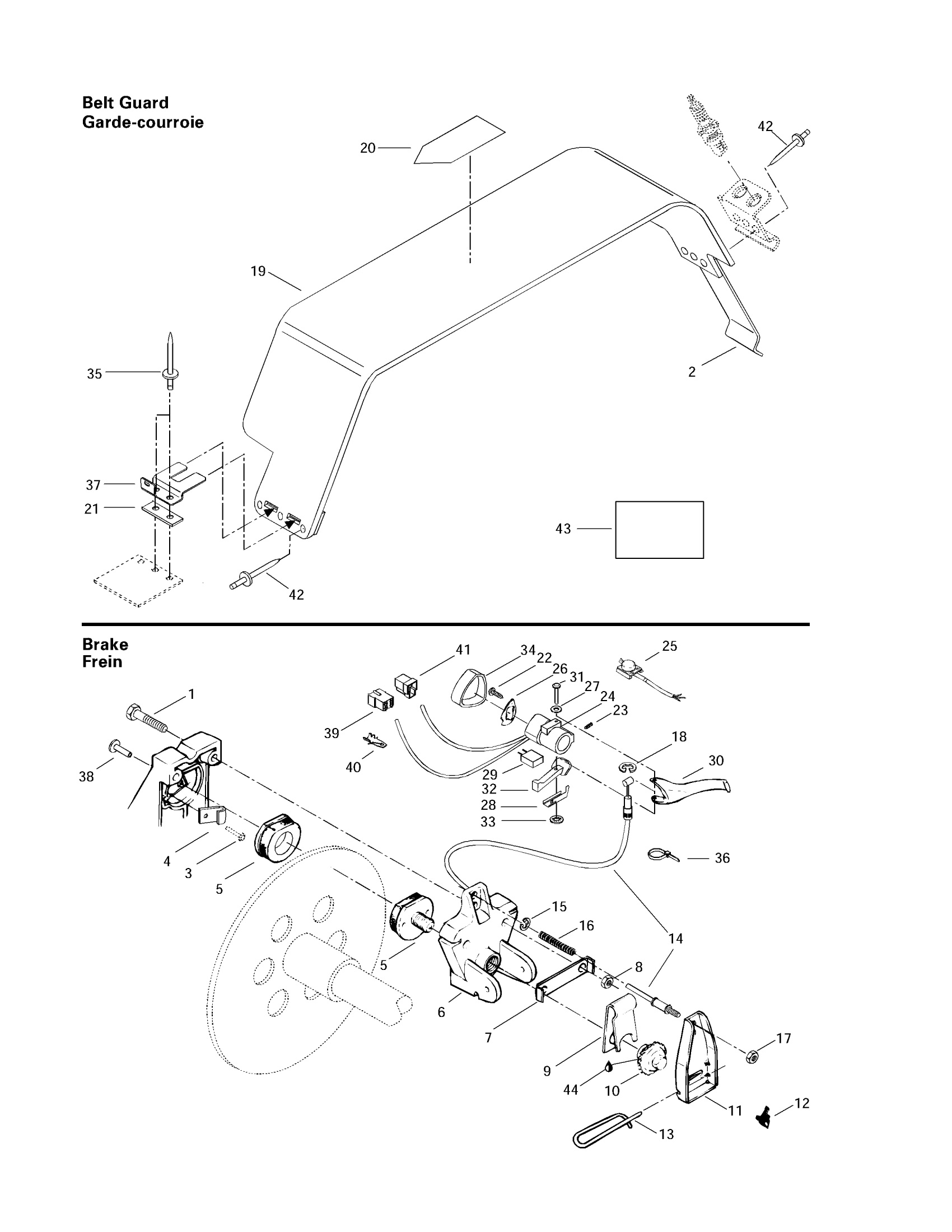

Ski-Doo Touring E LT, 1997 06- Brake And Belt Guard Diagram

#

Description
Price

1

Hex. Screw M8 X 55

207085544

$1.68

2

Tool Box Spring

414941800

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

WEAR INDICATOR - Call your local BRP dealership

507022600

Unavailable

5

Pad_Brake Kit - Call your local BRP dealership | Includes Items 19 to 20

860701700

Unavailable

6

Machined Caliper

507027600

Unavailable

7

LOCK-TAB - Call your local BRP dealership

507020400

Unavailable

8

Hex. Elastic Stop Nut M8

232581414

$0.56

9

RELEASE SPRING - Call your local BRP dealership

507020200

Unavailable

10

Wheel Ratchet

507019600

Unavailable

11

LEVER - Call your local BRP dealership

507021500

Unavailable

12

RATCHET SPRING - Call your local BRP dealership

507009400

Unavailable

13

Hair Pin

507027500

Unavailable

14

BRAKE CABLE - Call your local BRP dealership

414922500

Unavailable

15

Circlip

371901300

Unavailable

16

SPRING - Call your local BRP dealership

414460600

Unavailable

17

Elastic Stop Nut M6

232561414

$0.55

18

Circlip

414274500

$0.90

19

Belt Guard Ass'y | Includes 19 - 22.

517285400

Unavailable

20

Warning Decal

415028900

Unavailable

21

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

22

Screw

414473200

Unavailable

23

Socket Set Screw M8 X 10

414440800

$4.12

24

BRAKE HOUSING - Call your local BRP dealership

572086500

Unavailable

25

Dimmer Switch | Formula S.

415050000

Unavailable

26

LH Plate

572086600

Unavailable

27

WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership

414729400

Unavailable

28

Spring

517229300

Unavailable

29

Brake Light Switch | Formula S.

415049900

Unavailable

30

BRAKE HANDLE - Call your local BRP dealership

572025700

Unavailable

31

PIN - Call your local BRP dealership

517229400

Unavailable

32

Brake Lever

572025200

Unavailable

33

Push Nut

389804300

$0.53

34

BRAKE COVER - Call your local BRP dealership

572073800

Unavailable

35

Pop Rivet 3/16 | Grand Touring 600. Grand Touring 800.

390403600

Unavailable

36

Tie-Rap 180 mm

414115200

$0.11

37

Pulley Guard Bracket

518314200

Unavailable

38

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

39

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

40

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

41

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

42

Pop Rivet 3/16"

390402200

$0.35

43

Suspension Adjustment Decal

418001701

Unavailable

Suspension Adjustment Decal | 500 F.

418001702

Unavailable

44

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
