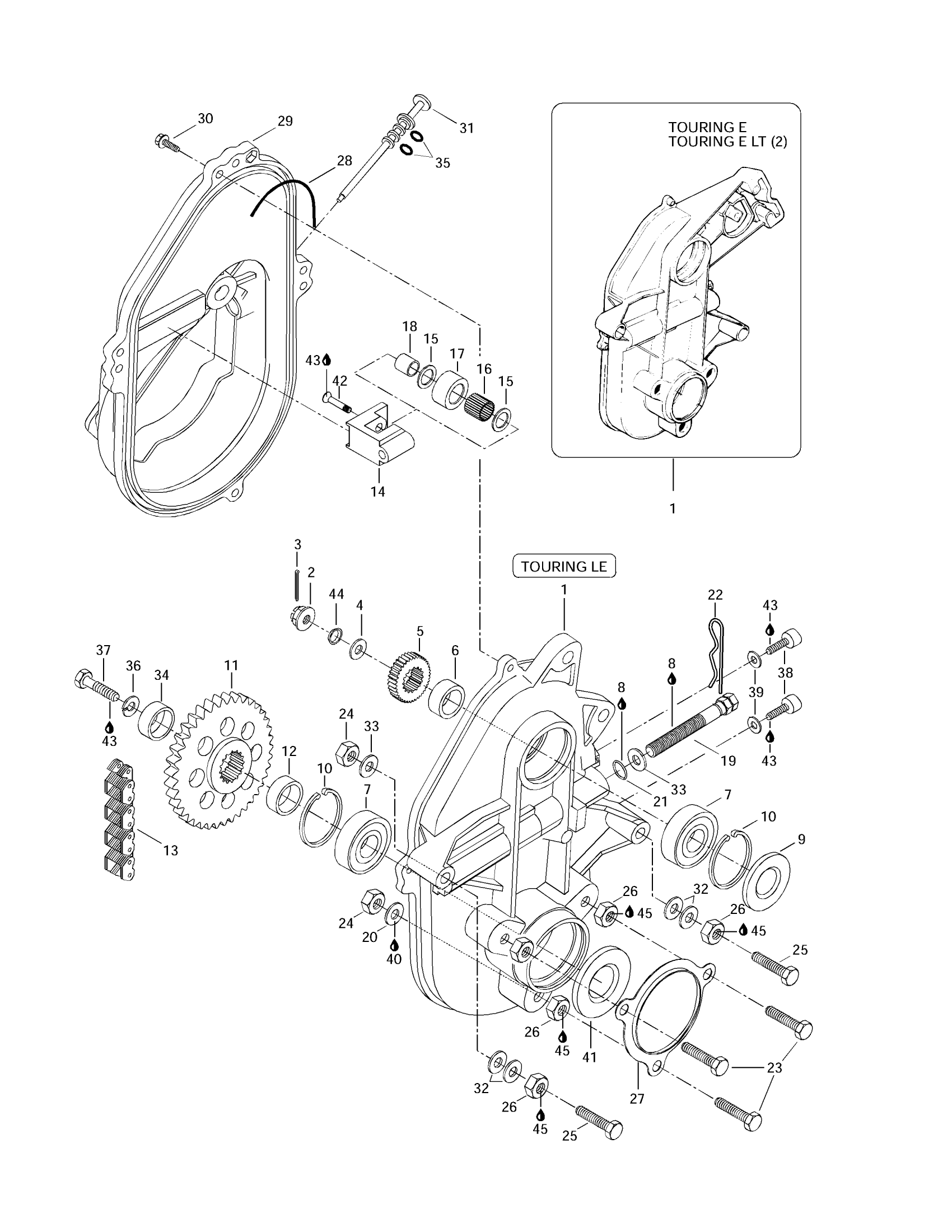

Ski-Doo Touring E LT, 1997 05- Chaincase Diagram
#
Description
Price
1
Machined Chaincase
504144600
Unavailable
Chaincase | Formula SL.
504144701
Unavailable
2
HEX. CASTELLATED NUT M16 - Call your local BRP dealership
232210414
Unavailable
3
Cotter Pin
371801300
Unavailable
4
Washer
504087100
Unavailable
5
Sprocket, 21 Teeth | Grand Touring 500.
504091200
Unavailable
6
Shim
504093400
Unavailable
8
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
9
OIL SEAL - Call your local BRP dealership
414882800
Unavailable
10
CIRCLIP - Call your local BRP dealership
371901700
Unavailable
11
Sprocket 44Th
504070900
Unavailable
12
Spacer
504146400
Unavailable
13
Drive Chain, (72 Links-Narrow) | Formula Deluxe 500.
412105500
Unavailable
14
MACHINED TENSIONER - Call your local BRP dealership
504081000
Unavailable
15
WASHER - Call your local BRP dealership
504080300
Unavailable
16
NEEDLE BEARING - Call your local BRP dealership
405403000
Unavailable
17
ROLLER - Call your local BRP dealership
414531300
Unavailable
18
SPACER - Call your local BRP dealership
504080200
Unavailable
19
Tensioner Adjustment Screw (Forging) | Formula 500. Formula Z. Formula 583.
732601267
Unavailable
20
Copper Washer
732900020
Unavailable
23
Hex. Screw M10 x 40 | Formula S.
732601112
Unavailable
25
Hex. Screw M10 x 70
732601111
Unavailable
26
Spacer
504083800
Unavailable
27
Protector
501022100
Unavailable
28
O-Ring
414362300
Unavailable
31
FILLER CAP ASS'Y - Call your local BRP dealership | Includes 22 to 23
572092700
Unavailable
32
WASHER - Call your local BRP dealership
504073700
Unavailable
34
CAP - Call your local BRP dealership
501026200
Unavailable
35
O-RING - Call your local BRP dealership
414969400
Unavailable
36
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
38
Socket Head Screw M8 x 10
732601132
Unavailable
42
SCREW - Call your local BRP dealership
732601144
Unavailable
44
Spring Washer
417000900
Unavailable
