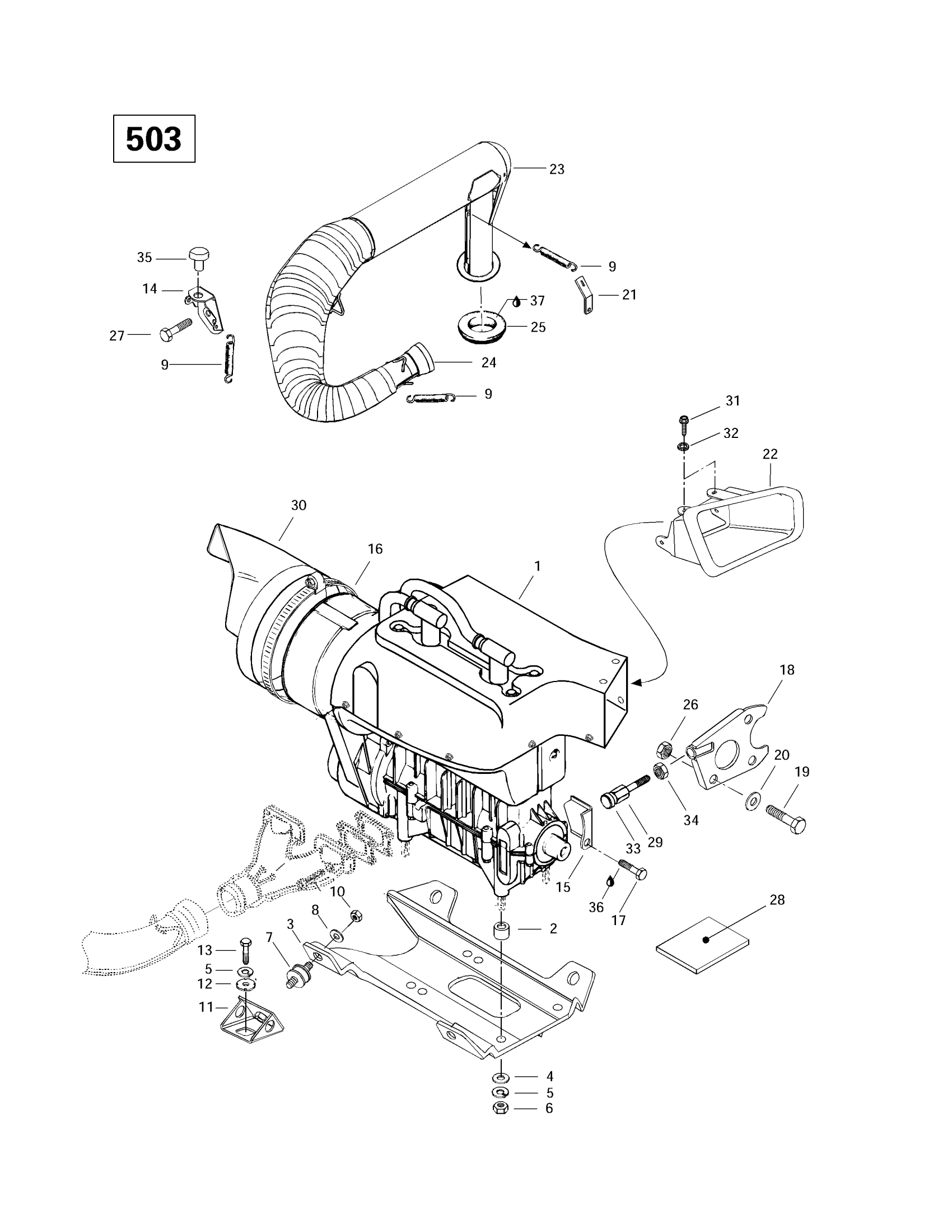

Ski-Doo Touring E LT, 1997 01- Engine Support And Muffler (503) Diagram
#
Description
Price
1
<<503>> Engine | Touring SLE.
400508100
Unavailable
2
SPACER - Call your local BRP dealership
512051800
Unavailable
3
Engine Support
512054500
Unavailable
5
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
7
RUBBER MOUNT - Call your local BRP dealership
570127700
Unavailable
11
Support | Formula S.
512055400
Unavailable
14
Muffler Support
514044100
Unavailable
15
Stopper Plate
512052200
Unavailable
16
Tridon Gear Clamp | MX Z 440 F.
408803700
Unavailable
18
Support Plate
517271800
Unavailable
22
Outlet Duct
572083900
Unavailable
23
Muffler-Pipe | MX Z 500 F.
514046700
Unavailable
24
Female Ball Joint | Formula S.
420973530
Unavailable
25
EXHAUST GROMMET - Call your local BRP dealership
570039000
Unavailable
27
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
28
Reflection Sheet | MX Z 440 F. MX Z 500 F.
414746400
Unavailable
29
Screw
517244200
Unavailable
30
Air Deflector | Formula SL.
572058500
Unavailable
31
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
32
WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270.
420845330
Unavailable
33
Rod retainer
570025100
Unavailable
34
HEX. NUT M12 - Call your local BRP dealership
232120414
Unavailable
