Description

Price

1

Battery | Includes 4 - 8.

410301100

Unavailable

2

Battery Cap

410300800

Unavailable

3

Hex. Screw M6 X 16

207161644

$0.74

4

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

5

Hex. Nut M6

232061414

$0.53

6

Battery Cover

570022000

Unavailable

7

Steel Strip

517227700

Unavailable

8

Battery Seat

517247500

Unavailable

9

Phillips Screw M5 X 20

208652044

$1.47

10

Current Wire

515156900

Unavailable

11

Ground Wire | Formula DLX 380. Formula DLX 500.

515157000

Unavailable

12

Protection Cap

570151000

$21.99

13

Hex. Flange Elastic Nut M5

233251414

$1.04

14

Pop Rivet 3/16"

390402200

$0.35

15

Battery Rod

517247600

Unavailable

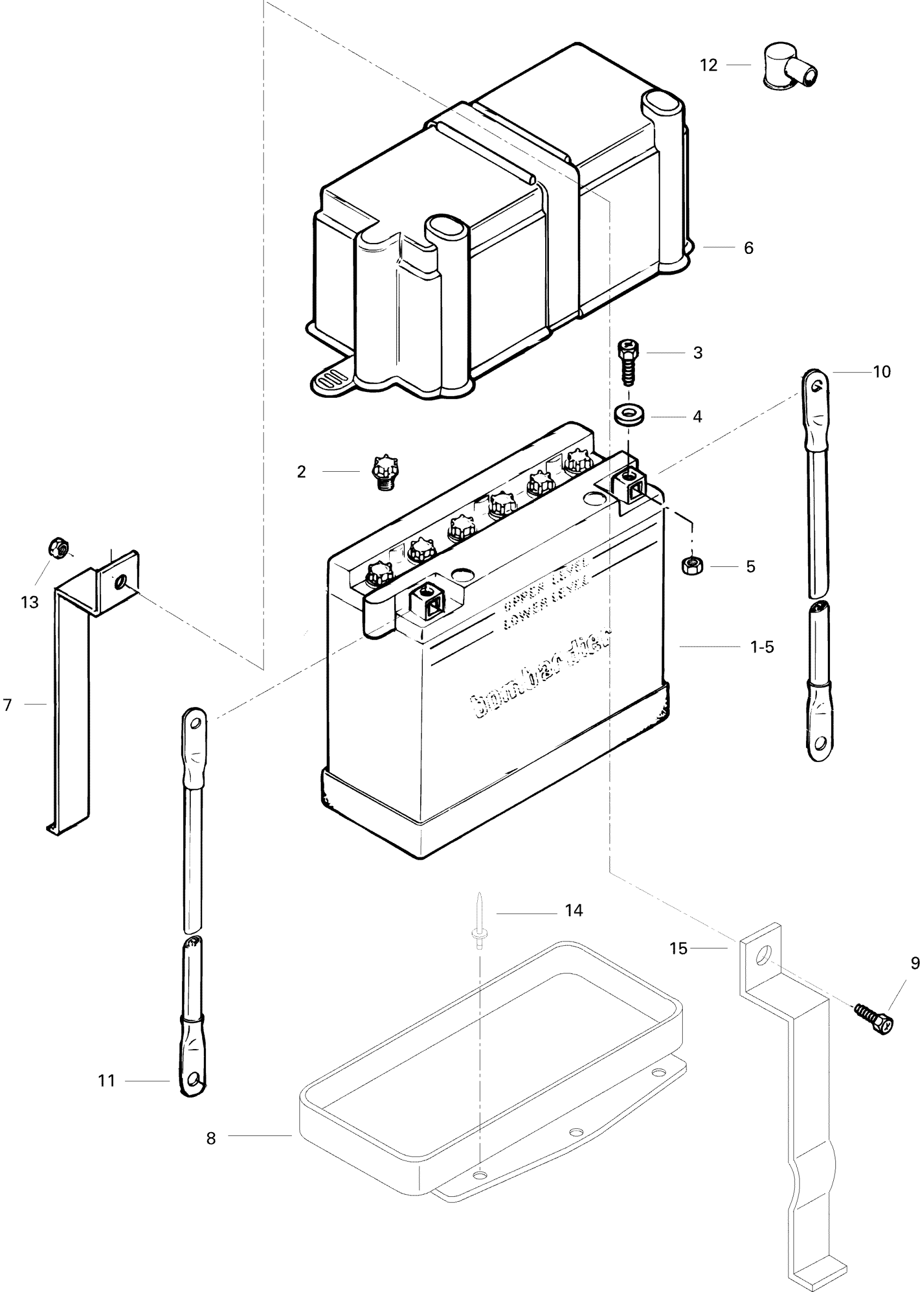

Ski-Doo Touring E LT, 1996 10- Battery Diagram

Battery | Includes 4 - 8.

Battery Cap

Hex. Screw M6 X 16

FLAT WASHER - Call your local BRP dealership

Hex. Nut M6

Battery Cover

Steel Strip

Battery Seat

Phillips Screw M5 X 20

Current Wire

Ground Wire | Formula DLX 380. Formula DLX 500.

Protection Cap

Hex. Flange Elastic Nut M5

Pop Rivet 3/16"

Battery Rod
