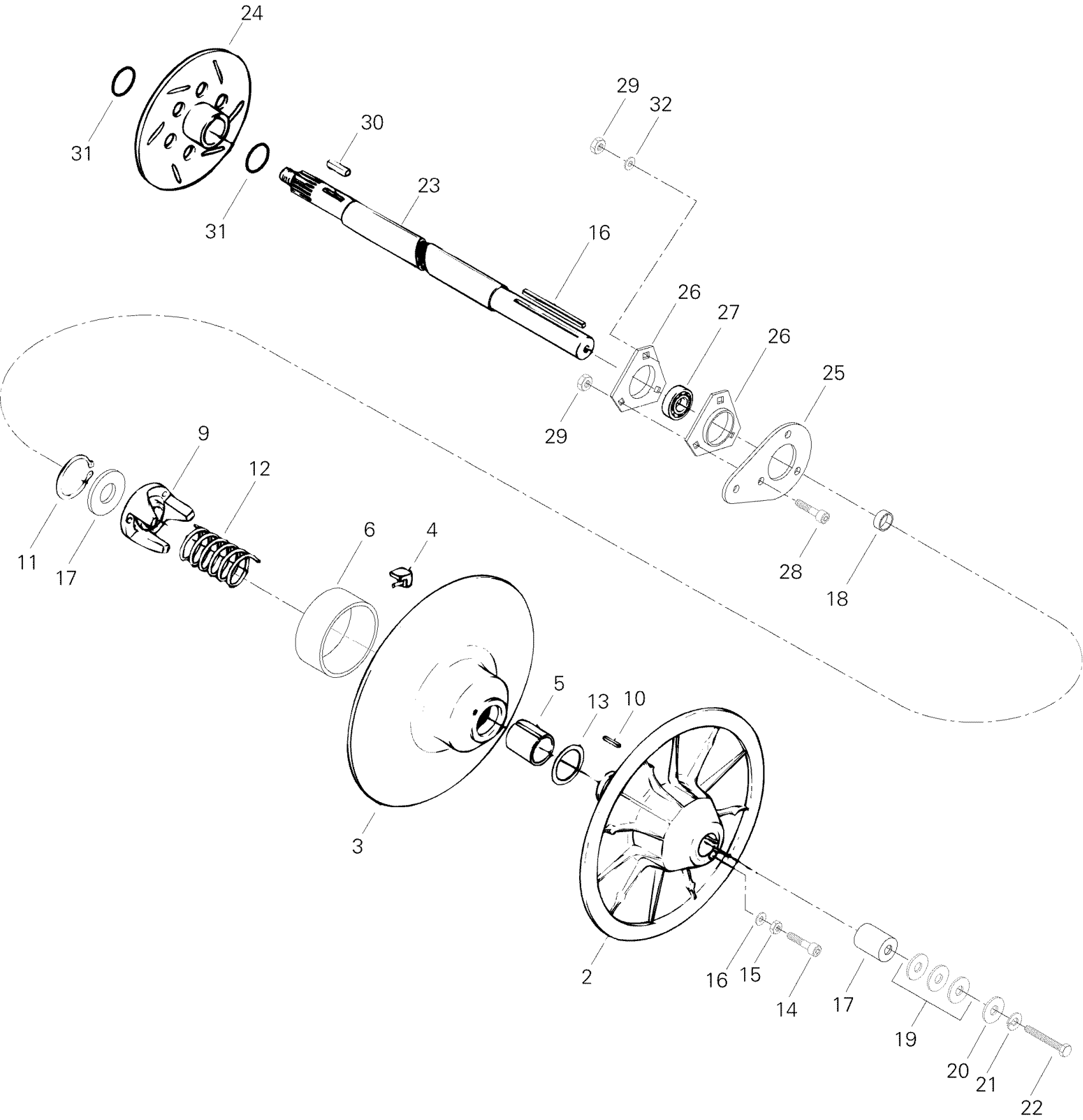

Ski-Doo Touring E LT, 1996 05- Driven Pulley Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Fixed Half Pulley
504095900
Unavailable
3
Sliding Pulley Ass’y | Includes 3 to 6
504141700
Unavailable
4
CAM SLIDER SHOE - Call your local BRP dealership
414918000
Unavailable
5
BUSHING - Call your local BRP dealership
415011200
Unavailable
6
Bushing Garlock Kit | Includes 26 - 28. Mach Z. Mach Z-LT.
414873100
Unavailable
7
WASHER - Call your local BRP dealership
420245370
Unavailable
8
Washer
504141800
Unavailable
9
Cam 44 Deg
504096000
Unavailable
10
Key
414820800
Unavailable
11
CIRCLIP - Call your local BRP dealership
371903100
Unavailable
12
RELEASE SPRING (ORANGE) - Call your local BRP dealership | Formula S.
414505800
Unavailable
13
Thrust Washer
504141900
Unavailable
14
Allen Screw M6 x 30
223563065
Unavailable
16
Key
414581300
Unavailable
17
Counter Shaft Extension
504058300
Unavailable
18
Shim
504128400
Unavailable
19
SHIM - Call your local BRP dealership
504108200
Unavailable
20
WASHER - Call your local BRP dealership
517078700
Unavailable
23
Countershaft | Formula S.
504098400
Unavailable
24
WELDED DISK - Call your local BRP dealership
507029000
Unavailable
25
Spacer
501022300
Unavailable
26
FLANGE - Call your local BRP dealership
501025000
Unavailable
27
BALL BEARING - Call your local BRP dealership This part replaces 504152072.
415129552
Unavailable
28
Allen Screw M8 x 25
732601156
Unavailable
30
KEY - Call your local BRP dealership
507021300
Unavailable
31
O'RING - Call your local BRP dealership
414928900
Unavailable
