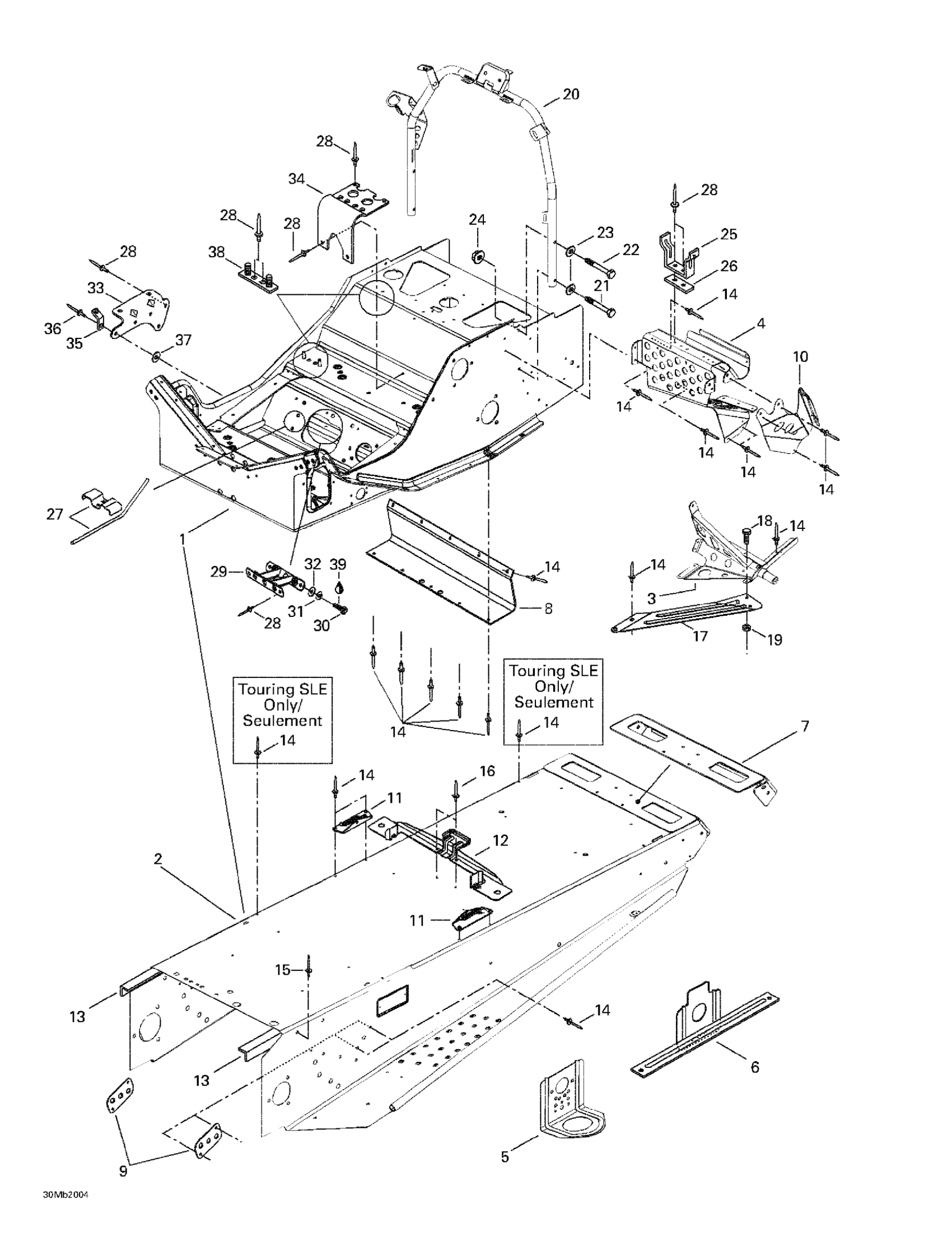

Ski-Doo Touring E, 2000 09- Frame And Accessories Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 18.

518322088

Unavailable

2

Forming Frame (Tunnel)

518322114

Unavailable

3

RH Footrest Support

518320506

Unavailable

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

4

RH Front Footrest

518318933

Unavailable

LH Front Footrest

518318934

Unavailable

5

Front Bracket

518321495

Unavailable

6

RH Rear Bracket | Touring 380 F.

518316716

Unavailable

RH Rear Bracket | Touring 500 F.

518321496

Unavailable

LH Rear Bracket | Touring 380 F.

518316715

Unavailable

LH Rear Bracket | Touring 500 F.

518321497

Unavailable

7

Rear Cap

518321302

Unavailable

Rear Cap

518321619

Unavailable

8

Deflector

518321867

Unavailable

9

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

10

Upper Plate R.H

518308715

Unavailable

Upper Plate L.H

518308714

Unavailable

11

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

12

Seat Bracket

518317506

Unavailable

13

LH Frame Reinforcement

518316768

Unavailable

RH Frame Reinforcement

518316769

Unavailable

14

Pop Rivet 3/16"

390402200

$0.35

15

Pop Rivet 3/16"

390402300

$0.75

16

Pop Rivet 3/16"

390402400

$0.35

17

RH Reinforcement Plate

518321958

Unavailable

LH Reinforcement. Plate

518321959

Unavailable

18

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

19

Hex. Flange Elastic Nut M5

233251414

$1.04

20

Handle Steering Support

518321428

Unavailable

21

Hex. Screw M6 X 40

207064044

$1.48

22

Hex. Flange Screw M6 X 35

207063544

$1.37

23

Flat Washer 6 mm

234061410

$1.36

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

25

Belt Guard Bracket

518202100

$17.49

26

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

27

Guide Rope

517276100

Unavailable

28

Pop Rivet 3/16"

390402200

$0.35

29

Reinf. Plate

518304741

Unavailable

30

Hex. Screw M8 X 20

207182044

$0.74

31

Lock Washer 8 mm

234181401

$0.92

32

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

33

Muffler Support

518316704

Unavailable

Muffler Support | Formula DLX 500 F.

518206300

Unavailable

34

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

35

Spring Bracket

514054522

$8.45

36

Pop Rivet 3/16"

390402300

$0.75

37

Flat Washer

517225900

$0.18

38

Support Plate

518315300

Unavailable

39

Loctite 271, 10 ml

293800005

$26.99
