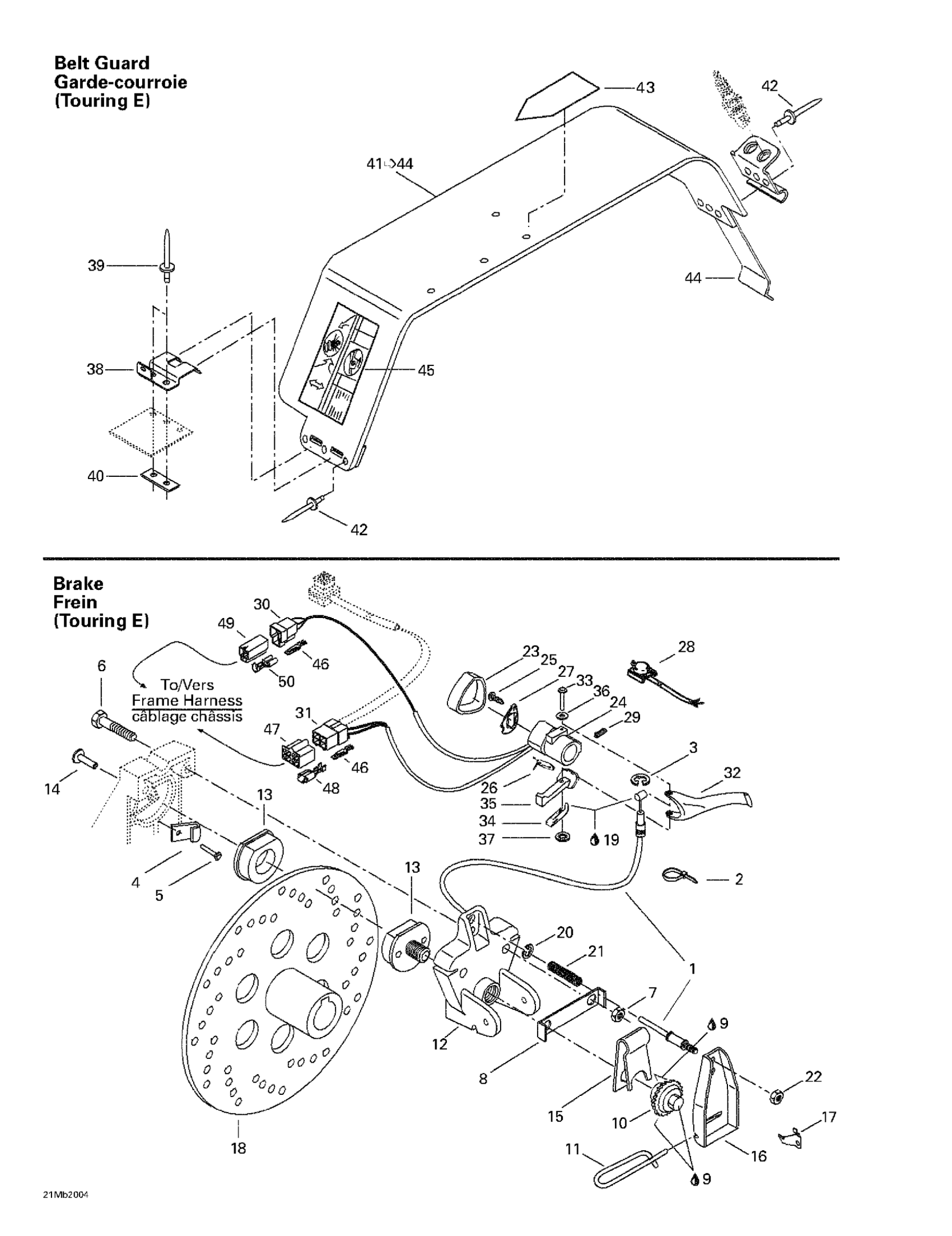

Ski-Doo Touring E, 2000 06- Brake And Belt Guard Diagram

#

Description
Price

1

BRAKE CABLE - Call your local BRP dealership

414922500

Unavailable

2

Tie-Rap 180 mm

414115200

$0.11

Tie-Rap 180 mm

414115200

$0.11

3

Circlip

414274500

$0.90

4

WEAR INDICATOR - Call your local BRP dealership

507022600

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Hex. Screw M8 X 55

207085544

$1.68

7

Hex. Elastic Stop Nut M8

232581414

$0.56

8

LOCK-TAB - Call your local BRP dealership

507020400

Unavailable

9

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

10

Wheel Ratchet

507019600

Unavailable

11

Hair Pin

507027500

Unavailable

12

Machined Caliper

507027600

Unavailable

13

Pad_Brake Kit - Call your local BRP dealership | Includes Items 19 to 20

860701700

Unavailable

14

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

15

RELEASE SPRING - Call your local BRP dealership

507020200

Unavailable

16

LEVER - Call your local BRP dealership

507021500

Unavailable

17

RATCHET SPRING - Call your local BRP dealership

507009400

Unavailable

18

WELDED DISK - Call your local BRP dealership

507029000

Unavailable

19

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

20

Circlip

371901300

Unavailable

21

SPRING - Call your local BRP dealership

414460600

Unavailable

22

Elastic Stop Nut M6

232561414

$0.55

23

BRAKE COVER - Call your local BRP dealership

572073800

Unavailable

24

BRAKE HOUSING - Call your local BRP dealership

572086500

Unavailable

25

Screw

414473200

Unavailable

26

Brake Switch

415085700

Unavailable

27

LH Plate

572086600

Unavailable

28

Dimmer Switch

415085800

Unavailable

29

Socket Set Screw M8 X 10

414440800

$4.12

30

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

31

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

32

BRAKE HANDLE - Call your local BRP dealership

572025700

Unavailable

33

PIN - Call your local BRP dealership

517229400

Unavailable

34

Spring

517229300

Unavailable

35

Brake Lever

572025200

Unavailable

36

WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership

414729400

Unavailable

37

Push Nut

389804300

$0.53

38

Pulley Guard Bracket

518314200

Unavailable

39

Pop Rivet 3/16"

390402200

$0.35

40

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

41

Belt Guard Ass'y | Includes 4 - 7.

417300012

Unavailable

42

Pop Rivet 3/16"

390402200

$0.35

43

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

44

Tool Box Spring

414941800

Unavailable

45

Suspension Adjustment Decal | 500 F.

418001702

Unavailable

46

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

47

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

48

Female Terminal

516503200

Unavailable

49

Female Housing

409204300

Unavailable

50

Female Terminal

561503100

$2.41
