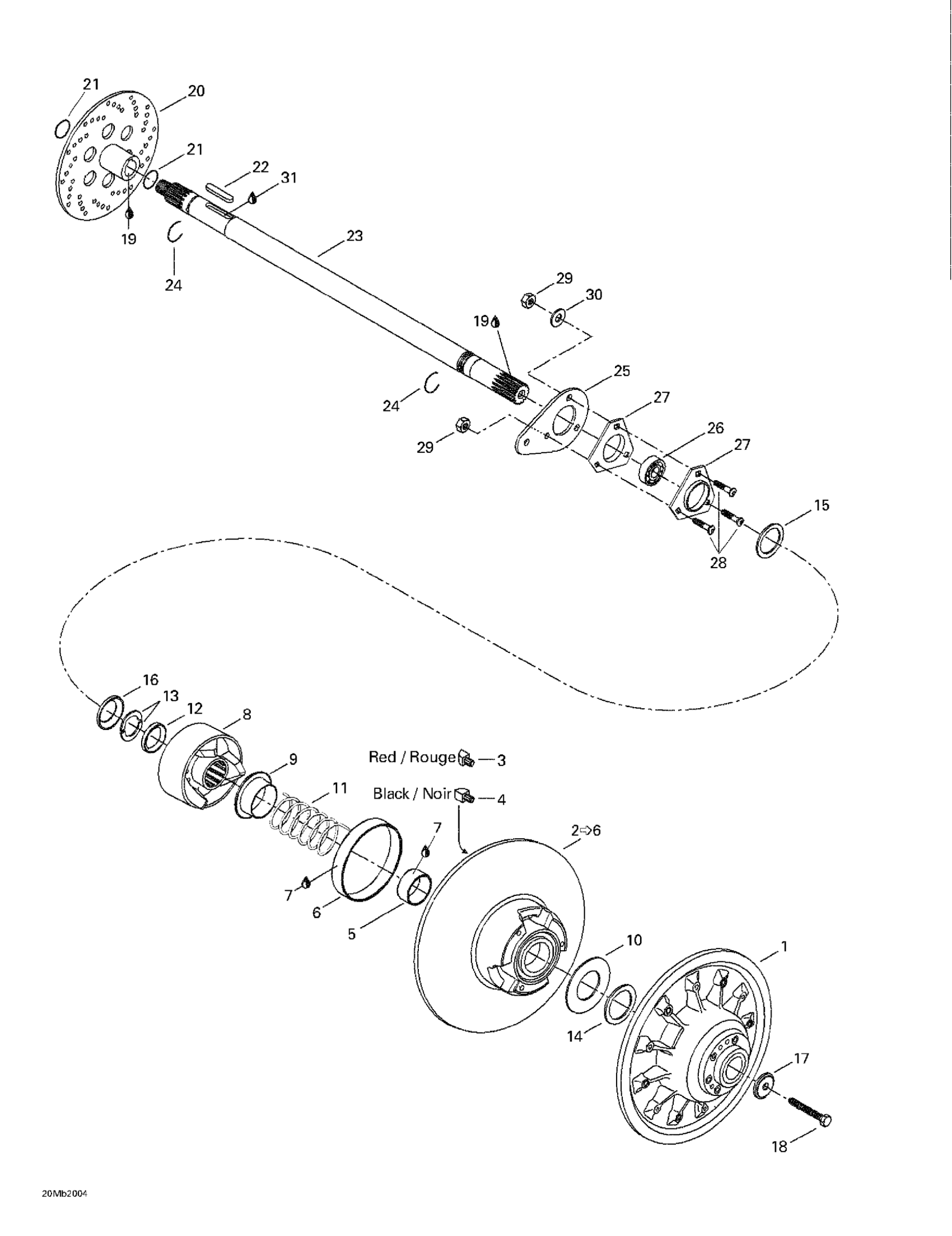

Ski-Doo Touring E, 2000 05- Driven Pulley Diagram
#
Description
Price
1
FIXED FLANGE ASS'Y - Call your local BRP dealership
417126401
Unavailable
2
Sliding Flange Ass'y | Includes 2 to 6
417126403
Unavailable
5
BUSHING - Call your local BRP dealership
417126901
Unavailable
6
Bushing
415092700
Unavailable
8
Cam Ass'y
417124700
Unavailable
9
GUARD - Call your local BRP dealership
415006000
Unavailable
10
STOPPER WASHER - Call your local BRP dealership
504099600
Unavailable
11
YELLOW SPRING - Call your local BRP dealership
415092800
Unavailable
12
Spacer
417126368
Unavailable
13
HALF KEY - Call your local BRP dealership
371911000
Unavailable
14
SHIM - Call your local BRP dealership
504112300
Unavailable
16
Protector
417300055
Unavailable
19
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
20
WELDED DISK - Call your local BRP dealership
507029000
Unavailable
Brake Disk
507032203
Unavailable
21
O'RING - Call your local BRP dealership
414928900
Unavailable
22
KEY - Call your local BRP dealership
507021300
Unavailable
23
Countershaft
504151747
Unavailable
Countershaft
504150300
Unavailable
25
Spacer
501022300
Unavailable
26
Bearing-Ball
405408900
Unavailable
27
FLANGE - Call your local BRP dealership
501025000
Unavailable
28
SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership
205482546
Unavailable
31
Not Available As Spare Part - Friction Washer
Unavailable
