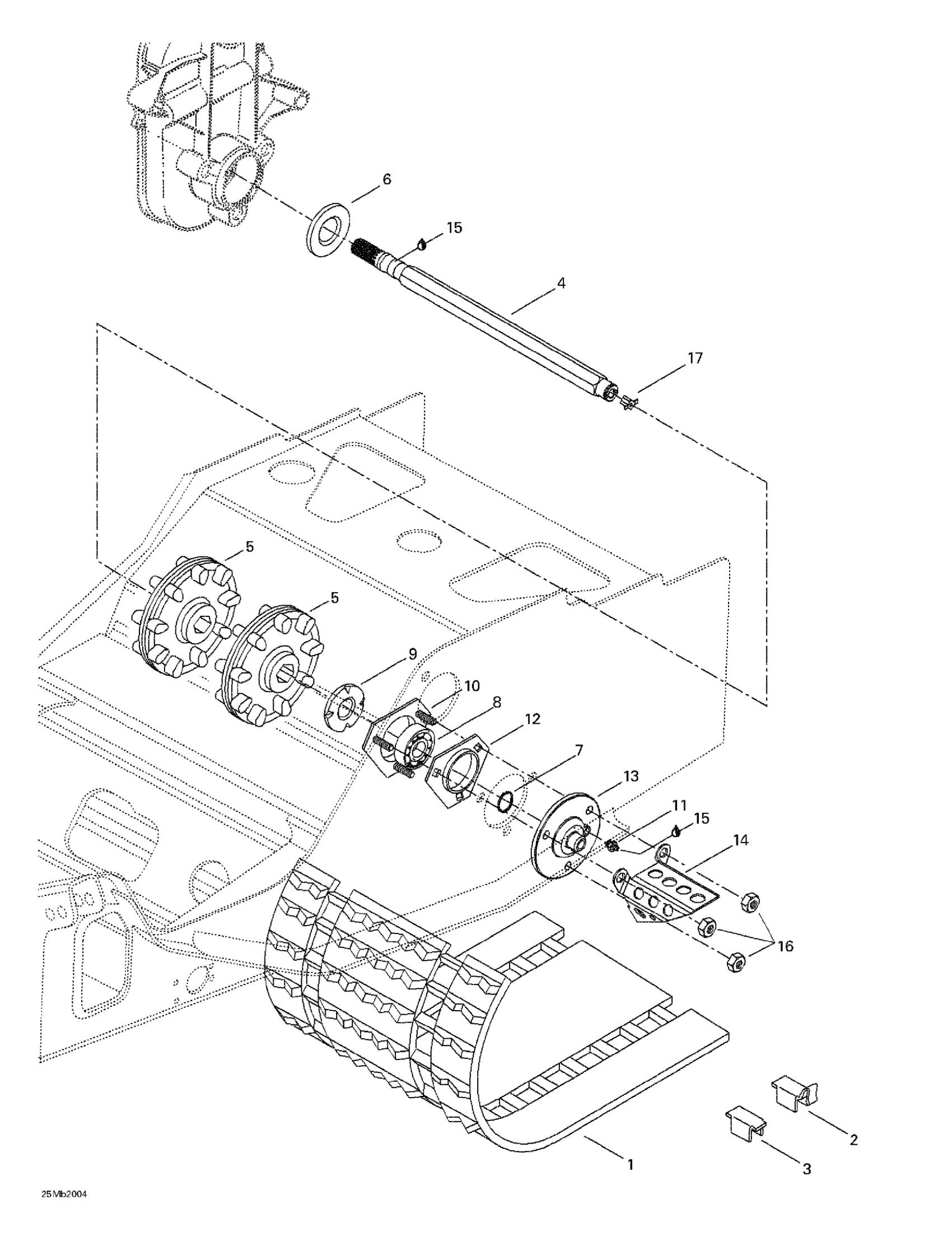

Ski-Doo Touring E, 2000 05- Drive Axle And Track Diagram

#

Description
Price

1

Track 136" | Includes 1 - 3.

504151920

Unavailable

1

Track (Europe)

570212500

Unavailable

2

Track Guide | Track Width 16''

415129528

$3.29

Track Guide | Track Width 16''

415129528

$3.29

3

Cleat

504152651

$9.69

4

Drive Axle

504151714

Unavailable

5

Sprocket (9 Teeth)

414882600

Unavailable

6

Seal Oil Ass'y

504152076

$27.99

7

CIRCLIP - Call your local BRP dealership

371910200

$2.09

8

Ball Bearing

293350060

$38.49

9

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

10

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

11

Grease Fitting

408200700

$3.49

12

FLANGE - Call your local BRP dealership

501025000

Unavailable

13

Flange, Speedo Drive Insert

504151836

Unavailable

14

CABLE PROTECTOR - Call your local BRP dealership

517290100

Unavailable

15

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

16

Hex. Elastic Stop Nut M8

232581414

$0.56

17

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable
