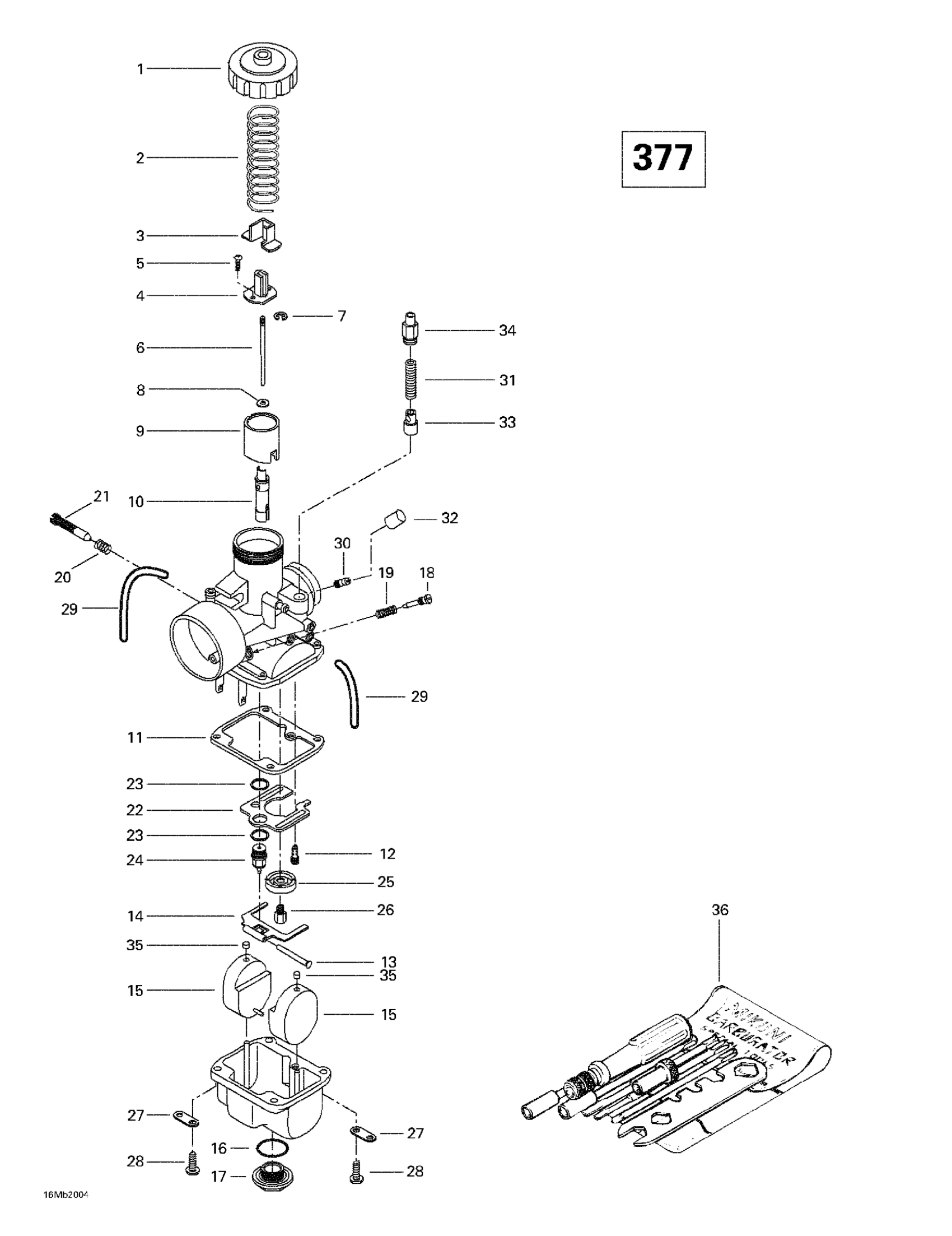

Ski-Doo Touring E, 2000 02- Carburetors (377) Diagram

#

Description
Price

1

Carburetor VM 30-200 | Includes 1 - 36.

403138600

Unavailable

1

Cover

404103700

$31.99

2

Spring

404154800

$23.99

3

Cover

404122100

$19.49

4

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

5

Screw With Washer

404121300

$4.14

6

Needle JN 6DP9-3

404152600

Unavailable

7

E-Ring

404152400

$7.27

8

Packing

404117000

$3.29

9

Piston Valve 2.5

404128400

$127.49

10

NEEDLE JET - Call your local BRP dealership

404107000

Unavailable

11

Gasket | Includes 1900a to 1900am

404104200

$6.38

12

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

13

Lever Pin

404103300

$6.27

14

Float Lever

404107600

$22.99

15

FLOAT - Call your local BRP dealership

404107100

Unavailable

16

O-Ring

404107300

$9.06

17

Drain Plug Screw

404107400

$22.99

18

Air Screw

404102300

$14.35

19

Spring

404101800

$4.25

20

Spring

404101700

$4.14

21

Idle Speed Screw

404109700

$19.49

22

BAFFLE - Call your local BRP dealership

404109600

Unavailable

23

Seat Washer

404101600

$3.29

24

Needle Valve 1.5

404103200

$31.99

25

BAFFLE RING - Call your local BRP dealership

404110900

Unavailable

26

Main Jet MJ 140

404126600

$8.36

27

PLATE - Call your local BRP dealership

404103000

Unavailable

28

Screw With Lock Washer

404102000

$3.18

29

Air Vent Tube

404161802

Unavailable

30

Nipple

404153400

$12.16

31

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

32

Cap

404156600

$17.08

33

PLUNGER ASS'Y - Call your local BRP dealership

404161000

Unavailable

34

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

35

Cap

404105800

$6.38

36

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
