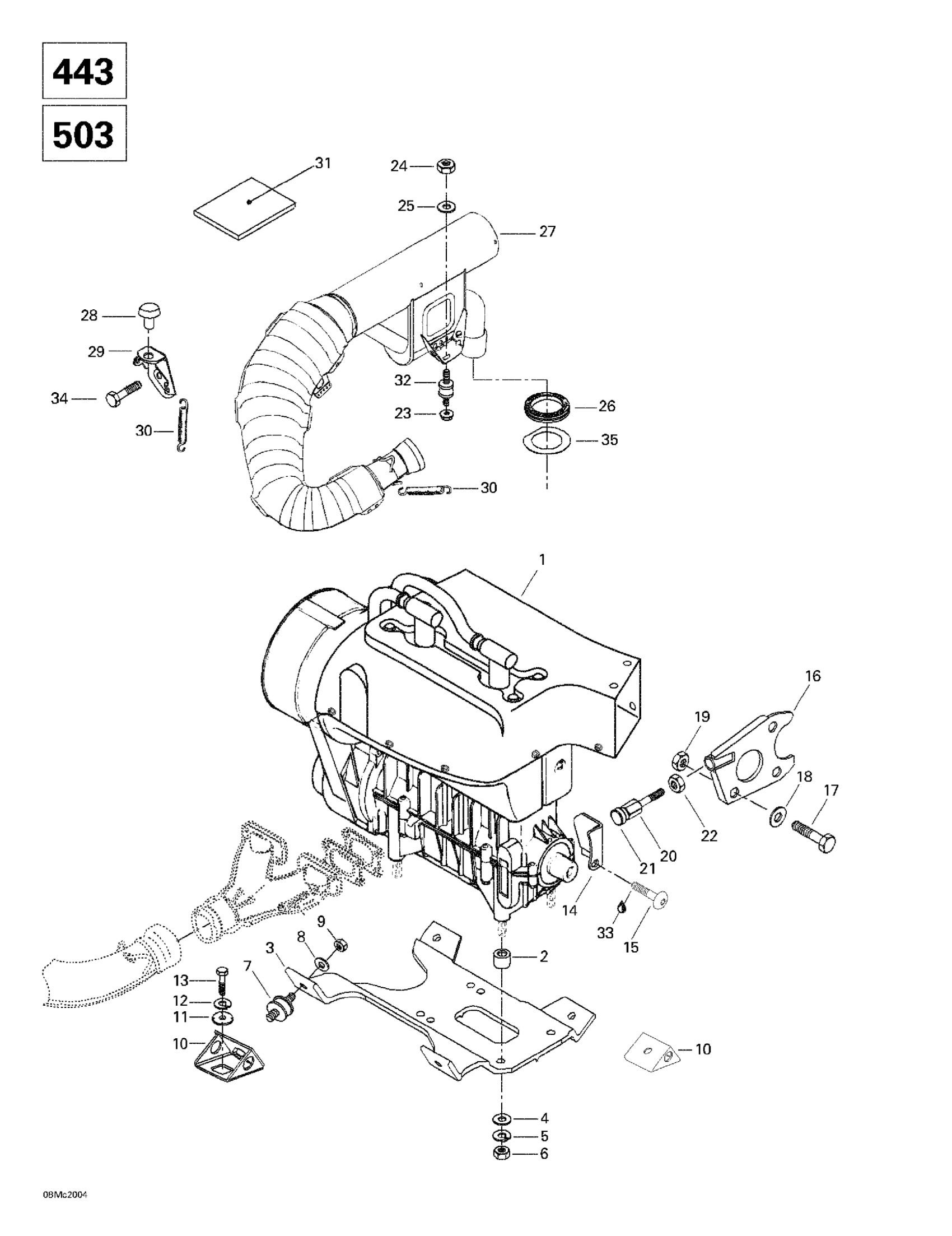

Ski-Doo Touring E, 2000 01- Engine Support And Muffler (443, 503) Diagram

#

Description
Price

1

<<443>> Engine | MX Z 440 F.

400409410

Unavailable

<<503>> Engine | Formula DLX 500.

400509713

Unavailable

2

Spacer

512057700

Unavailable

SPACER - Call your local BRP dealership

512051800

Unavailable

3

Engine Support

512059134

Unavailable

4

Flat Washer 10 mm

234001410

$1.26

5

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

6

Hex. Nut M10 X 1.5

232006414

$1.37

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Flat Washer 10 mm

234001410

$1.26

9

Elastic Locking Nut M10 X 1.5

233601416

$1.69

10

Engine Support

512050900

Unavailable

11

Lock Washer

512056700

$3.17

12

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

13

Hex. Screw M10 X 25

207102544

$1.37

14

Stopper Plate

512059198

Unavailable

15

Hex. Screw M8 X 20

236282084

$1.48

16

Support Plate

517271800

Unavailable

17

Hex. Screw M8 X 25

207182544

$0.90

18

Flat Washer 8 mm

234081410

$0.83

19

Hex. Elastic Stop Nut M8

232581414

$0.56

20

Screw

517244200

Unavailable

21

Rod retainer

570025100

Unavailable

22

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

23

Hex. Flange Elastic Nut M8

233281414

$1.47

24

Hex. Elastic Stop Nut M8

232581414

$0.56

25

Flat Washer 8 mm

234082410

$1.47

26

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

27

Tune Pipe | Touring LE.

514052100

Unavailable

Tuned-Pipe | Formula DLX 500 F.

514097600

Unavailable

28

Rubber Bumper

514053654

$50.99

29

Muffler Support

514044100

Unavailable

30

Spring

415107100

$6.35

31

Reflection Sheet | Formula DLX 500 F.

415064900

Unavailable

32

Rubber Mount | Formula DLX 500 F.

514052838

Unavailable

33

Loctite 271, 10 ml

293800005

$26.99

34

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

35

Aluminum Washer

514049300

Unavailable
