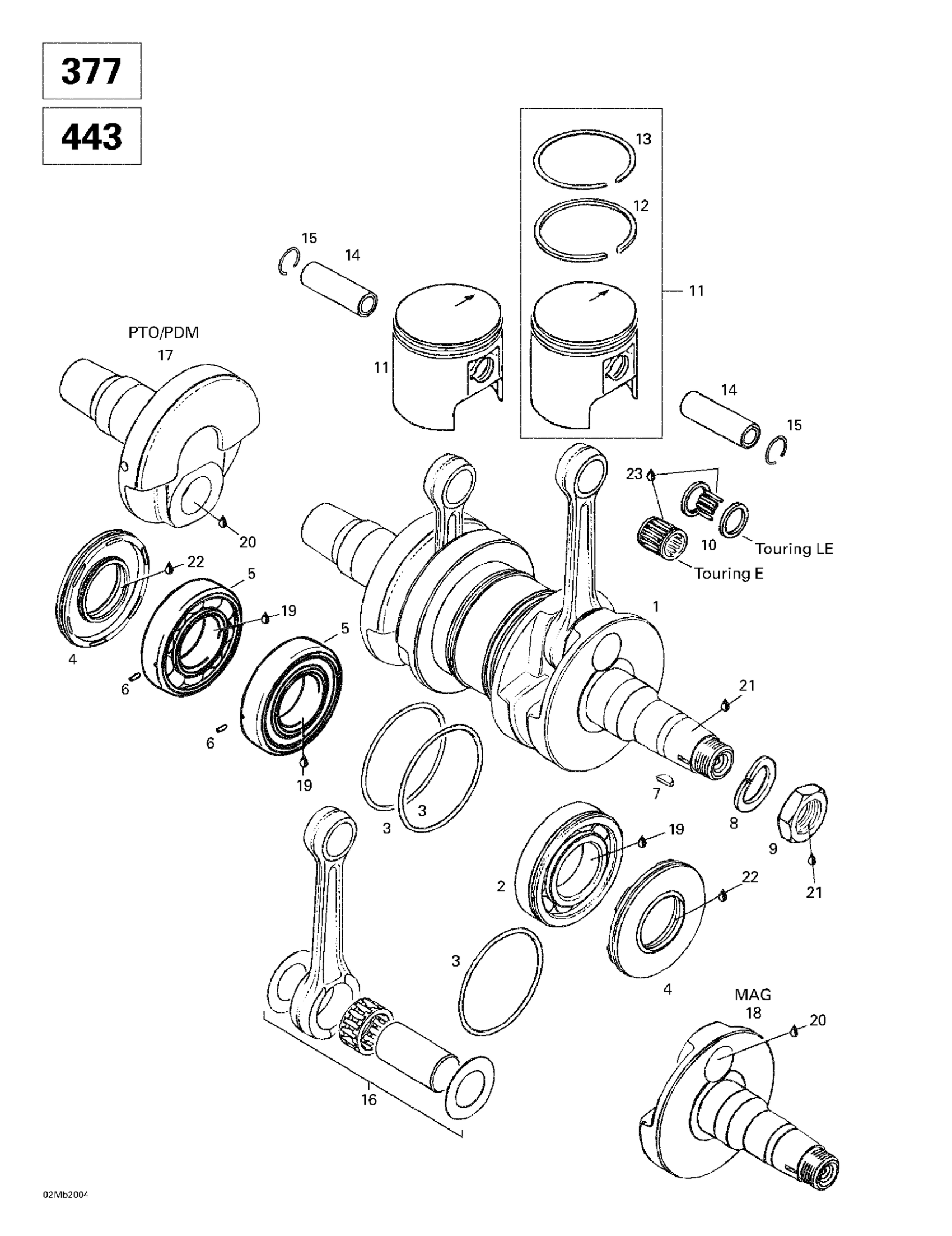

Ski-Doo Touring E, 2000 01- Crankshaft (377, 443) Diagram

#

Description
Price

1

Crankshaft ass'y | Includes 1 - 7.

420887249

Unavailable

2

Bearing_Ball This part replaces 290832231.

420832584

$41.49

3

O-Ring, 64 mm X 2 mm

293300022

$12.72

4

Oil Seal This part replaces 290831952.

420831952

$18.01

5

BALL BEARING - Call your local BRP dealership

420832574

Unavailable

6

Dowel Pin

420929972

Unavailable

7

Woodruff Key

420246055

$2.43

8

Lock Washer, 22 mm

420945759

$1.90

9

Hex. Nut, M22 X 1.5

420842239

$17.53

10

Needle Bearing

420932904

$15.89

NEEDLE BEARING - Call your local BRP dealership

420832325

Unavailable

11

PISTON ASS?Y 61.94 MM - Call your local BRP dealership | Inludes Items 11 to 13

420887475

Unavailable

PISTON - Call your local BRP dealership | Includes 11 to 13

420887485

Unavailable

Oversize Piston Ass’y 62.19 mm | Inludes Items 11 to 13

420887476

Unavailable

Oversize Piston Ass’y 62.44 mm | Inludes Items 11 to 13

420887477

Unavailable

PISTON - Call your local BRP dealership | Includes 11 to 13

420887486

Unavailable

PISTON - Call your local BRP dealership | Includes 11 to 13

420887487

Unavailable

12

RECTANGULAR RING, 62.0 MM - Call your local BRP dealership

420915895

Unavailable

RING R 67.5 - Call your local BRP dealership

420915960

Unavailable

Rectangular Ring, 62.25 mm

420915896

Unavailable

RECTANGULAR RING, 62.5 MM - Call your local BRP dealership

420915897

Unavailable

RING R 67.75 - Call your local BRP dealership

420915961

Unavailable

RING R 68 - Call your local BRP dealership

420915962

Unavailable

13

SEMI-TRAPEZ RING, 62.0 MM - Call your local BRP dealership

420215215

Unavailable

RING L 67.5 - Call your local BRP dealership

420915845

Unavailable

SEMI-TRAPEZ RING, 62.25 MM - Call your local BRP dealership

420215216

Unavailable

SEMI-TRAPEZ RING, 62.5 MM - Call your local BRP dealership

420215217

Unavailable

RING L 67.75 - Call your local BRP dealership

420915846

Unavailable

RING L 68.0 - Call your local BRP dealership

420915847

Unavailable

14

GUDGEON PIN - Call your local BRP dealership

420916260

Unavailable

PISTON PIN - Call your local BRP dealership

420916136

Unavailable

15

Piston Circlip

420945735

$4.46

16

Rod repair kit

420996334

Unavailable

17

Crankshaft half PTO

420818203

Unavailable

18

MAG SIDE HALF-CRANK - Call your local BRP dealership

420819010

Unavailable

19

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

20

Sealant Loctite 648

219703000

$45.99

21

Loctite 243, 10 ml

293800060

$21.49

22

Dow Corning 111, 150 g

413707000

$59.99

23

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99
