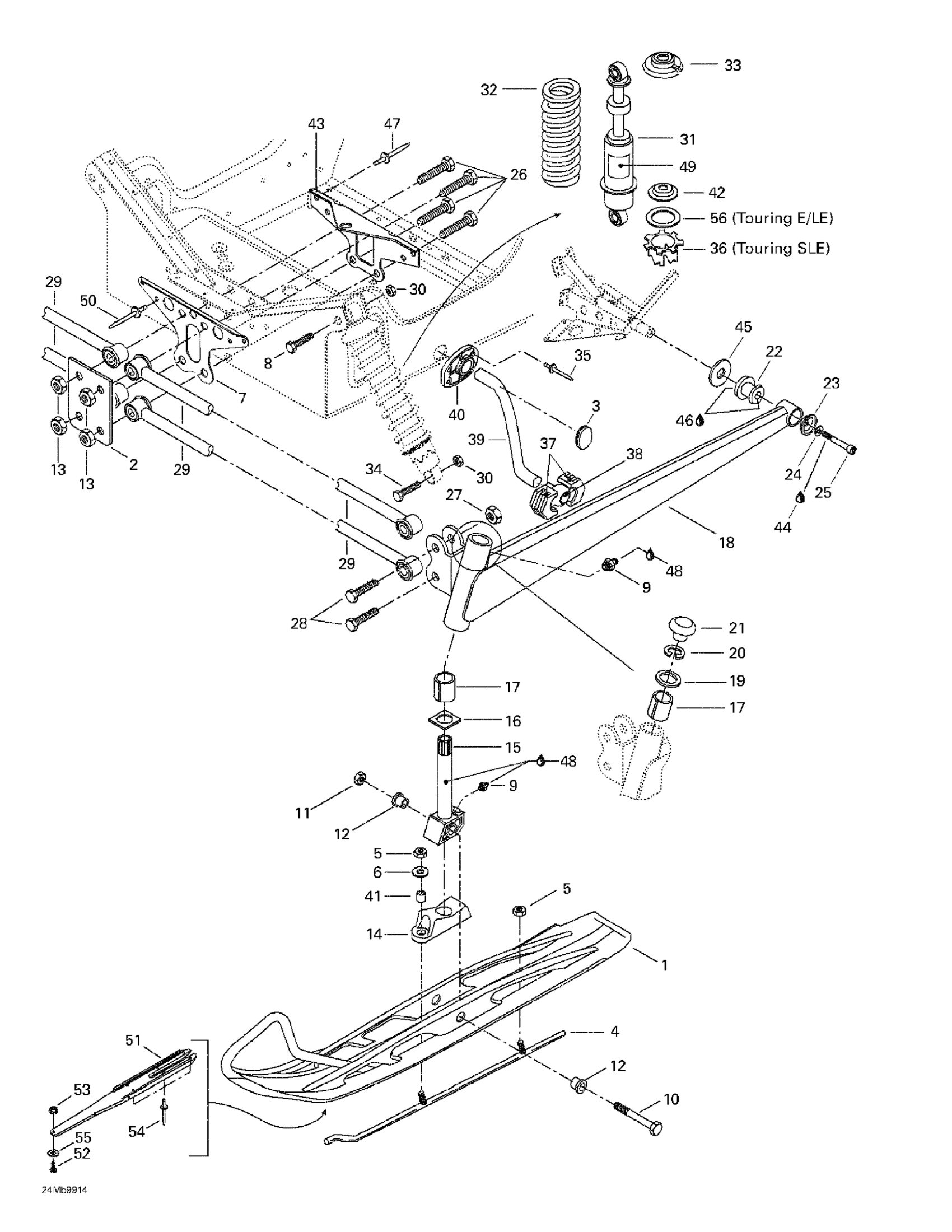

Ski-Doo Touring E, 1999 07- Front Suspension And Ski Diagram

#

Description
Price

1

Ski

505070084

Unavailable

2

Support

518306700

Unavailable

3

Black, Nylon Cap

414916600

$4.69

4

Runner | Touring E.

505070269

Unavailable

4

Runner Kit (Carbide) | Includes 4 - 5. Touring LE. Touring SLE.

505070308

Unavailable

5

Hex. Elastic Stop Nut M8

232581414

$0.56

6

Flat Washer 8 mm

234082410

$1.47

7

Front Link Plate

517254800

Unavailable

8

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

9

Grease Fitting

408200700

$3.49

10

Hex. Screw M12

732601176

Unavailable

11

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

12

CUSHION - Call your local BRP dealership

414530600

Unavailable

13

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

14

Ski Stopper

570053500

Unavailable

15

Ski Leg | Includes 15 - 16.

506144500

Unavailable

16

Wear Plate

506081200

Unavailable

17

Cushion

572069900

Unavailable

18

LH Swing Arm

506133410

Unavailable

RH Swing Arm

506133510

Unavailable

LH Swing Arm | Touring LE. Touring SLE.

506133610

Unavailable

RH Swing Arm | Touring LE. Touring SLE.

506133710

Unavailable

19

Thrust Washer

506080900

Unavailable

20

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

21

Cap

572091300

$12.99

22

DAMPER - Call your local BRP dealership

570062200

Unavailable

23

Cup | Package Hunter

705007171

$7.89

24

Lock Washer 8 mm

234181401

$0.92

25

Socket Head Screw M8 X 25

205082544

$1.15

26

Hex. Screw M12 x 100

732601113

Unavailable

27

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

28

Hex. Screw M12 x 50

222025075

Unavailable

29

Arm Ass'y (40") | Formula S. Formula DLX 380.

580649600

Unavailable

Arm Ass'y (42")

580649700

Unavailable

30

Elastic Locking Nut M10 X 1.5

233601416

$1.69

31

Shock

505070016

Unavailable

Front Shock

505070015

Unavailable

32

Shock Spring (Black) | Formula DLX 500 LC.

415035900

Unavailable

33

Spring Stopper

706200881

$12.99

34

Hex. Screw M10 X 55

207005544

$2.22

35

Pop Rivet 3/16"

390402300

$0.75

36

Adjustment Cam

505073625

$12.99

37

Block Sliding

572069800

Unavailable

38

Ball Joint | Touring 500 F.

505070068

Unavailable

39

Stabilisator | Touring 500 F.

505070069

Unavailable

40

BUSHING - Call your local BRP dealership

505070139

Unavailable

41

BUSHING - Call your local BRP dealership

506117300

Unavailable

42

GUIDE_SPRING - Call your local BRP dealership

503165100

Unavailable

Spring Guide

503187500

$10.49

43

Rear Link Plate

517254900

Unavailable

44

Loctite 243, 10 ml

293800060

$21.49

45

WASHER - Call your local BRP dealership

503146700

Unavailable

46

Grease, Super Lube

293550030

$28.99

47

Not Available As Spare Part - Friction Washer

Unavailable

48

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

49

Shock Decal | Formula Deluxe 500.

516000181

Unavailable

50

Rivet pop 1/4"

390404900

Unavailable

51

Proactive Control

505070087

Unavailable

52

Socket Screw M5 X 16

205451646

Unavailable

53

Hex. Flange Elastic Nut M5

233251414

$1.04

54

Pop Rivet 3/16"

390402200

$0.35

55

Flat Washer 6 mm

234061410

$1.36

56

WASHER - Call your local BRP dealership

503184400

Unavailable
