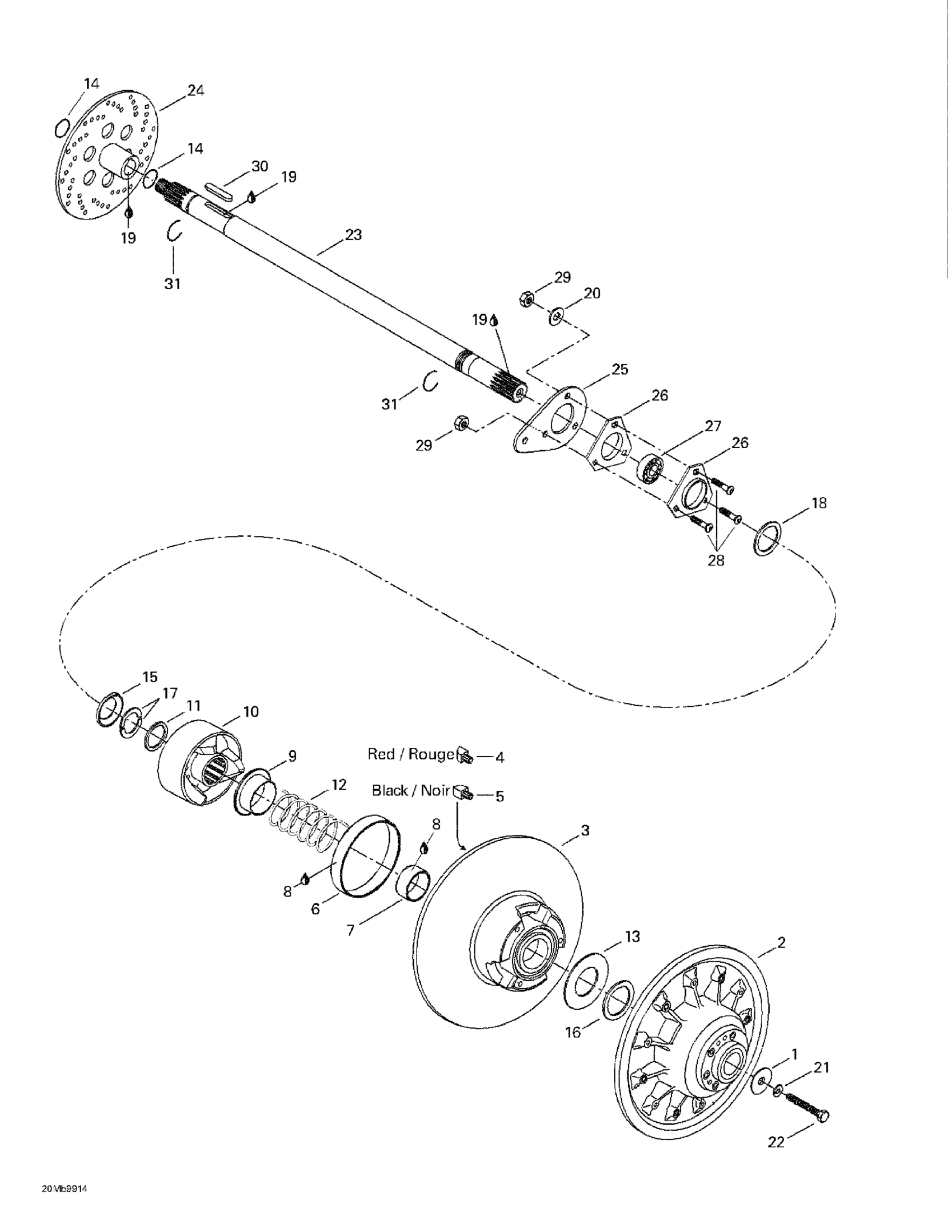

Ski-Doo Touring E, 1999 05- Driven Pulley Diagram

#

Description
Price

1

Strength Washer

517302322

$12.63

2

Fixed Flange Ass'y

417126355

Unavailable

3

Sliding Flange Ass'y | Includes 3 - 8.

417126357

Unavailable

4

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

5

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

6

Bushing

415092700

Unavailable

7

BUSHING - Call your local BRP dealership

417126901

Unavailable

8

Loctite 609, 10 ml

413703100

$26.99

9

GUARD - Call your local BRP dealership

415006000

Unavailable

10

Cam Ass'y

417124700

Unavailable

11

WASHER - Call your local BRP dealership

417124300

Unavailable

12

YELLOW SPRING - Call your local BRP dealership

415092800

Unavailable

13

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

14

O'RING - Call your local BRP dealership

414928900

Unavailable

15

Protector

417300055

Unavailable

16

SHIM - Call your local BRP dealership

504112300

Unavailable

17

HALF KEY - Call your local BRP dealership

371911000

Unavailable

18

Spacer

417300265

$2.29

19

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

20

Flat Washer 8 mm

234081410

$0.83

21

Lock Washer 8 mm

234181401

$0.92

22

Hex. Screw M8 X 80

207088044

$1.68

23

Countershaft

504151747

Unavailable

Countershaft

504150300

Unavailable

24

WELDED DISK - Call your local BRP dealership

507029000

Unavailable

Brake Disk

507032203

Unavailable

25

Spacer

501022300

Unavailable

26

FLANGE - Call your local BRP dealership

501025000

Unavailable

27

Bearing-Ball

405408900

Unavailable

28

Allen Screw M8 x 25

732601156

Unavailable

29

Hex. Elastic Stop Nut M8

232581414

$0.56

30

KEY - Call your local BRP dealership

507021300

Unavailable

31

Circlip

371910000

$1.19
