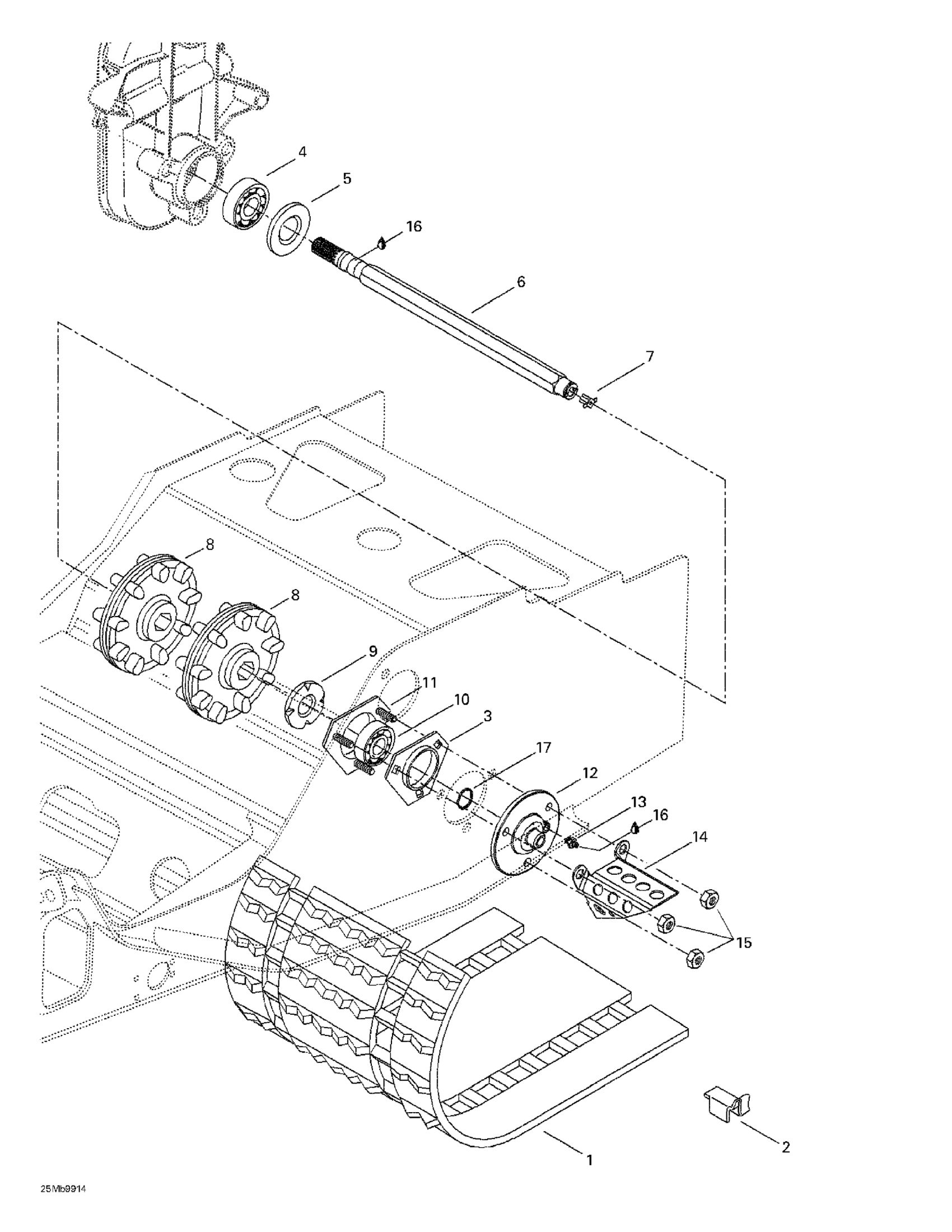

Ski-Doo Touring E, 1999 05- Drive Axle And Track Diagram
#
Description
Price
1
Track 15" X 136" X 0.88" Ass'y | Includes 7 to 9, North America This part replaces 504152489.
504152455
$799.99
Track Ass'y | Includes 1 - 2.
570210700
Unavailable
3
FLANGE - Call your local BRP dealership
501025000
Unavailable
6
Drive Axle
504151714
Unavailable
7
SPEEDO DRIVE INSERT - Call your local BRP dealership
572010100
Unavailable
8
Sprocket (9 Teeth)
414882600
Unavailable
9
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
11
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
12
Speedometer Flange
572094000
Unavailable
14
CABLE PROTECTOR - Call your local BRP dealership
517290100
Unavailable
16
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
