Description

Price

1

CABLE CLIP - Call your local BRP dealership

414379300

Unavailable

2

Female Terminal Housing (3 circuits)

409008500

Unavailable

3

Carburetor VM 30-196 | Includes 1 - 35. Formula Deluxe 380.

403138563

Unavailable

Carburetor VM 34-530 (PTO) | Includes 1 - 36.

403138543

Unavailable

Carburetor VM 34-531 (MAG)

403138544

Unavailable

Carburetor VM 34 532 (PTO) | Includes 1 - 36. Formula Deluxe 500.

403138541

Unavailable

Carburetor VM 34 533 (MAG) | Formula Deluxe 500.

403138542

Unavailable

4

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

5

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

CLIP - Call your local BRP dealership

415018200

Unavailable

8

Lever Pin

414438700

$11.64

9

Screw

414473200

Unavailable

10

Throttle Housing

512060603

$12.49

11

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

12

Handle Ass’Y

512059624

$93.99

Handle Ass'y

512060214

$124.99

13

Socket Set Screw M8 X 10

414440800

$4.12

14

SPRING - Call your local BRP dealership

517182100

Unavailable

15

Spring Clamp

414415200

$0.88

16

Hose

219704549

$50.99

17

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

18

Grommet

570045500

$6.69

19

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

20

Polyurethane Hose 10000Mm Long

219704410

$56.99

21

Male Connector

414518500

$4.23

22

Grommet

709200285

$9.69

23

Fuel Filter

414865700

$10.99

24

Spring Clamp

414554800

$0.88

25

Fuel Tank Bracket

517249200

Unavailable

26

Hex. Flange Screw M6 X 16

210261650

$1.67

27

Fuel Tank

572108900

Unavailable

28

Fuel Tank Cap

572161200

$38.99

29

Tubing 10 MM 1000MM Long

219704407

$2.79

30

THROTTLE CABLE AND HOUSING - Call your local BRP dealership

414883100

Unavailable

31

Circlip

414274500

$0.90

32

Circlip

414753500

$0.71

33

Flat Washer 8 mm, Nylon

234081100

$1.39

34

Male Connector

414814100

$2.22

35

CHOKE CABLE - Call your local BRP dealership

414967000

Unavailable

36

Plate

512060390

$10.33

37

Fuel Pump

403801000

Unavailable

38

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

39

Spring Clamp

414420700

$0.72

40

Circlip | Model-RS

414439000

$4.23

41

Flat Washer M5, Stainless

234051600

$0.77

42

Lock Washer, Interior Teeth

394103300

Unavailable

43

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

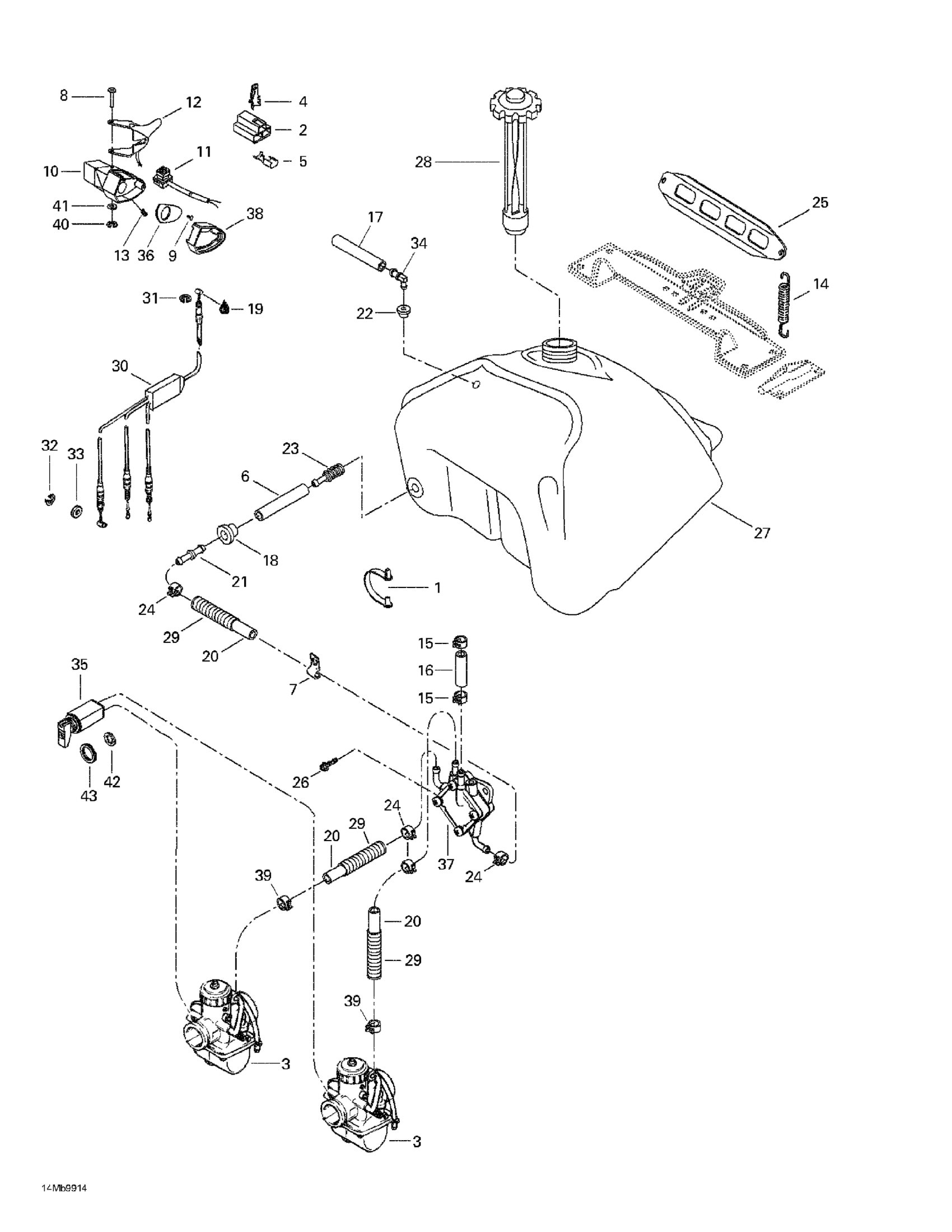

Ski-Doo Touring E, 1999 02- Fuel System Diagram
