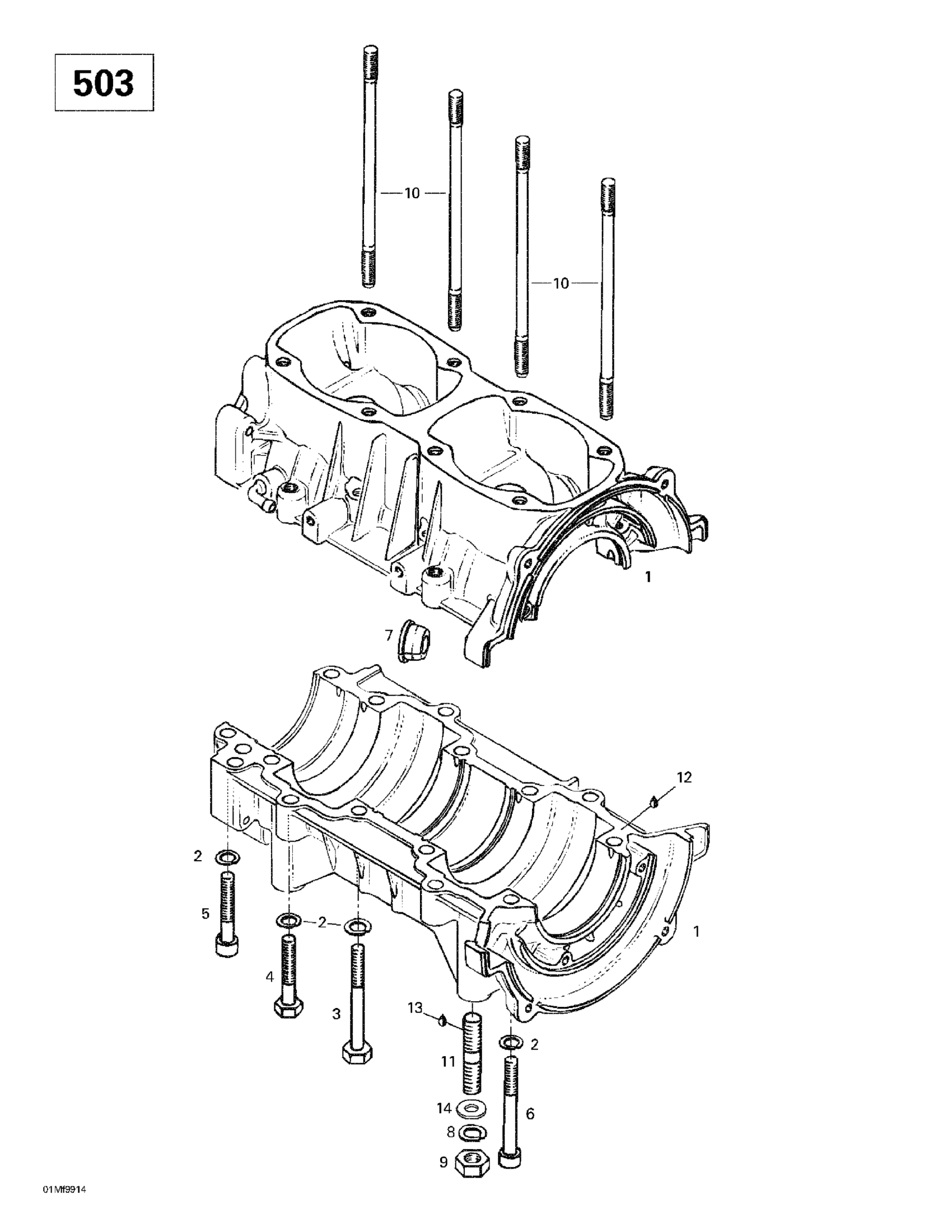

Ski-Doo Touring E, 1999 01- Crankcase (503) Diagram

CRANKCASE ASS?Y - Call your local BRP dealership | Includes 1 - 6.

420888493

$755.99

Washer-Lock Din.128

420945832

$1.15

Hex. Screw M8 X 70

420841201

$3.06

Hex. Screw M8 X 45

207084544

$1.48

ALLEN SCREW M8 X 50 - Call your local BRP dealership

420841566

Unavailable

SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership

420841841

Unavailable

Cable Grommet

420860962

$13.16

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

Hex. Nut M10 X 1.5

232006414

$1.37

Stud M8 X 173.5

420840556

$15.89

Stud M10 X 29/20

420940190

Unavailable

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

Loctite 243, 10 ml

293800060

$21.49

Flat Washer 10 mm

234001410

$1.26
