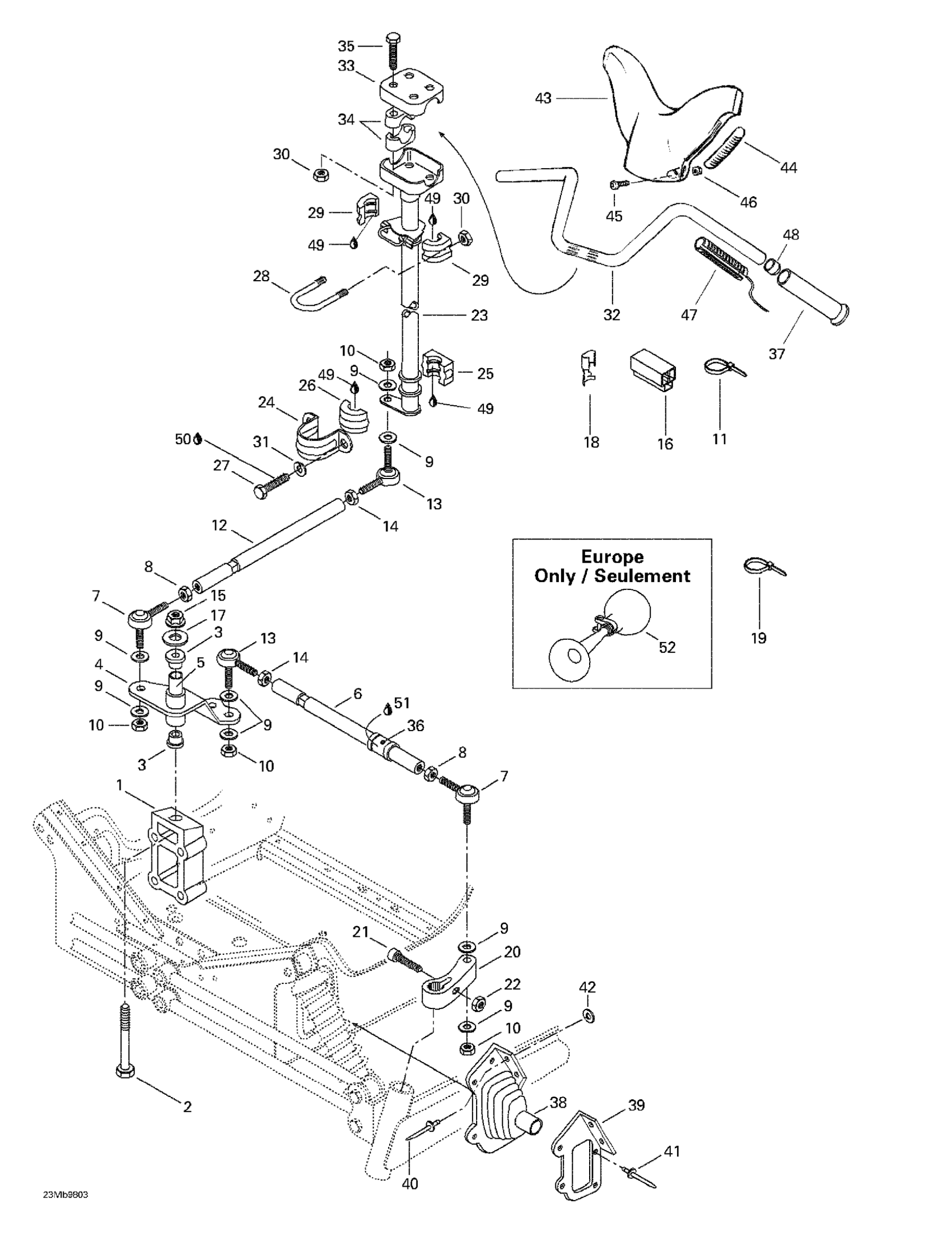

Ski-Doo Touring E, 1998 07- Steering System Diagram

#

Description
Price

1

Block

506121400

Unavailable

2

Screw M12 x 85

222028565

Unavailable

3

CUSHION - Call your local BRP dealership

415041100

Unavailable

4

Pivot Arm

506133800

Unavailable

5

Pivot

415038000

Unavailable

6

TIE ROD - Call your local BRP dealership | Formula S. Formula DLX 380.

506119200

Unavailable

Tie Rod

506136000

Unavailable

7

RH BALL JOINT - Call your local BRP dealership

506151492

$38.99

8

RH Threaded Hex. Jam Nut M10

732610010

$0.74

9

Washer

503175800

$3.28

10

Elastic Flange Nut M10

232501416

$1.48

11

Tie-Rap 180 mm

414115200

$0.11

12

Tie Rod

506110800

Unavailable

13

LH JOINT BALL - Call your local BRP dealership

506151845

$38.99

14

LH Threaded Hex. Jam Nut M10

250100016

$0.74

15

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

16

Female Housing

409204300

Unavailable

17

FLAT WASHER - Call your local BRP dealership

506136400

Unavailable

18

Female Terminal

561503100

$2.41

19

Tie Wrap 94 mm | 4X4

293750001

$1.03

20

RH Steering Arm

506144800

Unavailable

LH Steering Arm

506144900

Unavailable

21

Allen Screw M8 x 35

222983565

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

$1.47

23

Main Tube

506120100

Unavailable

24

Retainer Support

517126200

Unavailable

25

Bushing

572064400

Unavailable

26

BUSHING - Call your local BRP dealership

572064500

Unavailable

27

Hex. Screw M8 X 20

207182044

$0.74

28

U-clamp | X

506060600

$17.80

29

HALF-BUSHING - Call your local BRP dealership

572067100

Unavailable

30

Hex. Elastic Stop Nut M8

232581414

$0.56

31

Lock Washer 8 mm

234181401

$0.92

32

Handlebar

506114100

Unavailable

33

Steering Clamp

506055400

Unavailable

34

Steering Support

709400919

$22.49

35

Hex. Screw M8 X 55

207085544

$1.68

36

BUSHING - Call your local BRP dealership

572036500

Unavailable

37

RH Grip 6-1/2"

506151530

$16.49

38

RH Tie Rod Cap

570024800

Unavailable

LH TIE ROD CAP - Call your local BRP dealership

570024900

Unavailable

39

RH Cap Plate

517241200

Unavailable

LH CAP PLATE - Call your local BRP dealership

517241300

Unavailable

40

Pop Rivet 3/16"

390906800

$0.93

41

Pop Rivet 3/16"

390402200

$0.35

42

Washer

517124300

$0.19

43

Steering Padding

572023800

Unavailable

44

Key Way

572023900

Unavailable

45

Phillips Screw M5 X 20

208652044

$1.47

46

Hex. Flange Elastic Nut M5

233251414

$1.04

47

Heating Grip

515175573

$63.99

48

HANDLEBAR END - Call your local BRP dealership

572081900

Unavailable

49

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

50

Loctite 271, 10 ml

293800005

$26.99

51

Grease, Super Lube

293550030

$28.99

52

Horn

549011291

$35.99
