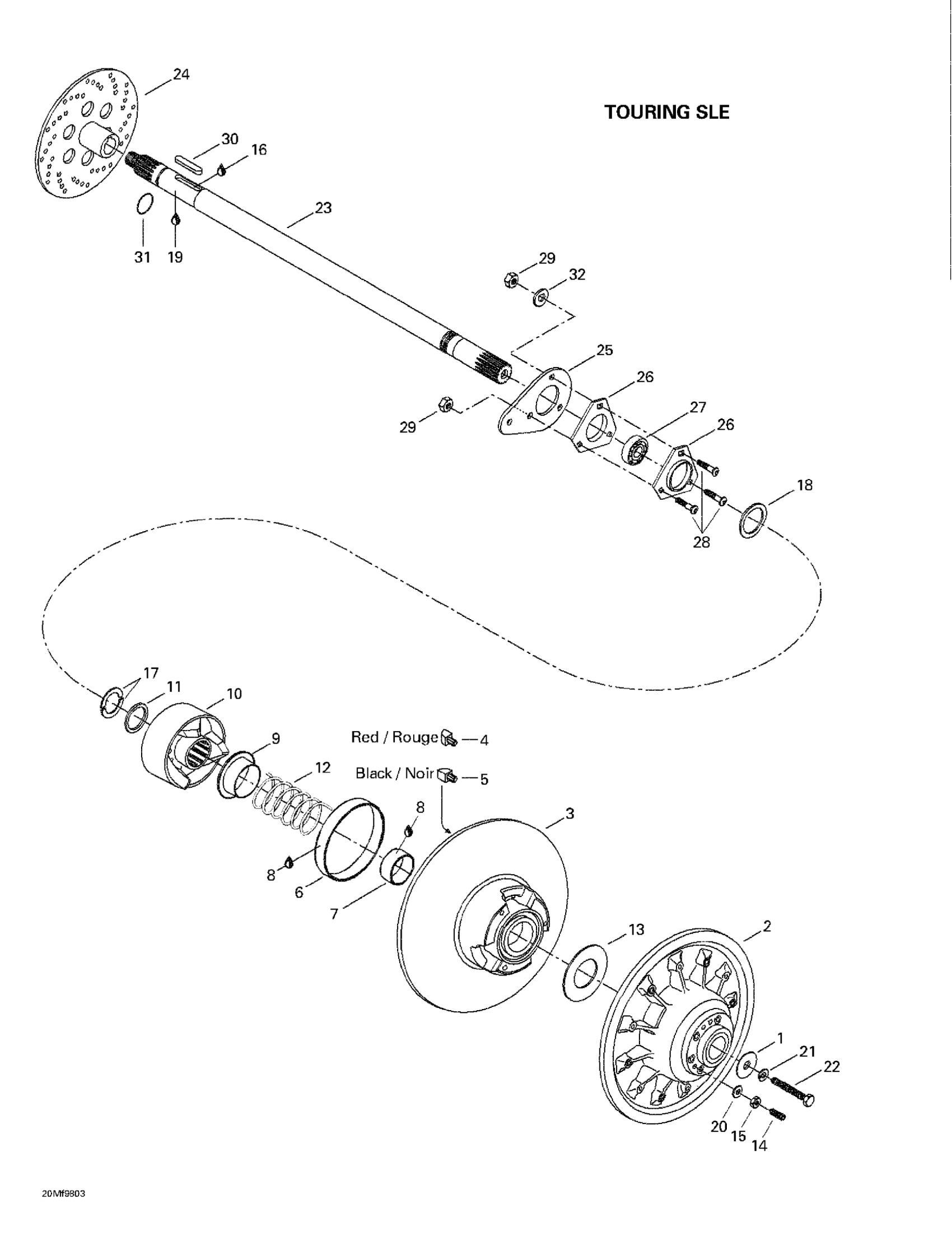

Ski-Doo Touring E, 1998 05- Driven Pulley (Touring SLE) Diagram
#
Description
Price
2
Fixed Half Pulley | .
504099400
Unavailable
3
Sliding Pulley | Includes 3 - 8. .
504149803
Unavailable
4
Rear Cam Shoe Slider | Touring SLE.
414978000
Unavailable
5
Front Cam Shoe Slider | Touring SLE.
415026100
Unavailable
6
Bushing
415092700
Unavailable
7
BUSHING - Call your local BRP dealership
417126901
Unavailable
9
GUARD - Call your local BRP dealership
415006000
Unavailable
10
Cam Ass'y
417124700
Unavailable
11
WASHER - Call your local BRP dealership
417124300
Unavailable
12
YELLOW SPRING - Call your local BRP dealership
415092800
Unavailable
13
STOPPER WASHER - Call your local BRP dealership
504099600
Unavailable
14
Allen Screw M6 x 30
223563065
Unavailable
16
Not Available As Spare Part - Friction Washer
Unavailable
17
HALF KEY - Call your local BRP dealership
371911000
Unavailable
18
Spacer | Touring SLE.
504151600
Unavailable
19
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
20
WASHER - Call your local BRP dealership
420245370
Unavailable
22
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
23
Countershaft
504150300
Unavailable
24
Brake Disk | Formula 500. Formula 500 Deluxe. Formula 583 Deluxe.
507031400
Unavailable
25
Spacer
501022300
Unavailable
26
FLANGE - Call your local BRP dealership
501025000
Unavailable
27
Bearing-Ball
405408900
Unavailable
28
Allen Screw M8 x 25
732601156
Unavailable
30
KEY - Call your local BRP dealership
507021300
Unavailable
