Description

Price

1

Drive Pulley Ass'y | Includes 1 - 23.

417221900

Unavailable

1

Inner Half Ass'y | Formula Z 583. Formula 583 Deluxe.

417003502

Unavailable

2

SLINDING FLANGE - Call your local BRP dealership | Includes 2 - 3. Formula Z 500.

417010000

Unavailable

3

Bushing

417004201

$25.99

4

LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.

417003801

Unavailable

5

Bushing

417004305

$11.52

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

7

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

205065044

Unavailable

8

Flat Washer 6 mm

234061410

$1.36

9

Elastic Stop Nut M6

232561414

$0.55

10

Spring Seat

417005000

Unavailable

11

Spring Cover Ass'y | Includes 9 - 10.

417004000

Unavailable

12

Bushing

417004501

$24.99

13

Allen Screw M6 x 40

222964066

Unavailable

14

WASHER - Call your local BRP dealership

420245370

Unavailable

15

Gouvernor Cup Ass'y

417004700

Unavailable

16

Pin M8 X 24

732804009

Unavailable

17

Hex. Locking Screw M6 x 18 | Formula Deluxe 500.

732601249

Unavailable

18

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

19

Washer

417005600

$4.09

20

Hex. Flange Nut M6

233061414

$1.68

21

Spring

417005700

$4.76

22

O-Ring

732401030

$0.98

23

Slider Shoe This part replaces 420460045.

417223021

$5.90

24

Loctite 609, 10 ml

413703100

$26.99

25

Roller

417222947

$21.99

26

Stopper Washer

417004302

$15.90

27

Pin

417004309

$25.99

28

Cotter Pin

250400060

$2.00

29

Spring (Red/blue) | Touring LE.

414691500

Unavailable

CLUTCH SPRING, RED/YELLOW - Call your local BRP dealership

414817500

Unavailable

30

Ramp 291 X

417222046

Unavailable

31

Hex. Screw M8 X 16

236281684

$4.12

32

Drive Belt

415060600

$104.99

33

Conical Spring Washer M12

250200005

$3.27

34

BOLT - Call your local BRP dealership

417113800

Unavailable

35

Ring Gear (86 tooth) | Skandic 500F. Skandic 500F (SWT).

415043100

Unavailable

36

Loctite 271, 10 ml

293800005

$26.99

37

High Altitude Kit (Not Shown) | Touring LE.

861763500

Unavailable

High Altitude Kit (Not Shown) | Touring SLE.

861763400

Unavailable

38

Clutch Repair Kit

417006100

$189.99

39

Puller Inner Half

529007900

$56.99

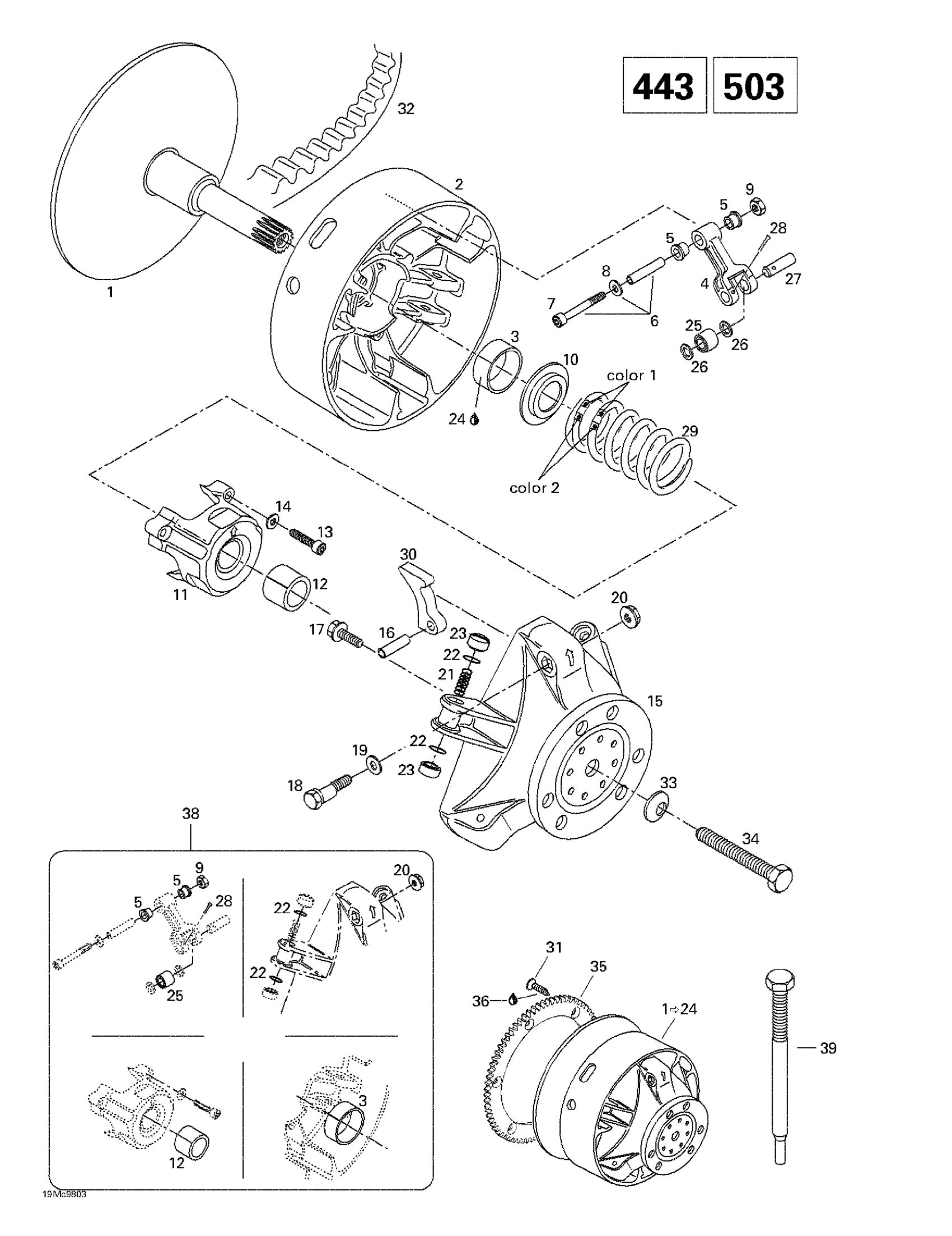

Ski-Doo Touring E, 1998 05- Drive Pulley (443, 503) Diagram

Drive Pulley Ass'y | Includes 1 - 23.

Inner Half Ass'y | Formula Z 583. Formula 583 Deluxe.

SLINDING FLANGE - Call your local BRP dealership | Includes 2 - 3. Formula Z 500.

Bushing

LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.

Bushing

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership

Flat Washer 6 mm

Elastic Stop Nut M6

Spring Seat

Spring Cover Ass'y | Includes 9 - 10.

Bushing

Allen Screw M6 x 40

WASHER - Call your local BRP dealership

Gouvernor Cup Ass'y

Pin M8 X 24

Hex. Locking Screw M6 x 18 | Formula Deluxe 500.

CALIBRATION SCREW - Call your local BRP dealership

Washer

Hex. Flange Nut M6

Spring

O-Ring

Slider Shoe This part replaces 420460045.

Loctite 609, 10 ml

Roller

Stopper Washer

Pin

Cotter Pin

Spring (Red/blue) | Touring LE.

CLUTCH SPRING, RED/YELLOW - Call your local BRP dealership

Ramp 291 X

Hex. Screw M8 X 16

Drive Belt

Conical Spring Washer M12

BOLT - Call your local BRP dealership

Ring Gear (86 tooth) | Skandic 500F. Skandic 500F (SWT).

Loctite 271, 10 ml

High Altitude Kit (Not Shown) | Touring LE.

High Altitude Kit (Not Shown) | Touring SLE.

Clutch Repair Kit

Puller Inner Half
