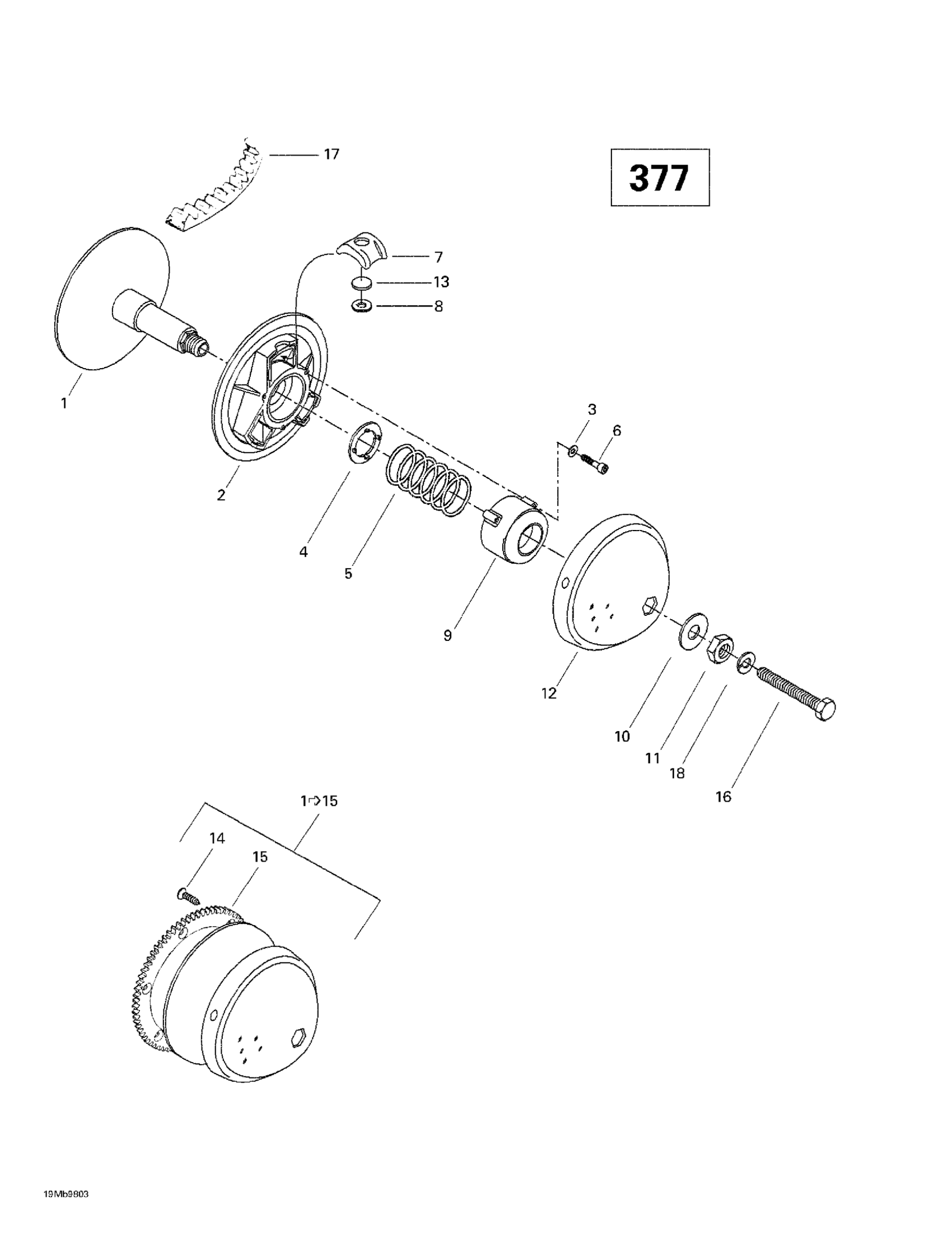

Ski-Doo Touring E, 1998 05- Drive Pulley (377) Diagram
#
Description
Price
1
Drive Pulley Ass'y | Includes 1 - 15. Touring E.
417220900
Unavailable
1
Inner Half | Formula SE.
417122300
Unavailable
2
Outer Sliding Flange | Formula S. Formula DLX 380.
417121300
Unavailable
3
WASHER - Call your local BRP dealership
420245370
Unavailable
4
Guide Washer | 380 F.
417116200
Unavailable
5
Spring (Green/Green) | Touring 380 F.
417125300
Unavailable
6
Allen Screw M6 x 40
222964066
Unavailable
7
CENTRIFUGE BLOCK - Call your local BRP dealership | CDN, USA
417118100
Unavailable
8
ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA
417120400
Unavailable
9
Spring Cover
417121400
Unavailable
10
Washer
417122400
Unavailable
11
NUT - Call your local BRP dealership
417118300
Unavailable
12
Cap
417125100
Unavailable
13
CAPSULE - Call your local BRP dealership | CDN, USA
417114500
Unavailable
14
Screw M6 x 16 | Formula Deluxe 380.
732600021
Unavailable
15
Ring Gear (86 Theet) | Formula Deluxe 380 F.
414807500
Unavailable
16
BOLT - Call your local BRP dealership
417113800
Unavailable
18
WASHER-LOCK HELICAL SPRING - Call your local BRP dealership
392002800
Unavailable
