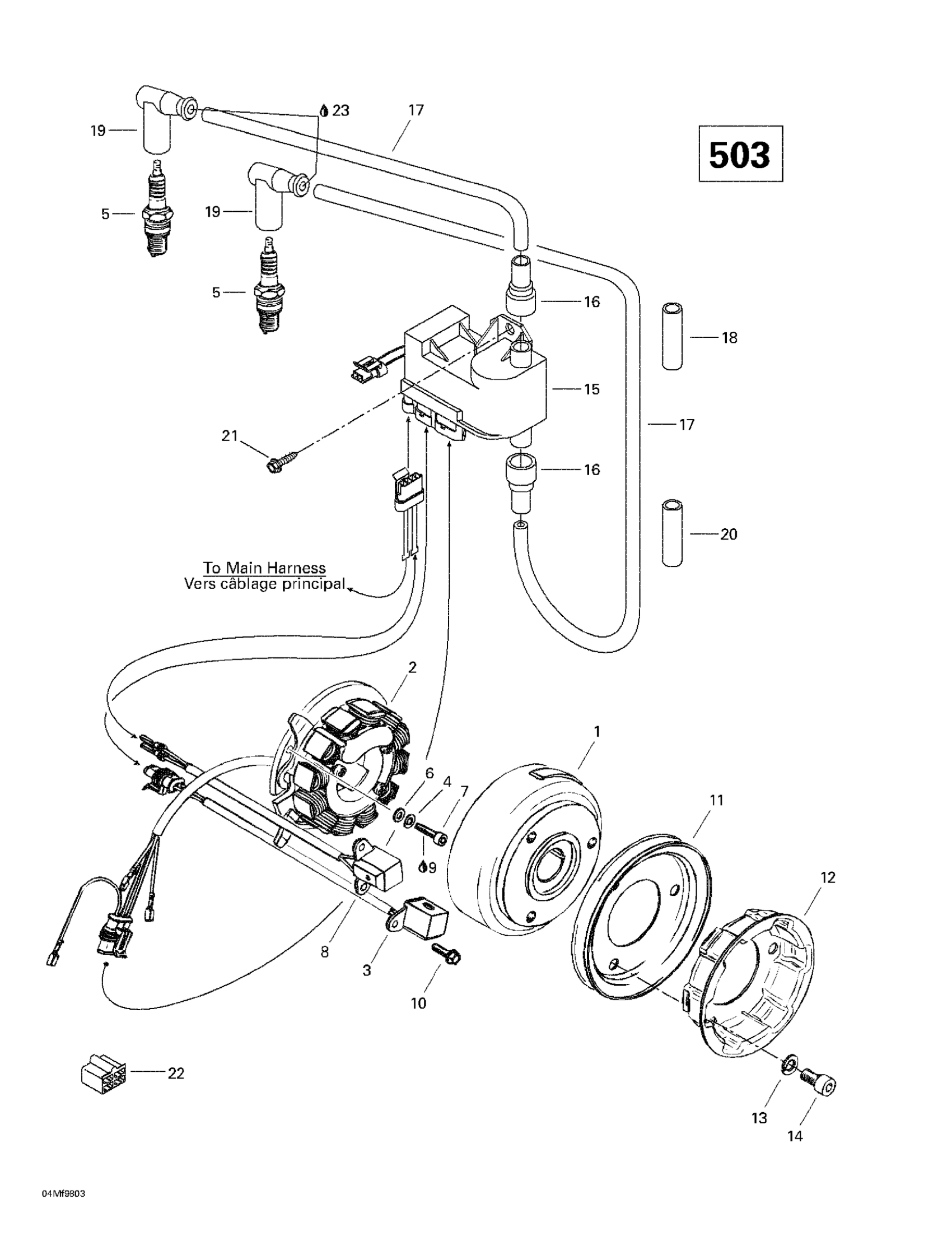

Ski-Doo Touring E, 1998 03- Magneto (503) Diagram

#

Description
Price

1

Magneto Ducati 12V240W | Includes 1 - 2. Touring SLE.

420887652

Unavailable

1

Flywheel

420996824

Unavailable

2

STATOR PLATE ASS'Y - Call your local BRP dealership | Touring SLE.

420886602

Unavailable

3

Pick-Up

420665163

$164.99

4

Lock Washer

420945750

Unavailable

5

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

6

Washer 5.3

420927574

$1.90

7

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

Unavailable

8

PICK-UP - Call your local BRP dealership

420665160

Unavailable

9

Loctite 243, 10 ml

293800060

$21.49

10

Taptite Screw M5 X 16

420941928

Unavailable

11

V-Belt Pulley

420980486

$37.99

12

Rope Sheave

420852414

$29.49

13

Lock Washer

420845311

$1.90

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Ignition Module | Touring SLE.

415080600

Unavailable

16

Protection Cap | Skandic 500F. Skandic 500F (SWT).

410112600

Unavailable

17

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

18

Tubing | Formula S.

410112800

Unavailable

19

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

20

Tubing (Meter)

410112900

Unavailable

21

Screw-hex.taping 12

365901400

Unavailable

22

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

23

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable
