Description

Price

1

PUMP MOUNTING FLANGE - Call your local BRP dealership

420910160

Unavailable

2

Oil Pump Ass'y | Formula S.

420887990

Unavailable

Oil Pump Ass'y

420887993

Unavailable

Oil Pump Ass'y | Touring SLE.

420887992

Unavailable

3

FLAT WASHER - Call your local BRP dealership

420927945

Unavailable

4

Oil Pump Gear, 27 Teeth

420935930

$16.33

5

Elastic Stop Nut M6

232561414

$0.55

6

Screw

420841971

$2.96

7

NEEDLE PIN - Call your local BRP dealership

420832260

Unavailable

8

Flat Washer 4

420244072

$1.01

9

Gear, 9 Teeth

420935970

$15.89

10

Taptite Screw M5 X 16

420941928

Unavailable

11

Washer | Formula Deluxe 380.

420945530

Unavailable

12

Sealing Washer

404146600

$2.97

13

Valve Ass’Y

420956010

$17.53

14

Banjo Bolt M6 X 16

404146800

Unavailable

15

Oil Hose 1500Mm Long

219704404

$17.26

16

Isolation Line 90 mm | 380 F.

420960750

Unavailable

17

Oil Hose 1500Mm Long

219704404

$17.26

18

Isolation Line

420960728

$4.44

19

Hose 6 Mm 15000Mm Long

219704360

$132.49

20

Clamp

420853840

$4.44

21

Loctite 243, 10 ml

293800060

$21.49

22

Dow Corning 111, 150 g

413707000

$59.99

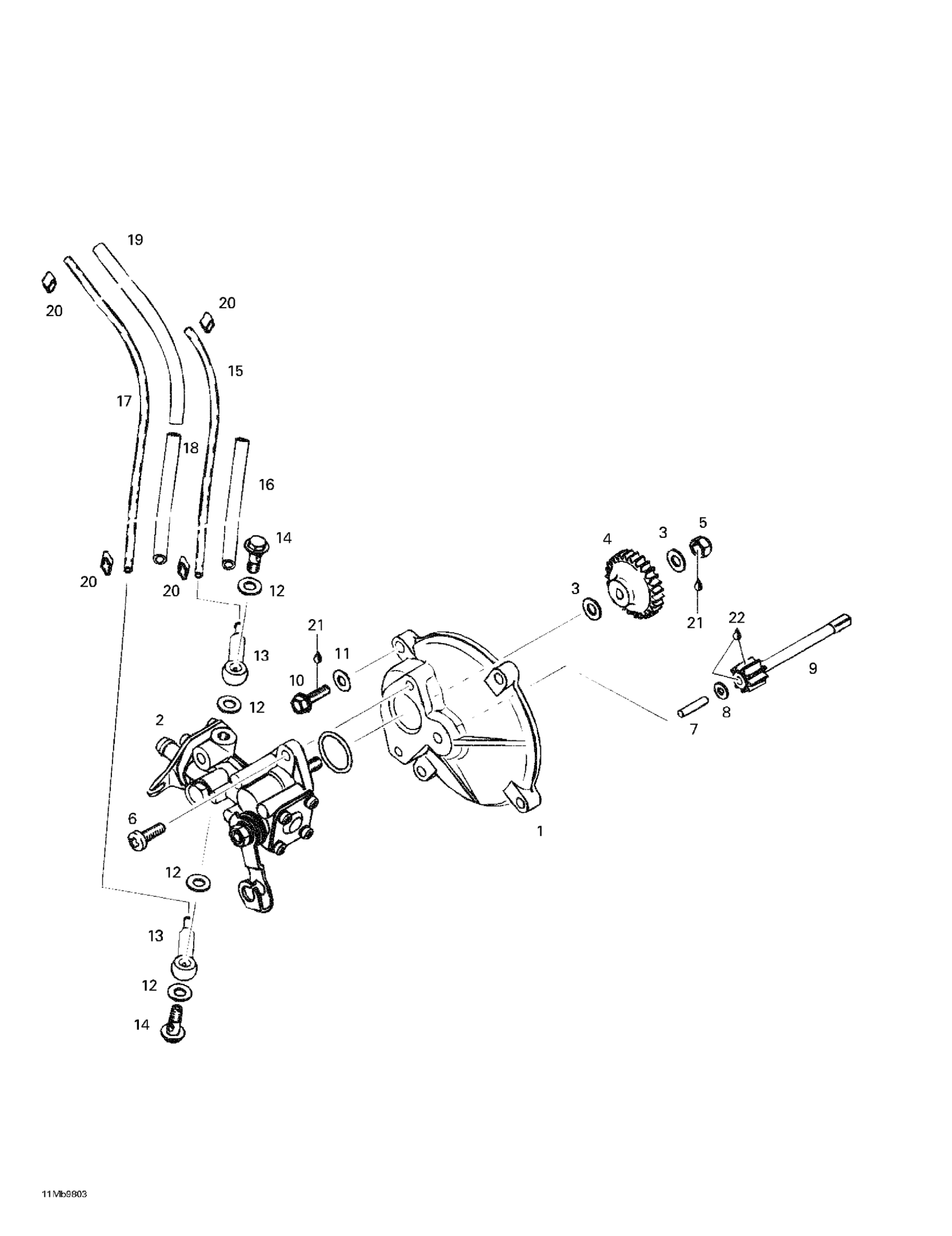

Ski-Doo Touring E, 1998 02- Oil Injection System Diagram

PUMP MOUNTING FLANGE - Call your local BRP dealership

Oil Pump Ass'y | Formula S.

Oil Pump Ass'y

Oil Pump Ass'y | Touring SLE.

FLAT WASHER - Call your local BRP dealership

Oil Pump Gear, 27 Teeth

Elastic Stop Nut M6

Screw

NEEDLE PIN - Call your local BRP dealership

Flat Washer 4

Gear, 9 Teeth

Taptite Screw M5 X 16

Washer | Formula Deluxe 380.

Sealing Washer

Valve Ass’Y

Banjo Bolt M6 X 16

Oil Hose 1500Mm Long

Isolation Line 90 mm | 380 F.

Oil Hose 1500Mm Long

Isolation Line

Hose 6 Mm 15000Mm Long

Clamp

Loctite 243, 10 ml

Dow Corning 111, 150 g
