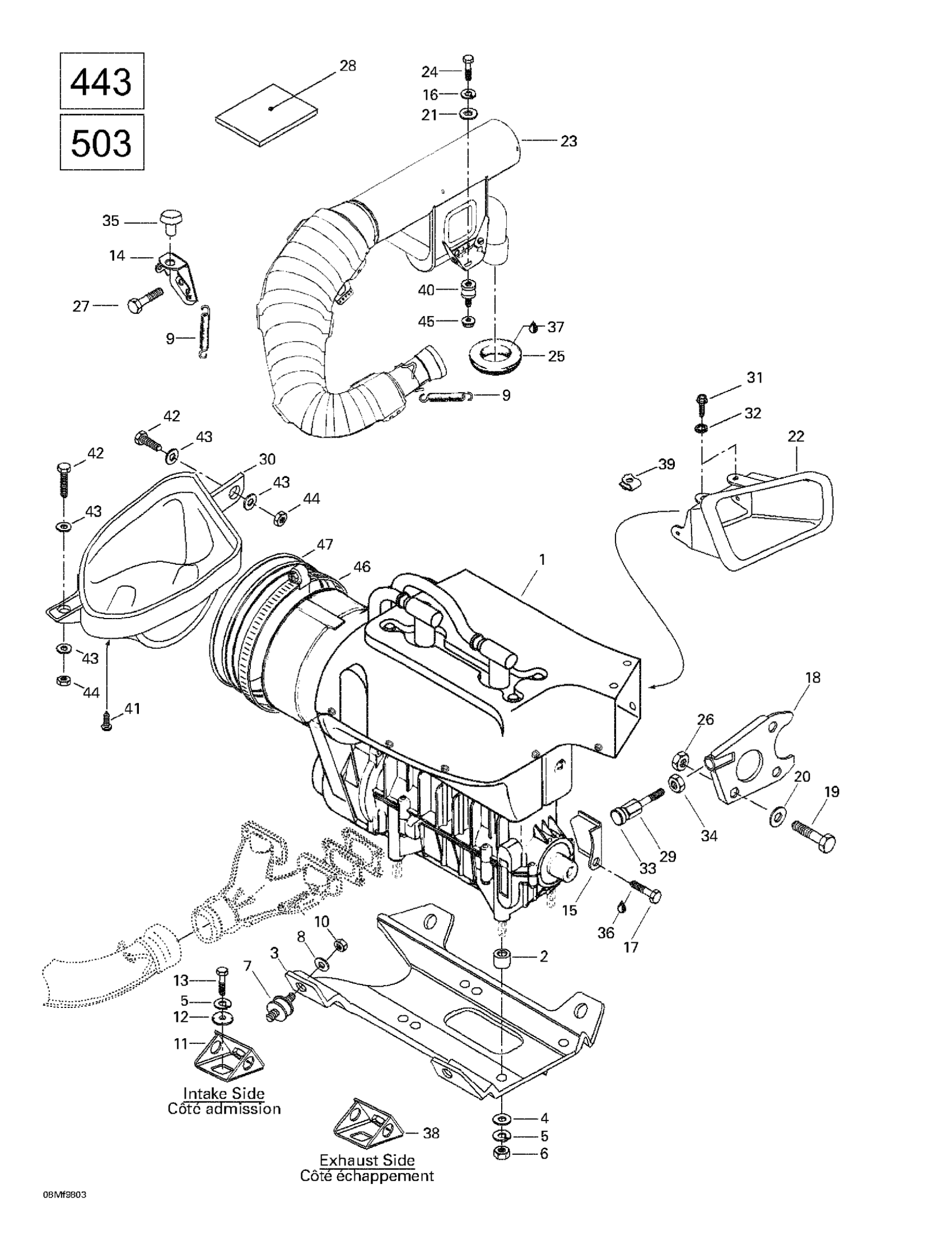

Ski-Doo Touring E, 1998 01- Engine Support And Muffler (443, 503) Diagram

#

Description
Price

1

<<443>> Engine | Touring LE.

400409000

Unavailable

<<503>> Engine | Touring SLE.

400509100

Unavailable

2

Spacer | Formula Deluxe 380.

512051900

Unavailable

SPACER - Call your local BRP dealership

512051800

Unavailable

3

Engine Support

512054500

Unavailable

4

Flat Washer 10 mm

234001410

$1.26

5

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

6

Hex. Nut M10 X 1.5

232006414

$1.37

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Flat Washer 10 mm

234001410

$1.26

9

SPRING - Call your local BRP dealership

517182100

Unavailable

Spring

415107100

$6.35

10

Elastic Locking Nut M10 X 1.5

233601416

$1.69

11

Engine Support

512050900

Unavailable

12

Lock Washer

512056700

$3.17

13

Hex. Screw M10 X 25

207102544

$1.37

14

Muffler Support

514044100

Unavailable

15

Stopper Plate

512052200

Unavailable

16

Lock Washer 8 mm

234181401

$0.92

17

Hex. Screw M8 X 20

207182044

$0.74

18

Support Plate

517271800

Unavailable

19

Hex. Screw M8 X 25

207182544

$0.90

20

Flat Washer 8 mm

234081410

$0.83

21

Flat Washer 8 mm | Touring LE. Touring SLE.

224081251

Unavailable

22

OUTLET DUCT - Call your local BRP dealership

572083700

Unavailable

Outlet Duct

572083900

Unavailable

23

Tune Pipe | Touring LE.

514097500

Unavailable

Tune Pipe | Touring LE.

514052100

Unavailable

Tuned-Pipe | Formula DLX 500 F.

514097600

Unavailable

24

Screw Hex. M8 x 12 | Formula 500. Formula 500 Deluxe.

222081265

Unavailable

25

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

26

Hex. Elastic Stop Nut M8

232581414

$0.56

27

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

28

Reflection Sheet | Formula DLX 500 F.

415064900

Unavailable

29

Screw

517244200

Unavailable

30

Inlet Duct

572097800

Unavailable

31

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

32

SERRATED LOCK WASHER M5 - Call your local BRP dealership

732900047

Unavailable

33

Rod retainer

570025100

Unavailable

34

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

35

Rubber Bumper

514053654

$50.99

36

Loctite 271, 10 ml

293800005

$26.99

37

Grease, Super Lube

293550030

$28.99

38

Support (Exhaust Side)

512057600

Unavailable

39

Speed Nut

389812800

Unavailable

40

Rubber Mount | Formula 500. Formula 500 Deluxe.

570016100

Unavailable

41

Tapping Screw

732601292

Unavailable

42

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

43

Washer

517124300

$0.19

44

Elastic Stop Nut M5 | Touring LE. Touring SLE.

222551045

Unavailable

45

Hex. Flange Elastic Nut M8

233281414

$1.47

46

Tridon Gear Clamp | MX Z 440 F.

408803700

Unavailable

47

Rubber Adaptor | MX Z 440 F.

570068200

Unavailable
