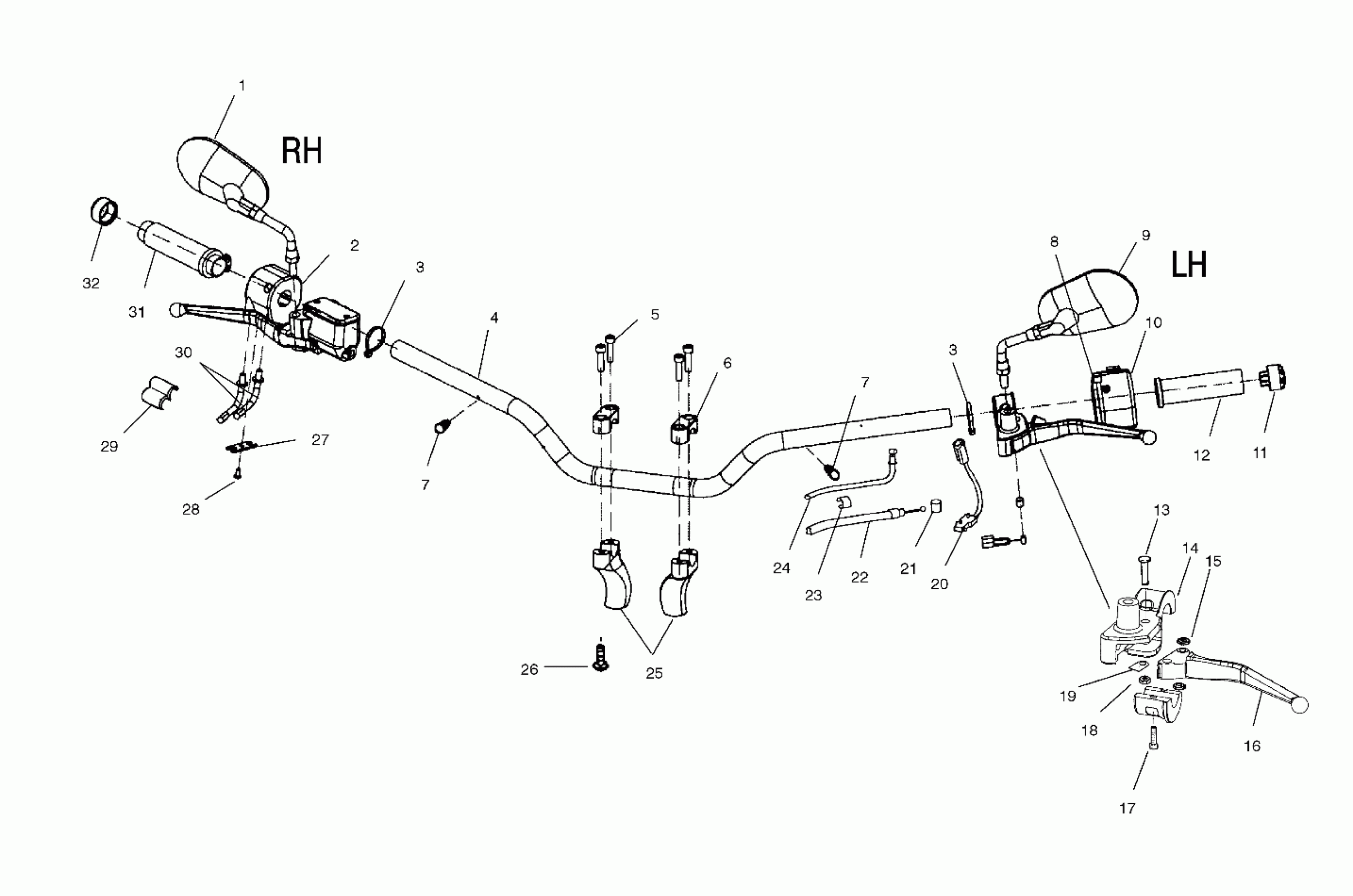

Polaris TOURING CRUISER ALL OPTIONS - V02TB16 STEERING, HANDLEBAR - V02TB16/ALL OPTIONS (4976287628A08) Diagram

#

Description
Price

1

Mirror, RH

2632261

$102.38

2

Switch, Hand Control, RH

4110241

$124.99

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

4

Handlebar

5244788

Unavailable

5

SCREW

7517361

$23.99

6

Cap, Riser

5333903

$61.90

7

DART, HANDLEBAR

5433140

Unavailable

7

DART, HANDLEBAR

5433140

Unavailable

8

Lever, Fast Idle

5433444

Unavailable

9

Mirror, LH

2632260

$102.38

10

Switch, Hand Control, LH

4110240

Unavailable

10

Screw

7517366

Unavailable

11

Cap, Handlebar End, LH

5432692

Unavailable

12

Grip, Handlebar, LH

5411256

$40.46

13

Kit - Lever Hardware [15,18,19]

2201229

$35.08

13

Pin, Clutch Lever Screw

5020946

$21.03

14

Bracket, Clutch/Mirror, LH

5131654

$30.32

15

WASHER, CLUTCH LEVER

-------

Unavailable

16

Lever, Clutch Hand, LH

5131562

$91.27

17

Kit - Clutch Clamp Hardware [Incl. Clamp and Screws]

2201230

$45.38

17

Cap, Clutch/Mirror, LH

5131655

$41.27

17

Screw

7517630

$2.38

18

NUT, NYLOK

-------

Unavailable

19

CLIP, SWITCH

-------

Unavailable

20

Switch, Safety Clutch

4110257

Unavailable

21

Bushing, Clutch Cable, Upper

5433071

Unavailable

22

Cable, Clutch w/Nylon Cable

7081017

$164.43

23

Clip, Clutch, Fast Idle Cable

5433070

Unavailable

24

Cable, Fast Idle

7080716

Unavailable

25

Riser, Handlebar

5132424

$49.21

26

Screw

7517586

Unavailable

27

Retainer, Throttle Cable

5242448

Unavailable

28

SCREW

7517420

Unavailable

29

Clip, Throttle Cables, Dual

5433039

Unavailable

30

Cable, Throttle, Push

7080724

Unavailable

30

Cable, Throttle, Pull

7080725

Unavailable

31

Grip, Throttle Handlebar

5411255

$38.41

32

Cap, Handlebar End, RH

5432715

$36.19
