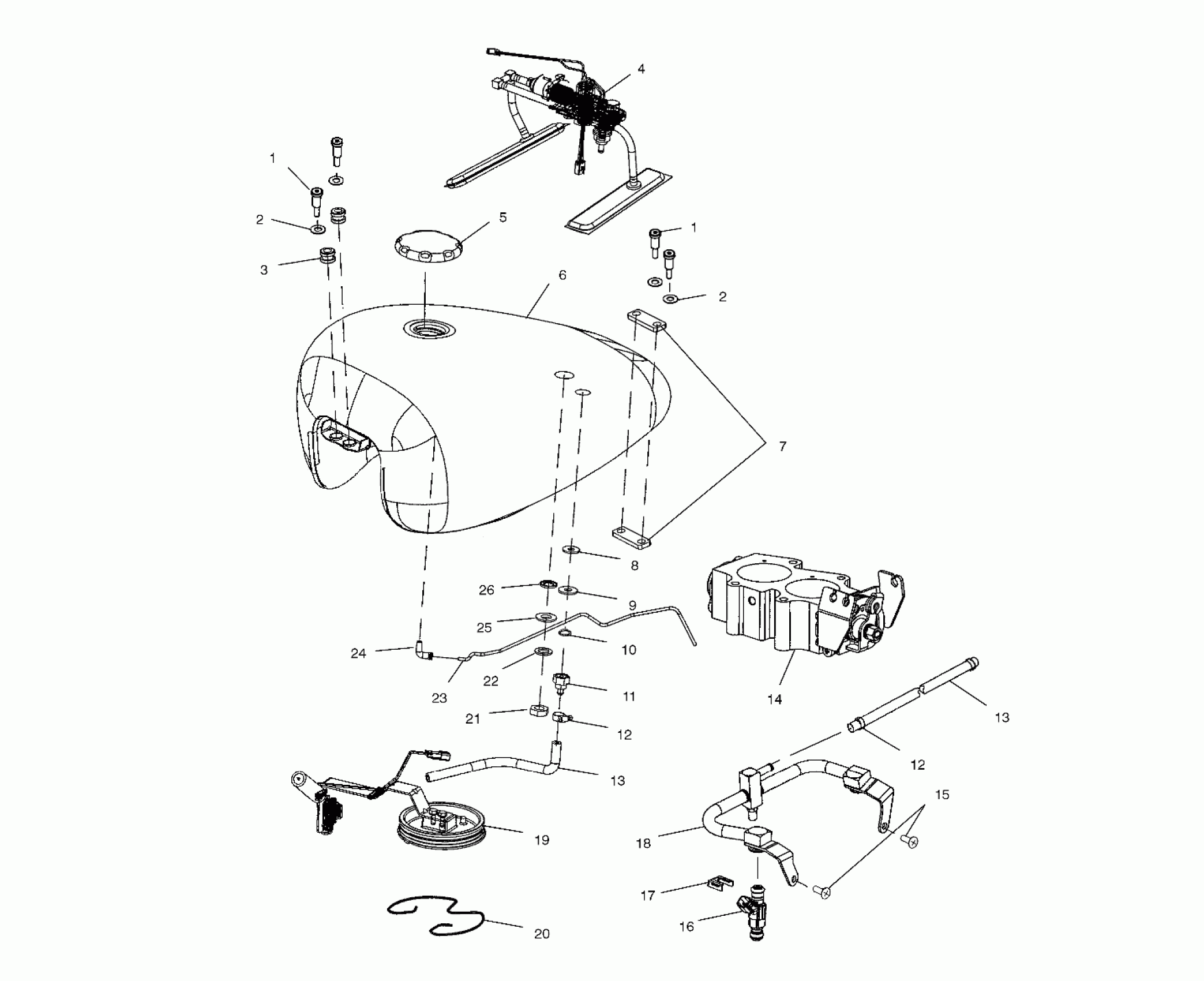

Polaris TOURING CRUISER ALL OPTIONS - V02TB16 FUEL SYSTEM, FUEL TANK, LINES and THROTTLE BODY - V02TB16/ALL OPTIONS (4976287628D08) Diagram

#

Description
Price

1

Screw, Socket Head

7517723

Unavailable

1

Screw, Socket Head

7517723

Unavailable

2

Washer, Flat

7556123

Unavailable

2

Washer, Flat

7556123

Unavailable

3

Grommet, Rubber, Front

5811878

Unavailable

4

Filter, Fuel Line, Internal

2520245

Unavailable

4

Pump, Fuel [Incl. 8-11,21,22,25,26]

2520212

Unavailable

5

Cap, Fuel

5132333

Unavailable

6

Tank, Fuel w/Stripes (Black)

1013279A20

Unavailable

6

Tank, Fuel (Blue/Silver)

1013279A14

Unavailable

6

Tank, Fuel (Red/Silver)

1013279A18

Unavailable

7

Pad, Tank Mount, Rear

5411796

Unavailable

8

Grommet

5412093

Unavailable

9

Washer

7556131

$3.17

10

O-Ring

5411869

Unavailable

11

Fitting

2520251

Unavailable

12

Clamp, Hose

7080894

$7.14

12

Clamp, Hose

7080894

$7.14

13

Hose

5411942

$39.99

13

Hose

5411942

$39.99

14

Asm., Throttle Body

1253363

$519.99

14

Cap, Fitting

5411886

$8.89

15

SCREW

7517405

$10.39

16

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

16

Injector, Fuel

1253405

Unavailable

17

Clip, Injector Clocking

7670129

Unavailable

18

Asm., Fuel Rail

2520207

Unavailable

19

O-Ring

5412071

Unavailable

19

Sender, Fuel Level

4010373

Unavailable

20

Ring, Retaining

7710515

Unavailable

21

Nut

7547186

$4.76

22

Washer

7556192

Unavailable

23

Line, Vent

5433950

$12.30

24

Elbow, Vent Line

5411972

$1.98

25

Washer

7556193

Unavailable

26

Grommet

5412095

Unavailable
