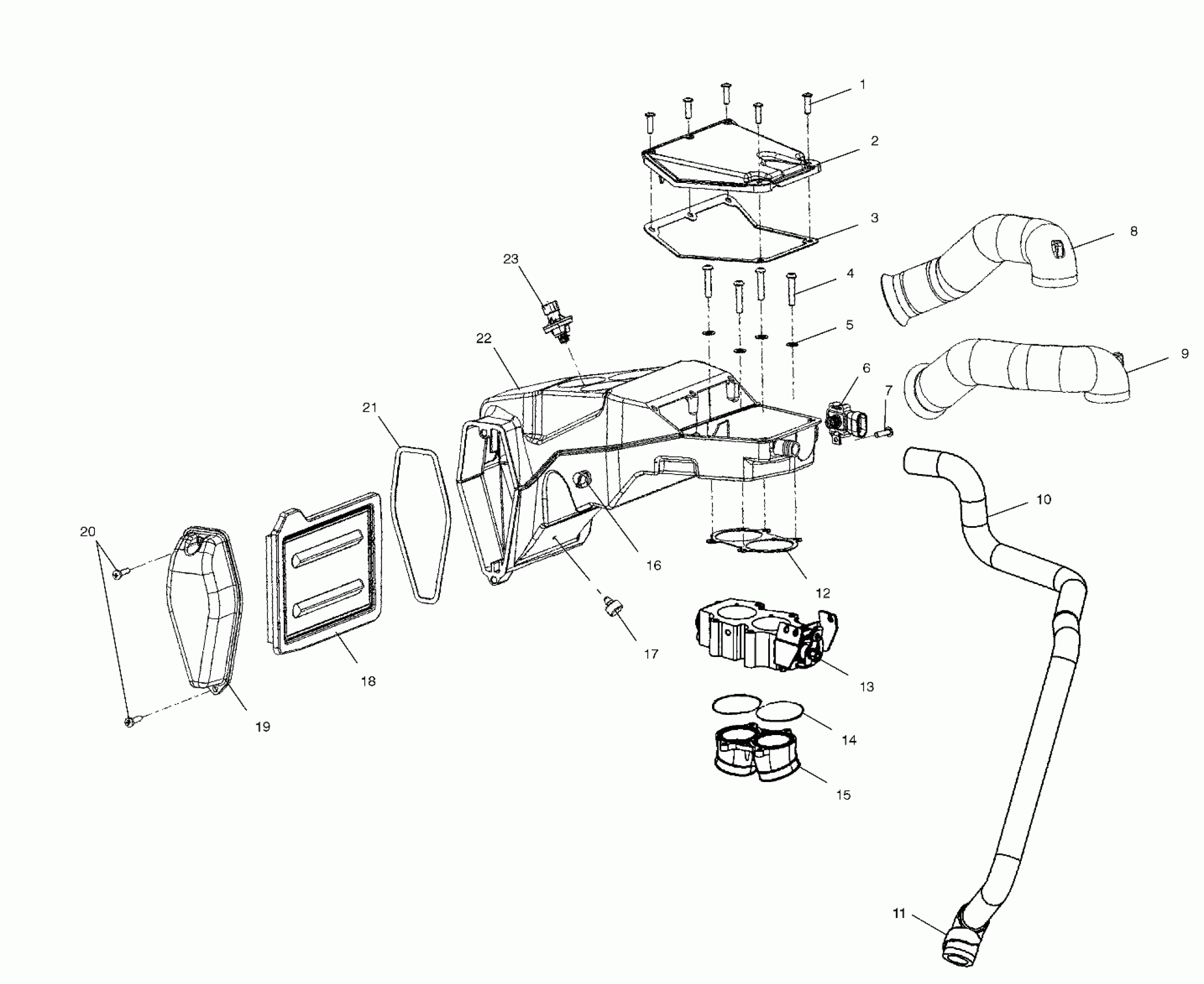

Polaris TOURING CRUISER ALL OPTIONS - V02TB16 ENGINE, AIR BOX - V02TB16/ALL OPTIONS (4976287628C06) Diagram

#

Description
Price

1

Screw

7517842

$3.48

2

Cover, Airbox

5433466

$44.99

3

Seal, Airbox Cover

5811867

Unavailable

4

Screw, Button Head

7517885

$5.56

5

WASHER, FLAT

7556121

$1.19

6

SENSOR, MAP [SEE ELECTRICAL PG. C1, REF. 10]

----

Unavailable

7

Bracket, MAP Sensor

5211907

Unavailable

8

Tube, Intake, RH

5433471

$25.40

9

Tube, Intake, LH

5433470

$40.46

10

Hose, Breather

5434070

Unavailable

11

CLAMP, BREATHER HOSE

7080782

$6.10

12

Gasket, Airbox

5811908

$9.52

13

ASM., THROTTLE BODY [See Fuel System Pg. D8, Ref. 14]

----

Unavailable

14

O-Ring

5412259

$1.59

15

Adapter, Throttle Body

1253335

$159.99

16

Clip, Retainer

5432302

Unavailable

17

Bumper, Rubber

5811869

$4.35

18

Filter, Air

7080858

$21.81

19

Cover, Air Filter

5433469

Unavailable

20

Screw

7517816

$29.99

21

Seal, Filter, Access Hatch

5811866

$11.51

22

Airbox

1013720

$117.37

23

SENSOR, AIR TEMPERATURE [SEE ELECTRICAL PG. C1, REF. 6]

----

Unavailable
