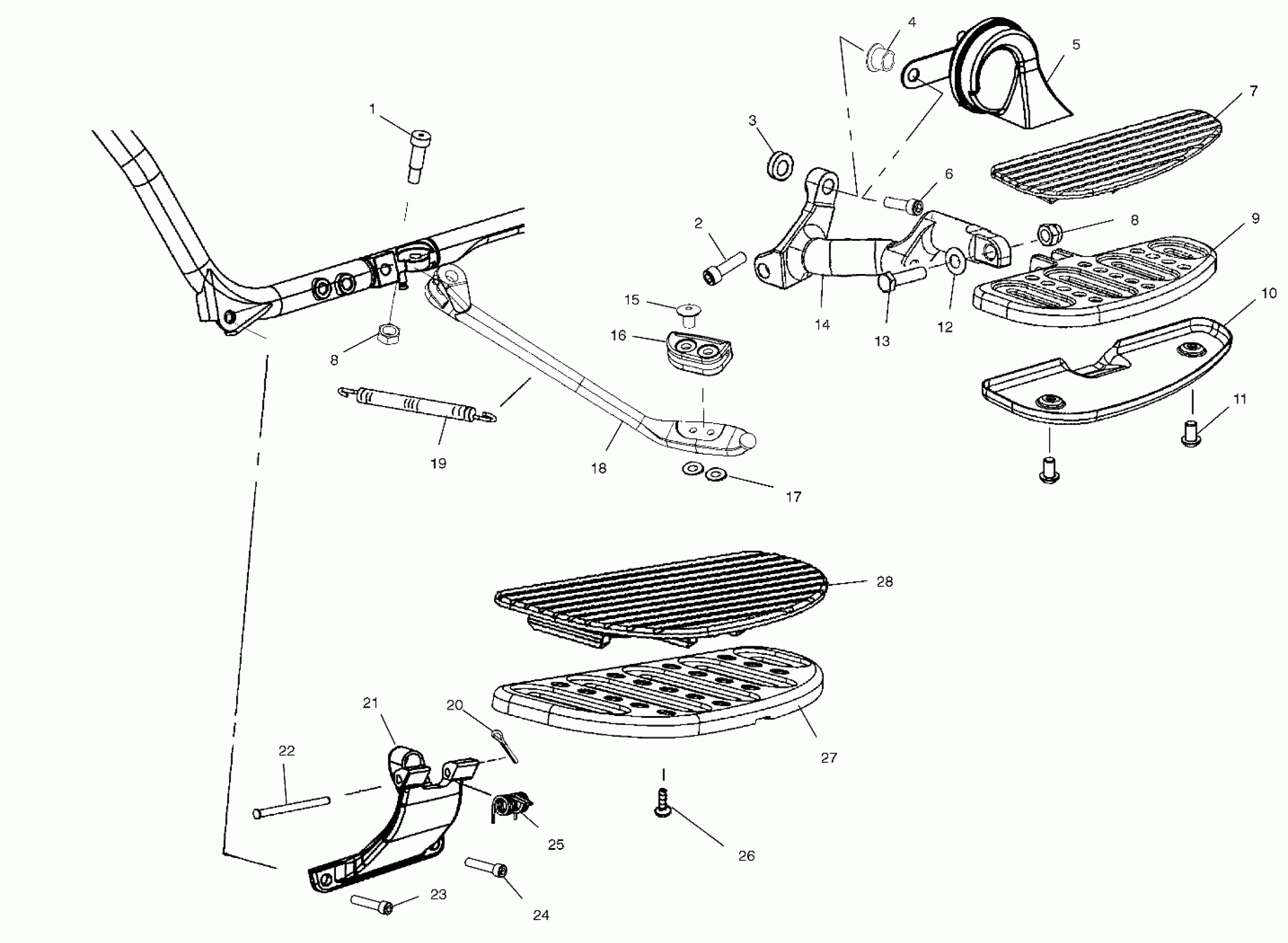

Polaris TOURING CRUISER ALL OPTIONS - V02TB16 CHASSIS, FLOOR BOARD and SIDE STAND - V02TB16/ALL OPTIONS (4976287628A06) Diagram

#

Description
Price

1

Screw

7517404

Unavailable

2

Screw

7517989

$5.40

3

Spacer

5133113

Unavailable

4

Spacer

5132658

$3.92

5

Horn

4010688

$86.51

6

SCREW

7517554

Unavailable

7

Pad, Floorboard, Passenger, LH

5411871

$36.83

7

Pad, Floorboard, Passenger, RH

5411872

$36.03

8

NUT

7547039

Unavailable

8

NUT

7547039

Unavailable

9

Floorboard, Passenger, LH

5133098

$112.60

9

Floorboard, Passenger, RH

5133099

$112.60

10

Cover, Floorboard, Passenger, LH

5245624

$26.98

10

Cover, Floorboard, Passenger, RH

5245625

$30.32

11

SCREW

7517406

Unavailable

12

Washer, Spring

7556046

$4.35

13

SCR-HEXHD,M10X40,0600088

7517993

$4.99

14

Support, Footpeg, Passenger, LH

5246161-067

$163.49

14

Support, Footpeg, Passenger, RH

5246162-067

$163.49

15

RIVET

7661064

Unavailable

16

Pad, Side Stand

5411745

Unavailable

17

WASHER, FLAT

7556121

$1.49

18

Stand, Side [Incl. 15,16]

1013062

Unavailable

19

Spring

7042047

$49.99

20

PIN, COTTER

7661094

Unavailable

21

Support, Floorboard, LH

5132429-067

Unavailable

21

Support, Floorboard, RH

5132430-067

$216.99

22

PIN, FLOORBOARD SUPPORT

7661095

$2.99

23

SCREW

7517367

Unavailable

24

Screw

7518057

$3.57

25

Spring, Floorboard Support

7041623

$27.99

26

Screw

7517694

$8.71

27

Floorboard, LH

5132228

Unavailable

27

Floorboard, RH

5132229

Unavailable

28

Pad, Floorboard, LH

5412025

$36.83

28

Pad, Floorboard, RH

5412026

$36.83
