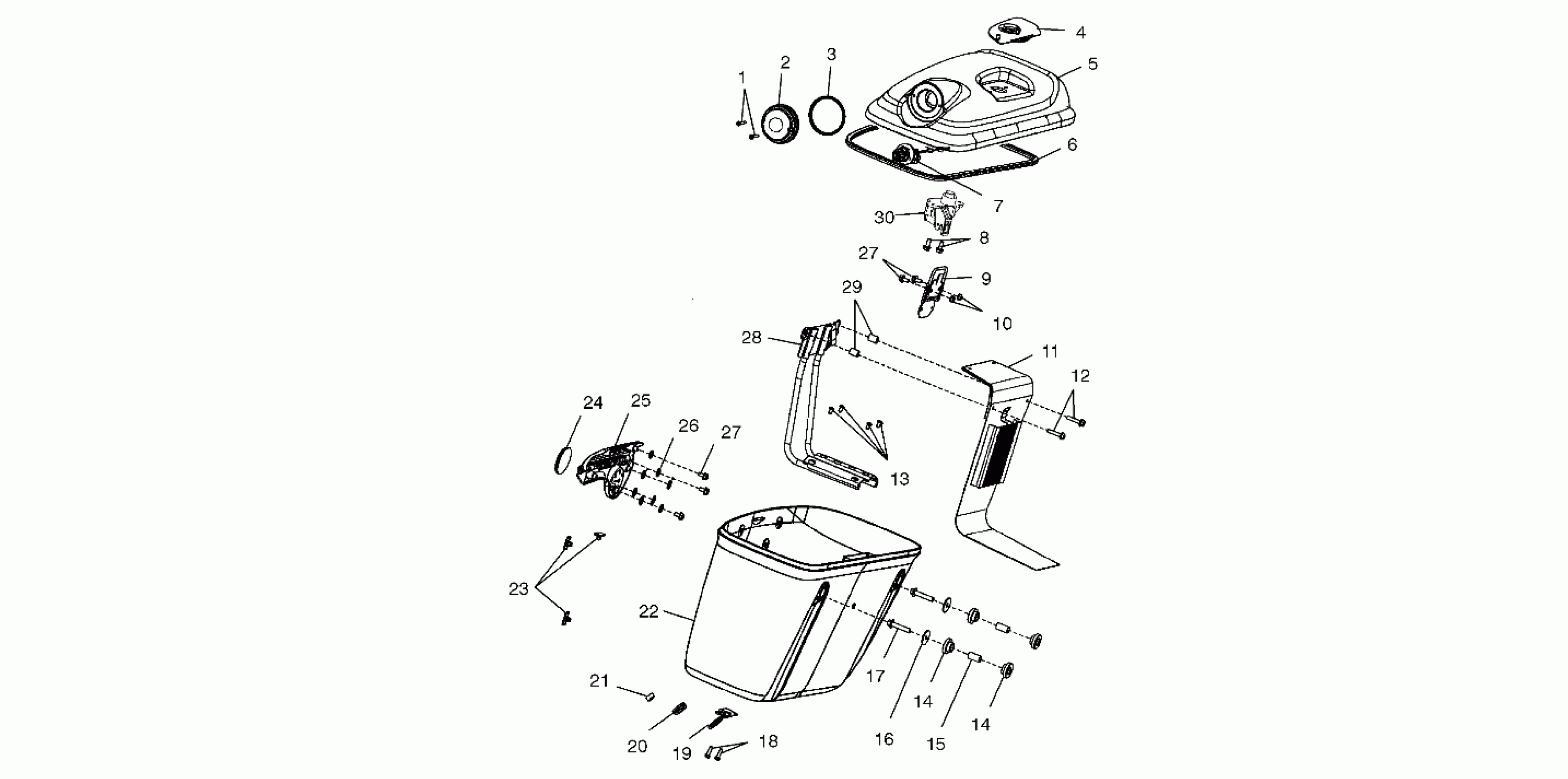

Polaris TOURING CRUISER ALL OPTIONS - V02TB16 BODY, SADDLEBAGS - V02TB16/ALL OPTIONS (4976287628B13) Diagram

#

Description
Price

1

Screw

7517895

Unavailable

2

Lens, Turn Signal

5432770

Unavailable

3

Bezel, Turn Signal

5433931

Unavailable

4

Cover, Lock, LH [Black]

5132754-266

Unavailable

4

Cover, Lock, RH [Black]

5132755-266

$119.05

4

Cover, Lock, LH [Blue]

5132754-341

Unavailable

4

Cover, Lock, RH [Blue]

5132755-341

$297.62

4

Cover, Lock, LH [Red]

5132754-342

Unavailable

4

Cover, Lock, RH [Red]

5132755-342

Unavailable

5

Cover, Side Bag, LH [Black]

5433222-266

$464.99

5

Cover, Side Bag, RH [Black]

5433223-266

Unavailable

5

Cover, Side Bag, LH [Blue]

5433222-341

Unavailable

5

Cover, Side Bag, RH [Blue]

5433223-341

$494.99

5

Cover, Side Bag, LH [Red]

5433222-342

$434.99

5

Cover, Side Bag, RH [Red]

5433223-342

$434.99

6

Seal, Saddlebag

5521540

$9.84

7

Asm., Turn Signal, Rear

2410264

$135.30

7

Bulb, Turn Signal, Rear

4010517

$11.51

8

Screw

7517770

$2.38

9

Latch

1013142

$24.60

10

Nut, Flange

7710495

$5.22

11

Strap, Hinge, LH

2682989

$93.32

11

Strap, Hinge, RH

2682563

$88.56

12

SCREW

7518003

$4.76

13

Screw

7517894

$1.98

14

Pad, Bag Mount, Inner

5812112

$2.62

14

Pad, Bag Mount, Inner

5812112

$2.62

15

Sleeve, Bag Mount

5245211

Unavailable

16

Washer, Flat

7556219

$6.35

17

SCREW

7517881

$1.98

18

Screw

7517690

$2.60

19

Bracket, Mount, Black, LH

5245693-067

$21.27

19

Bracket, Mount, Black, RH

5244753-067

$19.84

20

Grommet

5411841

$5.00

21

Sleeve, Windshield Mount

5133068

$5.56

22

Bag, Side, LH [Blue/Silver]

5433186A14

Unavailable

22

Bag, Side, RH [Blue/Silver]

5433187A14

Unavailable

22

Bag, Side, LH [Red/Silver]

5433186A18

$567.63

22

Bag, Side, RH [Red/Silver]

5433187A18

$649.99

22

Bag, Side, LH [Black]

5433186A20

$619.99

22

Bag, Side, RH [Black]

5433187A20

Unavailable

23

Clip, Wire

7670138

$4.21

24

Reflector, Round, Red

5433921

$32.37

25

Asm., Hinge, LH

2632149

$434.99

25

Asm., Hinge, RH

2632150

$434.99

26

Washer, Rubber

5812197

Unavailable

27

SCREW

7517257

$9.52

27

SCREW

7517257

$9.52

28

Support, Inner, Left, Black

1013140-067

$130.95

28

Support, Inner, Right, Black

1013248-067

$147.62

29

Spacer, Strap

5132855

$4.76

30

Lock, Saddlebag

7080915

Unavailable
