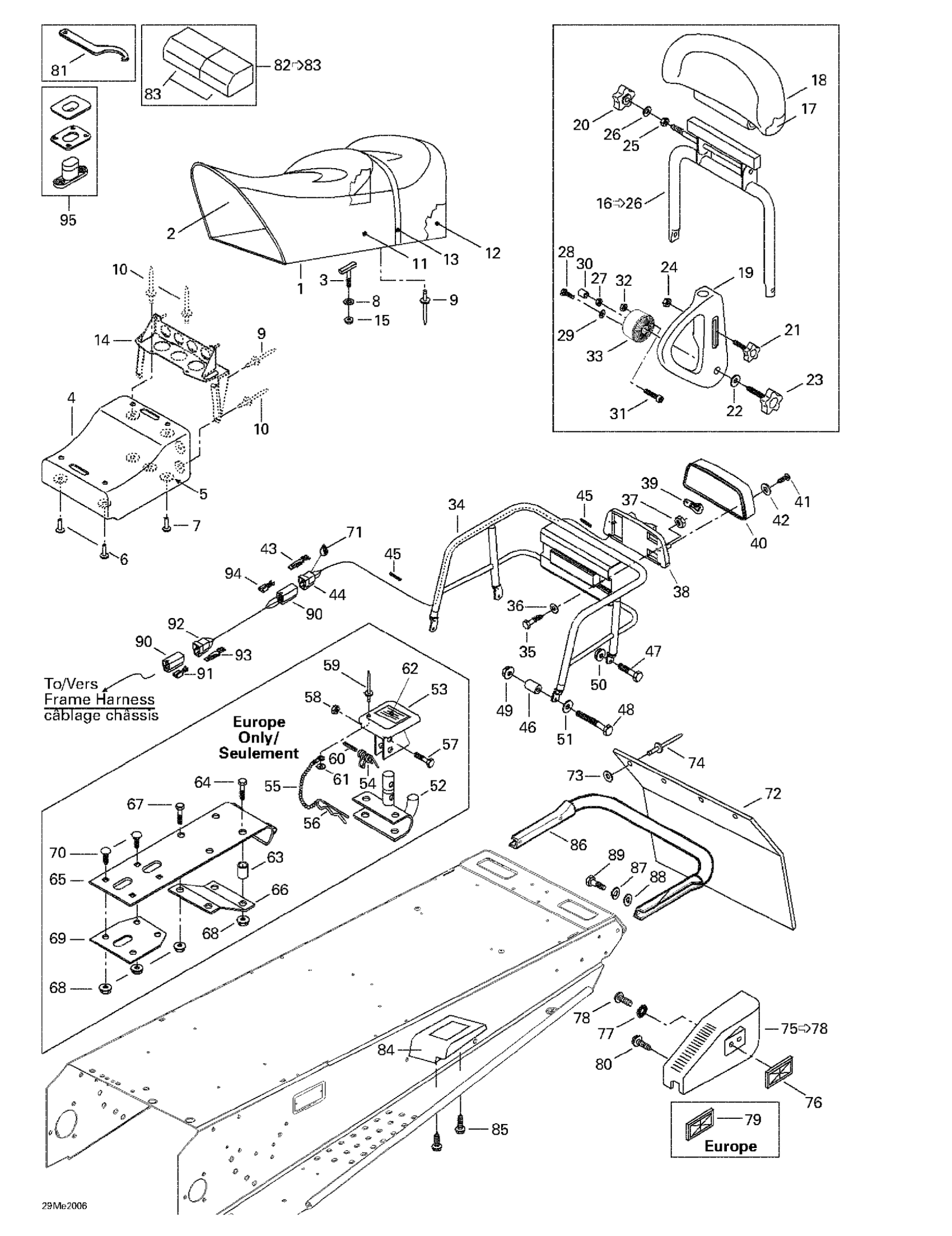

Ski-Doo Touring 500 LC, 2000 09- Seat And Accessories Diagram

Not Available As Spare Part - Friction Washer

Unavailable

Sub Seat

510003597

Unavailable

«T» Bolt

732601221

Unavailable

Rear Trunk | GT 700.

572051200

Unavailable

Flat Washer M5

234051410

$0.53

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Push Nut

732610072

$2.19

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Seat Cover

510003705

Unavailable

Seat Foam

415038202

Unavailable

Seat Belt

415064800

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Seat Backrest Ass'y | Includes 27 - 42. 500 F.

510003717

Unavailable

Foam

510003779

Unavailable

Cover | 500 F.

510003780

Unavailable

Arm RH | GT 550F

510003542

Unavailable

Arm LH | GT 550F

510003607

Unavailable

Fem. Handle M8 x 1.25 mm | GT 550F

510003532

Unavailable

Handle M8 X 35 | Model-T3

510003533

$44.49

WASHER - Call your local BRP dealership | GT 550F

732900050

Unavailable

Male Handle M12 x 50 mm | GT 550F

510003534

Unavailable

Hex. Nut | GT 550F

510003576

Unavailable

Hex. Nut | GT 550F

510003578

Unavailable

Lock Washer | GT 550F

510003584

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Hex. Screw M8 X 25

207182544

$0.90

Lock Washer 8 mm, Stainless

234181601

$0.55

Hose | GT 550F

510003628

Unavailable

Socket Head Screw M8 x 50

205085044

$1.90

Hex. Elastic Stop Nut M8

232581414

$0.56

Pivot

510003707

Unavailable

Rack | GT

517273100

Unavailable

Hex. Screw M5 X 30

207053044

$1.16

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

Hex. Flange Elastic Nut M5

233251414

$1.04

LAMP HOUSING - Call your local BRP dealership

515175397

Unavailable

Bulb

520000758

$9.10

Lens

414513700

$28.99

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

Washer - Call your local BRP dealership

414516400

Unavailable

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

Spacer

517185600

Unavailable

Hex. Screw M6 X 18

207161844

$0.76

Hex. Screw M6 X 40

207064044

$1.48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Nut M6

233061414

$1.68

Flat Washer 6 mm

234061410

$1.36

Hitch | Europe

517199300

Unavailable

Hitch Protector | Europe

517152700

Unavailable

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Hair Pin

114045200

$11.11

Hex. Screw M6 X 30

207063044

$1.26

Elastic Stop Nut M6

232561414

$0.55

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Instruction Label (Hitch)

414998500

Unavailable

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

Support

511000019

Unavailable

REINFORCEMENT - Call your local BRP dealership | Europe

511000022

Unavailable

Hex. Screw M6 X 18

207161844

$0.76

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Inner Plate

517256100

Unavailable

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

Snow Guard | Formula Deluxe 380 F.

572059700

Unavailable

Flat Washer

517225900

$0.18

Pop Rivet 3/16"

293150100

$1.09

RH Moulding Ass'y (Cargo)

580642800

Unavailable

LH Moulding Ass'y (Cargo)

580642900

Unavailable

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

Adjustment Wrench

529000035

$2.09

TOOL KIT - Call your local BRP dealership

529035500

Unavailable

DRIVER SCREW - Call your local BRP dealership

529019200

Unavailable

Socket Wrench 10/13 mm

529014900

$0.94

Socket Wrench 21/26 mm

529014800

Unavailable

FORK WRENCH - Call your local BRP dealership

529017300

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

MULTI-WRENCH - Call your local BRP dealership

529014700

Unavailable

Was 412500100 Rope-Starter

219704403

$158.99

Starter Grip

529000060

$14.15

Spacing Tool

529035501

$4.72

FORK WRENCH 15/17 MM - Call your local BRP dealership

529000003

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

RH Footrest | Sport GT / SE GT

572088700

Unavailable

LH Footrest | Sport GT / SE GT

572088800

Unavailable

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

Rear Bumper

517243800

Unavailable

Lock Washer 8 mm

234181401

$0.92

Flat Washer 8 mm

234081410

$0.83

Hex. Screw M8 X 20

207182044

$0.74

Female Housing

409204300

Unavailable

Female Terminal

561503100

$2.41

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

Female Terminal

561503100

$2.41

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable
