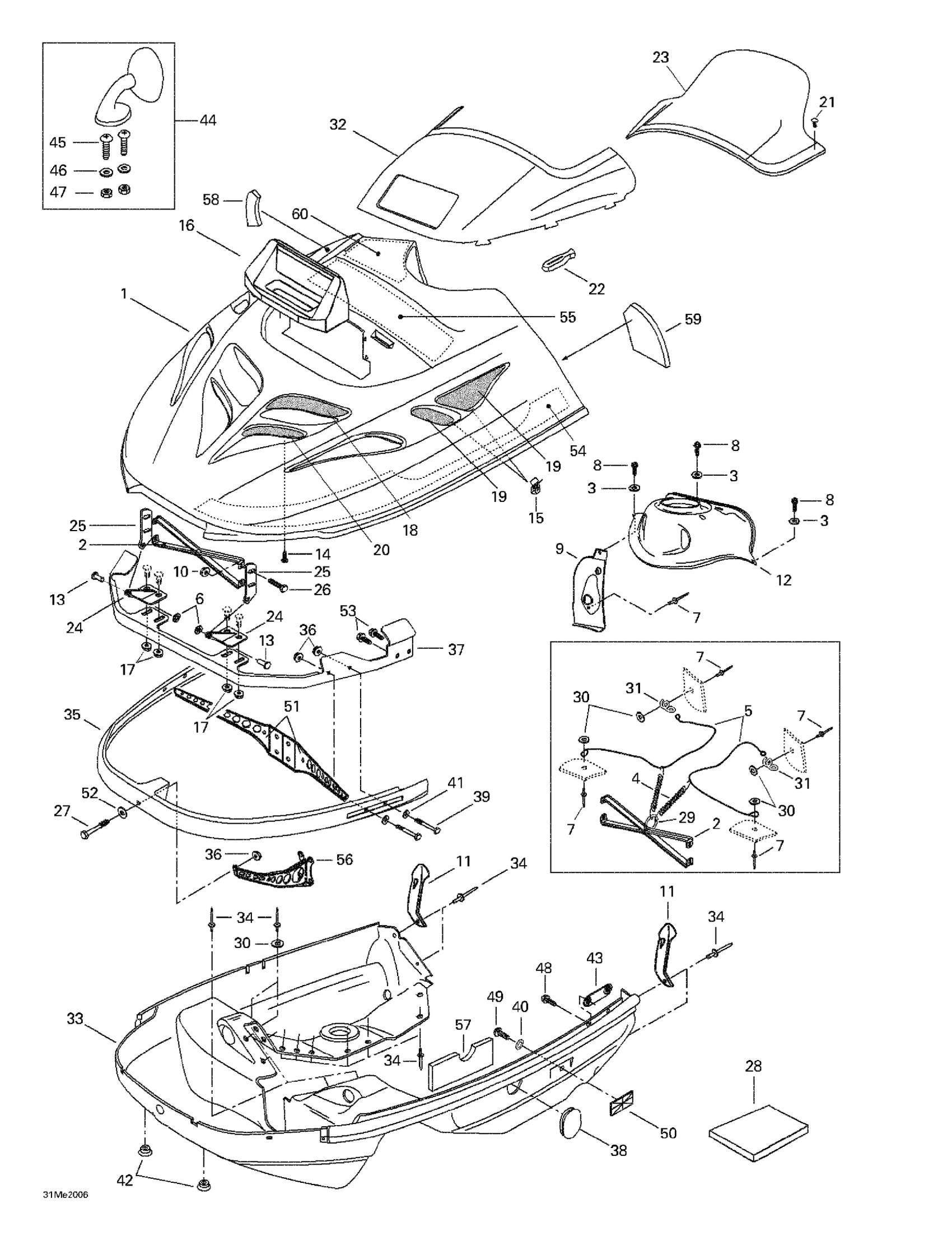

Ski-Doo Touring 500 LC, 2000 09- Cab, Console Diagram

#

Description
Price

1

Cab (Black)

517302319

Unavailable

2

Hood Reinforcement

517278100

Unavailable

3

Washer | DS 650 X

391301600

$0.48

4

Spring

414763300

Unavailable

5

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

6

Push Nut

389804300

$0.53

7

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

8

Forming Screw M5 x 16

250000676

$1.01

9

Dash-Handle | Formula DLX 500 LC.

572052100

Unavailable

10

Hex. Flange Elastic Nut M5

233251414

$1.04

11

Hood Latch

570027100

$13.49

12

Dash-Switch | Formula S.

517302160

Unavailable

13

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

14

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

15

Edge Clip

517302785

$0.88

16

Sealing Foam | Skandic 600.

415044800

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

RH Upper Grill Ass'y

517298400

Unavailable

LH Upper Grill Ass'y

517298500

Unavailable

19

Side Grill (Black)

517280200

Unavailable

20

RH Lower Grill

517298600

Unavailable

LH Lower Grill

517298700

Unavailable

21

Dart

414939500

$1.04

22

Windshield Latch

570023800

$4.49

23

HIGH WINDSHIELD (19) - Call your local BRP dealership

414939100

Unavailable

24

Welded Lower Hinge

517289900

Unavailable

25

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

26

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

27

Hex. Screw M6 X 40

207064044

$1.48

28

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

29

RING - Call your local BRP dealership

415058300

Unavailable

30

Washer

517124300

$0.19

31

Bracket

517262800

Unavailable

32

Windshield Support

572101800

Unavailable

33

Bottom Pan (Black) | Formula Deluxe 380 F.

502006572

Unavailable

34

Pop Rivet 3/16"

390906800

$0.93

35

Front Bumper

517265400

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

37

Hinge Bracket

517296600

Unavailable

38

BOTTOM PAN CAP (BLACK) - Call your local BRP dealership | Formula Deluxe 380 F.

570053702

Unavailable

39

Hex. Screw M6 X 30

207063044

$1.26

40

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

41

Flat Washer

224061121

$0.53

42

CAP - Call your local BRP dealership

572072100

Unavailable

43

Side Bracket

517267100

Unavailable

44

RH MIRROR - Call your local BRP dealership

414971910

Unavailable

LH MIRROR - Call your local BRP dealership

414972010

Unavailable

45

Screw M4 x 20 | Legend 380 F. Legend 550 F.

222842065

Unavailable

46

Washer

517124300

$0.19

47

Elastic Stop Nut M4

232541414

$0.58

48

Hex. Flange Screw M6 X 16

210261650

$1.67

49

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

50

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

51

LH Support

517295000

Unavailable

RH Support

517295100

Unavailable

52

Flat Washer

224061201

$1.37

53

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

54

LH Lower Foam

414883500

Unavailable

RH Lower Foam

415048700

Unavailable

55

Center Foam

414985100

Unavailable

56

Front Support

517294500

Unavailable

57

Foam # 6

414931600

Unavailable

58

R.H Rear Foam

414883800

Unavailable

59

LH Rear Foam

414883700

Unavailable

60

Upper Foam

414975000

Unavailable
