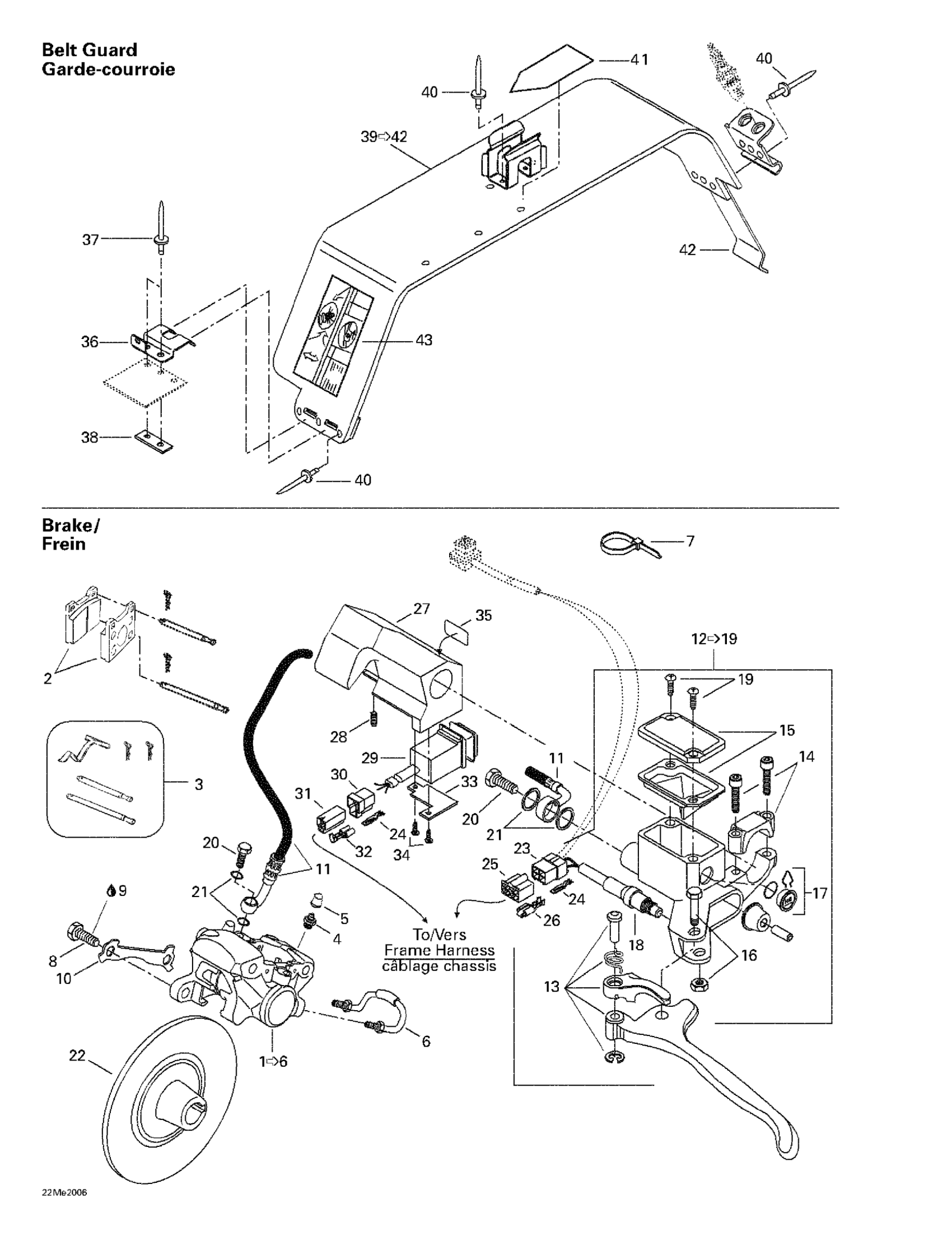

Ski-Doo Touring 500 LC, 2000 06- Hydraulic Brake And Belt Guard Diagram

#

Description
Price

1

Caliper | Includes 6 - 11. 500 F.

415034500

Unavailable

2

Brake Pad Kit

415129172

$52.99

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Tie-Rap 180 mm

414115200

$0.11

Tie-Rap 180 mm

414115200

$0.11

8

Hex. Screw M10 X 35

207103544

$1.58

9

Loctite 243, 10 ml

293800060

$21.49

10

Locking Tab

507029900

Unavailable

11

HOSE - Call your local BRP dealership This part replaces 507032212.

507032568

Unavailable

12

Master Cylinder Kit | Includes 20 - 26. This part replaces 507032294.

415130002

$369.99

13

LEVER - Call your local BRP dealership

507032428

Unavailable

14

Clamp And Screw Kit

507032477

$23.99

15

Cap

415029900

$41.49

16

Pin Ass'y

415030000

$19.99

17

WINDOW - Call your local BRP dealership

414990600

Unavailable

18

Microswitch

507032366

$98.99

19

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

20

Banjo Bolt

414920500

$8.68

21

Washer

414920600

$1.90

22

Brake Disk

507032203

Unavailable

23

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

24

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

25

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

26

Female Terminal PACKARD

561503200

Unavailable

27

DIMMER SWITCH HOUSING - Call your local BRP dealership | SWT 550

572079500

Unavailable

28

Socket Set Screw M8 X 10

414440800

$4.12

29

Dimmer Switch

515175371

Unavailable

30

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

31

Female Housing

409204300

Unavailable

32

Female Terminal

561503100

$2.41

33

Plate | SWT 550

517283800

Unavailable

34

Screw

414473200

Unavailable

35

Switch Decal

415025500

Unavailable

36

Pulley Guard Bracket

518314200

Unavailable

37

Pop Rivet 3/16"

390402200

$0.35

38

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

39

Belt Guard Ass'y | Includes 21 - 24.

417300025

Unavailable

40

Pop Rivet 3/16"

390402200

$0.35

41

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

42

Tool Box Spring

414941800

Unavailable

43

Suspension Adjustment Decal

418001709

Unavailable
