Description

Price

1

Chaincase | Formula 500 LC.

504151777

Unavailable

2

Chain Slider

504082400

Unavailable

3

Copper Washer | Formula DLX 500 LC.

732900040

Unavailable

4

Hex. Screw M6 X 16

207161644

$0.74

5

CYLINDER PIN - Call your local BRP dealership | Package-2X4, 4X4

732620001

Unavailable

6

Ball Bearing

293350115

$12.11

7

OIL SEAL - Call your local BRP dealership

414882800

Unavailable

8

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

9

MACHINED TENSIONER - Call your local BRP dealership

504081000

Unavailable

10

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

11

SCREW - Call your local BRP dealership

732601144

Unavailable

12

SPACER - Call your local BRP dealership

504080200

Unavailable

13

ROLLER - Call your local BRP dealership

414531300

Unavailable

14

NEEDLE BEARING - Call your local BRP dealership

405403000

Unavailable

15

WASHER - Call your local BRP dealership

504080300

Unavailable

16

ADJUSTING SCREW - Call your local BRP dealership

732601311

Unavailable

17

O-Ring

414484400

$7.51

18

Flat Washer 10 mm

234001410

$1.26

19

Shim

504093400

Unavailable

20

Sprocket Narrow (23 Tooth) | Formula 500 LC.

504078400

Unavailable

21

Washer

504087100

Unavailable

22

HEX. CASTELLATED NUT M16 - Call your local BRP dealership

232210414

Unavailable

23

RETAINING RING - Call your local BRP dealership

504076300

Unavailable

24

Coupling Axle

504097700

Unavailable

25

SPROCKET ASS'Y (44 TEETH) - Call your local BRP dealership | Includes 55 - 62. Formula Deluxe 500.

581095900

Unavailable

25

SPROCKET (44 TEETH) - Call your local BRP dealership | Formula Deluxe 500.

504088200

Unavailable

26

NEEDLE BEARING - Call your local BRP dealership

414772600

Unavailable

27

DRIVE PIN - Call your local BRP dealership

504076800

Unavailable

28

SPRING - Call your local BRP dealership

414772700

Unavailable

29

RETAINER RING - Call your local BRP dealership

504076100

Unavailable

30

Hex. Screw M5 X 20

207152044

$0.90

31

NUT-LOCK SPRING DIN.980V - Call your local BRP dealership

233551416

Unavailable

32

SLIDING GEAR, 56 TEETH - Call your local BRP dealership

504096800

Unavailable

33

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

205061644

Unavailable

34

Flat Washer 6 mm

234061410

$1.36

35

Hex. Screw M8 X 90

207089044

$3.48

36

Cap | Formula DLX 500 LC.

504099100

Unavailable

37

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

38

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

39

Reverse Shaft

504083100

$46.99

40

Spring Pin | Formula DLX 500 LC.

732804003

Unavailable

41

Spacer

504077300

$6.95

42

Ring

504078700

$20.99

43

SPROCK ASS?Y, 19 TEETH - Call your local BRP dealership | Includes 76 to 77

581122200

Unavailable

44

NEEDLE BEARING - Call your local BRP dealership

414805000

Unavailable

45

O-RING - Call your local BRP dealership

414969400

Unavailable

46

Sprocket Ass'y (19 Teeth) | Includes 67 - 68. Formula Deluxe 500.

581098200

Unavailable

47

NEEDLE BEARING - Call your local BRP dealership

414773100

Unavailable

48

Nut | Formula DLX 500 LC.

732610075

Unavailable

49

Washer

504082900

$2.64

50

TAB LOCK - Call your local BRP dealership

504087700

Unavailable

51

Release Spring | Formula DLX 500 LC.

504099200

Unavailable

52

Spacer

504083800

Unavailable

53

Protector

501022100

Unavailable

54

Elastic Locking Nut M10 X 1.5

233601416

$1.69

55

Hex. Screw M8 X 45

207084544

$1.48

56

Spring Washer

417000900

Unavailable

57

O-RING - Call your local BRP dealership

414773200

Unavailable

58

Cotter Pin

371801300

Unavailable

59

DRIVING CHAIN (72 LINKS, NARROW) - Call your local BRP dealership | 380F

504151883

Unavailable

60

Copper Flat Washer 10 mm

234001460

Unavailable

61

WASHER - Call your local BRP dealership

504094300

Unavailable

62

Plate | Formula DLX 500 LC.

504094602

Unavailable

63

Hex. Screw M5 X 14

207151444

$0.87

64

Lock Washer 5 mm | Europe

234151401

$0.55

65

Rubber Washer | Formula DLX 500 LC.

570045700

Unavailable

66

Lock Washer M6, Black

234161471

$0.53

67

Flanged Bushing | Formula DLX 500 LC.

414927600

Unavailable

68

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

69

Cover Chaincase | Formula DLX 500 LC.

504098500

Unavailable

70

Fork

504075800

Unavailable

71

Hex. Elastic Stop Nut M8

232581414

$0.56

72

Hex. Flange Screw M6 X 16

210261650

$1.67

73

Shaft | Formula DLX 500 LC.

504142900

Unavailable

74

SPRING PIN - Call your local BRP dealership

414772500

Unavailable

75

Support-Pivot | Formula DLX 500 LC.

504095000

Unavailable

76

Alignement Rod

570048600

$15.99

77

Weld Plate Pivoting | Formula DLX 500 LC.

504094900

Unavailable

78

RH BALL-JOINT - Call your local BRP dealership

414773400

Unavailable

79

Hex. Nut M6

232061414

$0.53

80

GRIP - Call your local BRP dealership | Formula DLX 500 LC.

570044600

Unavailable

81

Stopper-Switch | Formula DLX 500 LC.

572071100

Unavailable

82

WASHER - Call your local BRP dealership

504073700

Unavailable

83

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

84

O-Ring

414362300

Unavailable

85

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

86

FILLER CAP ASS'Y - Call your local BRP dealership | Includes 22 to 23

572092700

Unavailable

87

SCREW-SET SOCKET DIN.916 - Call your local BRP dealership

206540490

Unavailable

88

Hex. Screw M10 x 70

207107044

Unavailable

89

Phillips Screw 8x1/2"

364901600

Unavailable

90

Hex. Screw M10 x 45

207104544

Unavailable

91

Rivet | Formula DLX 500 LC.

390008900

Unavailable

92

Tie Rod (Bar) | Formula DLX 500 LC.

504094700

Unavailable

93

DC Horn

414805102

Unavailable

94

Elastic Stop Nut M5

232551414

$0.87

95

Silicone Sealant 51388, 300 ml

296000309

$36.99

96

Push Nut

389804300

$0.53

97

Elastic Stop Nut M6

232561414

$0.55

98

Ball Bearing 6206 | Formula 500 LC.

405403900

Unavailable

99

OIL SEAL - Call your local BRP dealership

504151925

Unavailable

100

Circlip (Int-rior)

414784900

Unavailable

101

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

102

Loctite 271, 10 ml

293800005

$26.99

103

Loctite 243, 10 ml

293800060

$21.49

104

Was 413702700 Loctite 515, 50 ml

219704462

$33.99

105

Hair Pin

414575600

$1.89

106

Switch Ass'y | Includes 107 - 110. Formula DLX 500 LC.

515175152

Unavailable

107

Female Terminal

409010300

$4.39

108

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

109

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

110

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

111

Female Terminal

561503100

$2.41

112

SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership

413803300

Unavailable

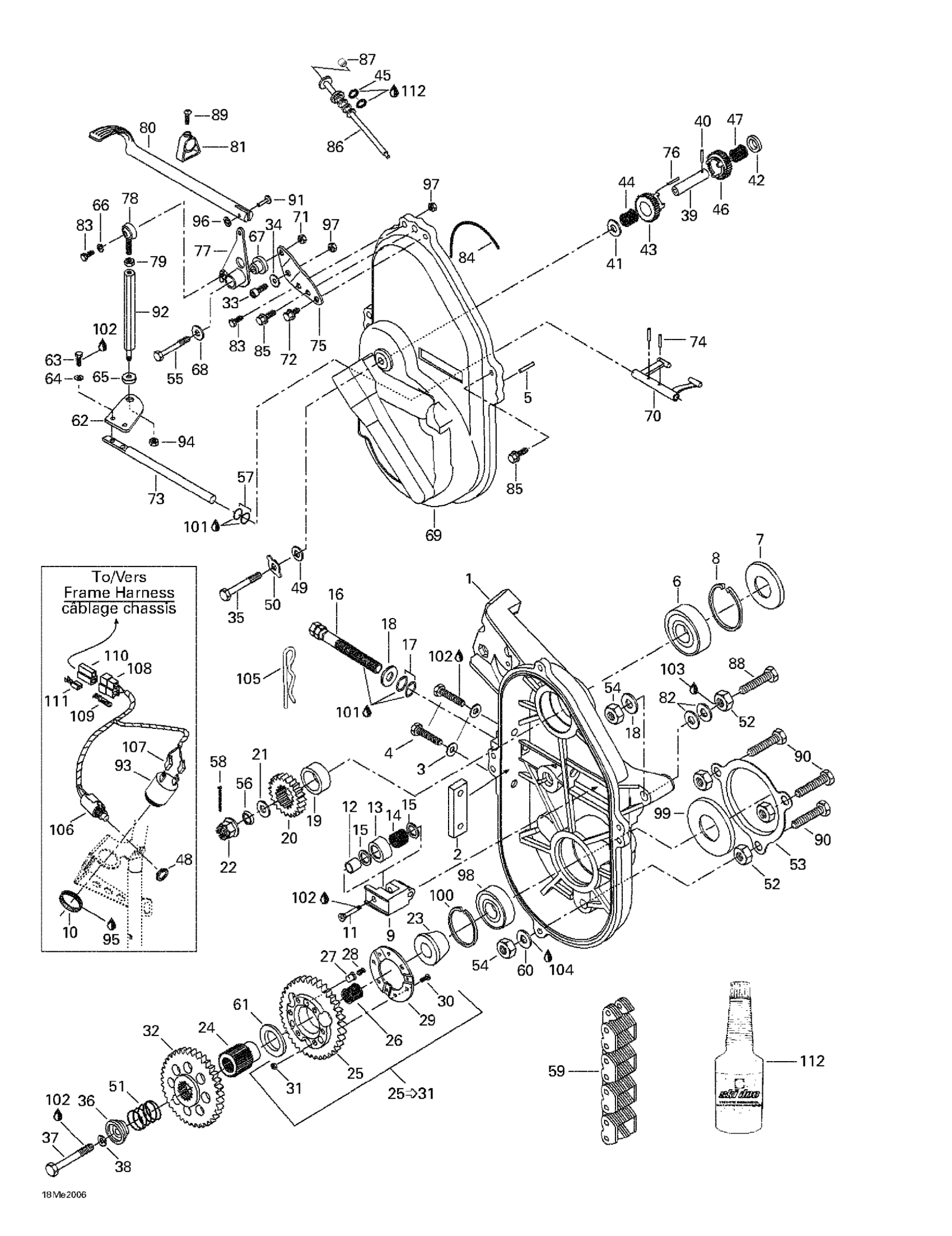

Ski-Doo Touring 500 LC, 2000 05- Transmission Diagram
