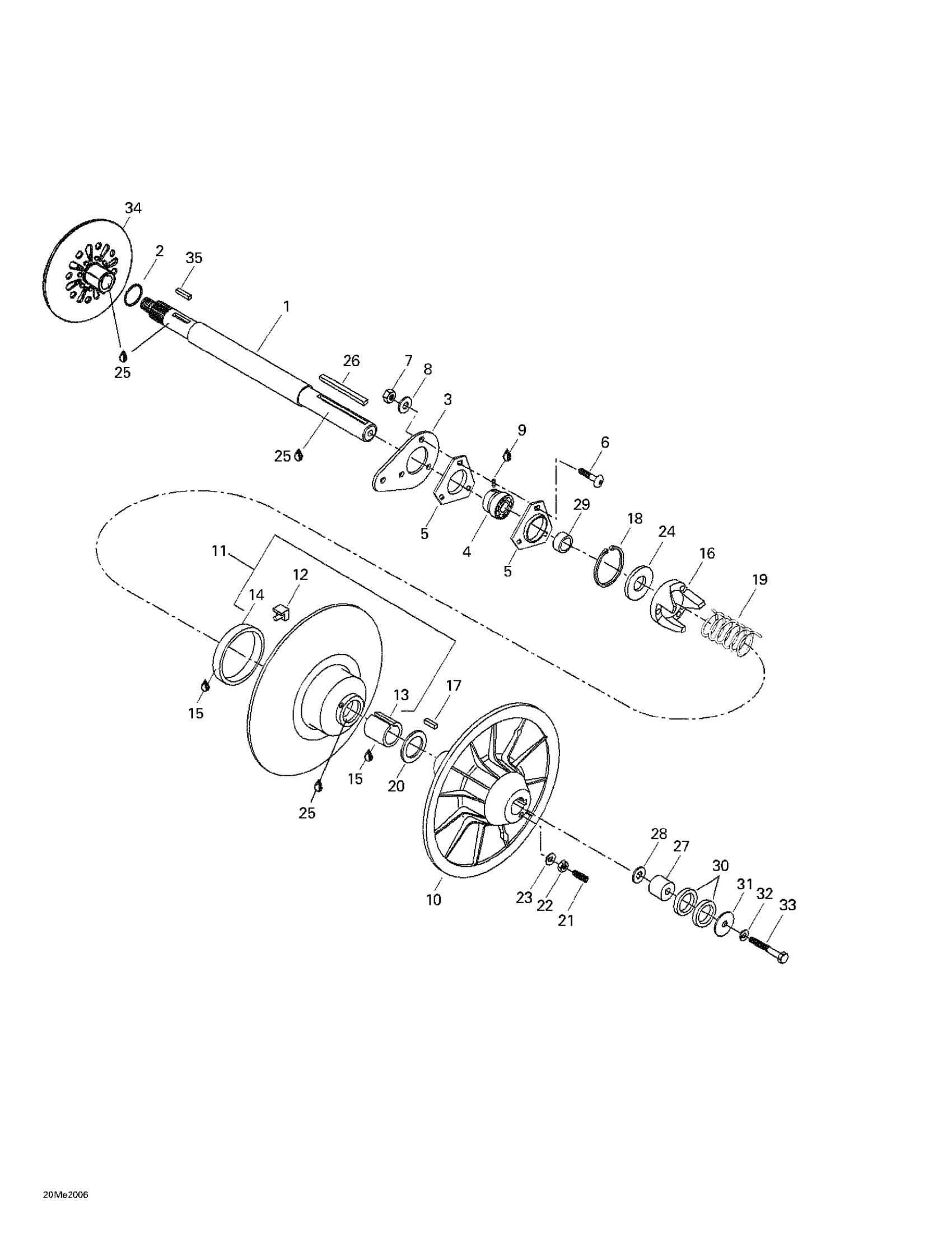

Ski-Doo Touring 500 LC, 2000 05- Driven Pulley Diagram
#
Description
Price
1
Countershaft
504149300
Unavailable
3
Spacer
501022300
Unavailable
4
BALL BEARING WITH COLLAR - Call your local BRP dealership
405408300
Unavailable
5
FLANGE - Call your local BRP dealership
501025000
Unavailable
6
SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership
205482546
Unavailable
10
Fixed Flange
504141600
Unavailable
11
Sliding Pulley | Includes 24 - 27.
504143400
Unavailable
12
CAM SLIDER SHOE - Call your local BRP dealership
414918000
Unavailable
13
BUSHING - Call your local BRP dealership
415011200
Unavailable
14
GARLOCK BUSHING - Call your local BRP dealership
414876600
Unavailable
16
Cam 44 Deg. (Summit 600 (Sport)) | Summit 600.
417126333
Unavailable
17
Key
414820800
Unavailable
18
CIRCLIP - Call your local BRP dealership
371903100
Unavailable
19
RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige
414558900
Unavailable
20
Thrust Washer
504141900
Unavailable
21
Socket Set Screw M6 X 30
206263044
Unavailable
23
WASHER - Call your local BRP dealership
420245370
Unavailable
24
Washer
504141800
Unavailable
25
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
26
Key
414581300
Unavailable
27
Counter Shaft Extension
504091600
Unavailable
28
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
29
Shim
504128300
Unavailable
30
SHIM - Call your local BRP dealership
504108200
Unavailable
31
WASHER - Call your local BRP dealership
517078700
Unavailable
34
Brake Disk
507032203
Unavailable
35
KEY - Call your local BRP dealership
507021300
Unavailable
