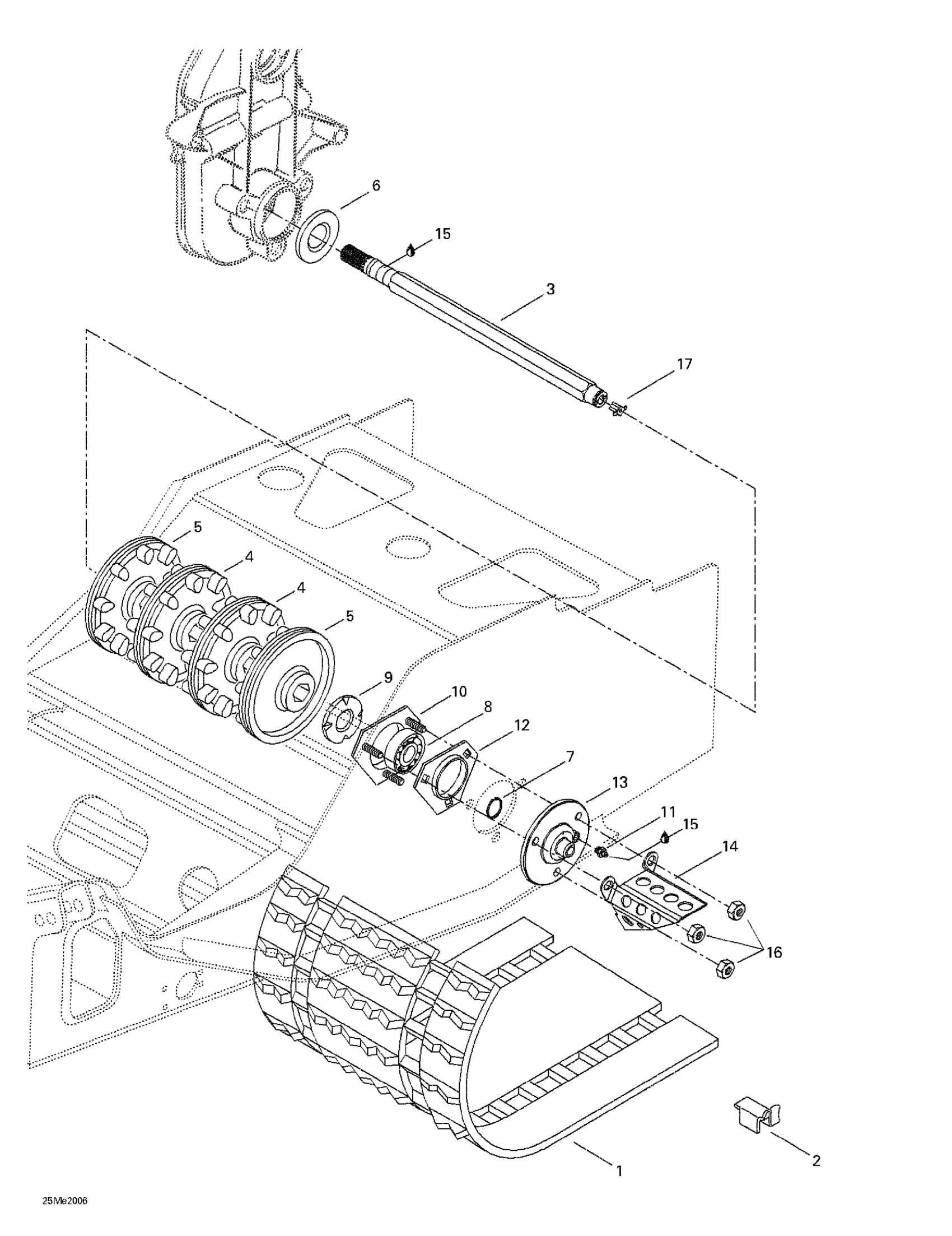

Ski-Doo Touring 500 LC, 2000 05- Drive Axle And Track Diagram
#
Description
Price
1
Track 15" X 136" X 0.88" Ass'y | Includes 7 to 9, North America This part replaces 504152489.
504152455
$799.99
Track (Europe)
570212500
Unavailable
3
Drive Axle
501026500
Unavailable
4
9 Tooth Sprocket
414663900
Unavailable
5
9 Tooth Half Sprocket
414990800
Unavailable
6
OIL SEAL - Call your local BRP dealership
504151925
Unavailable
9
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
10
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
12
FLANGE - Call your local BRP dealership
501025000
Unavailable
13
Flange, Speedo Drive Insert
504151836
Unavailable
14
CABLE PROTECTOR - Call your local BRP dealership
517290100
Unavailable
15
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
17
SPEEDO DRIVE INSERT - Call your local BRP dealership
572010100
Unavailable
