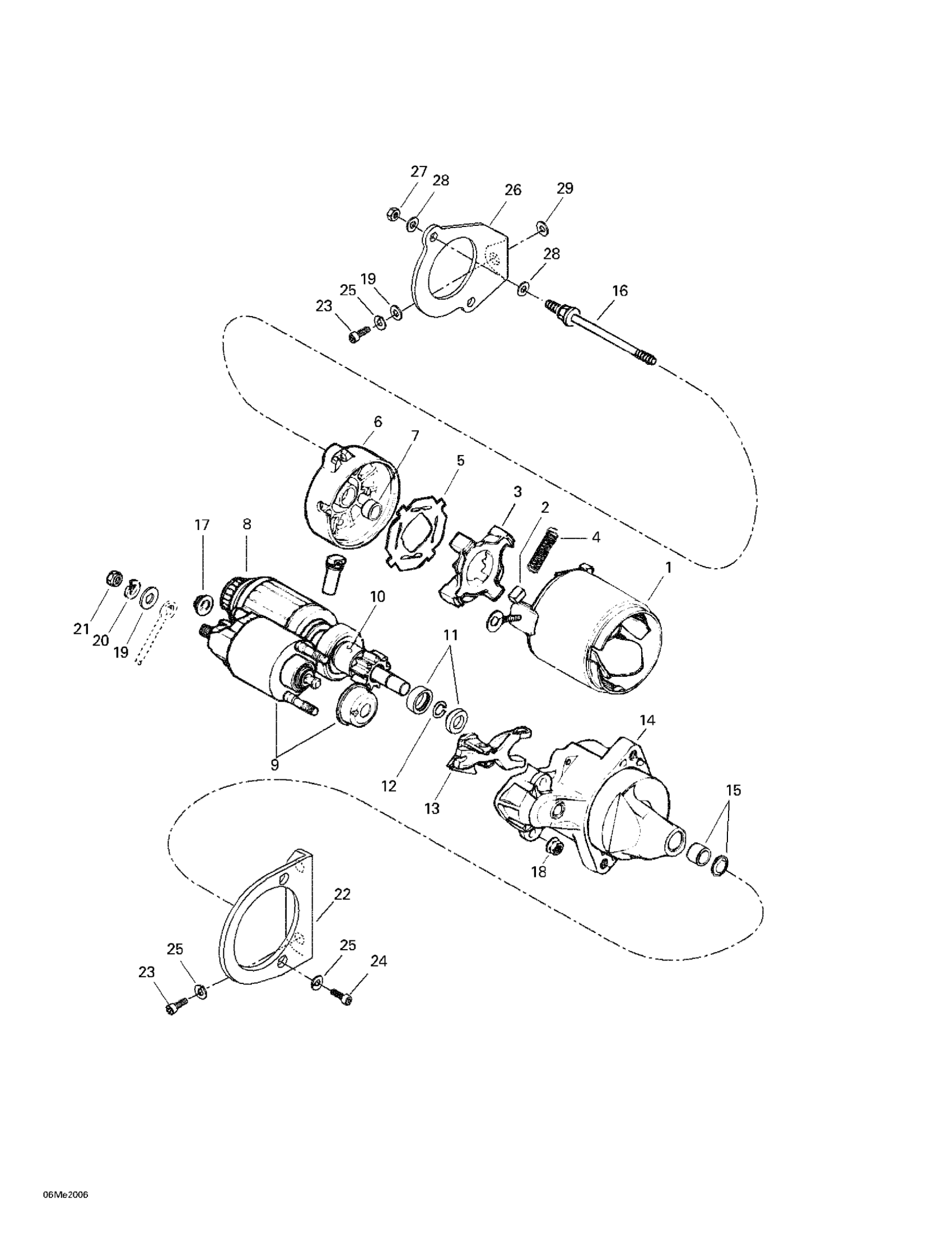

Ski-Doo Touring 500 LC, 2000 04- Electric Starter Diagram
#
Description
Price
1
HOUSING STARTER - Call your local BRP dealership
410209500
Unavailable
2
BRUSH - Call your local BRP dealership
410209600
Unavailable
3
BRUSH HOLDER - Call your local BRP dealership
410209700
Unavailable
4
BRUSH SPRING - Call your local BRP dealership
410209800
Unavailable
5
INSULATOR - Call your local BRP dealership
410209900
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
BRASS BUSHING - Call your local BRP dealership
410210100
Unavailable
8
Armature Assy.
410210200
Unavailable
9
SWITCH ASSY. - Call your local BRP dealership
410210300
Unavailable
10
STARTER CLUTCH - Call your local BRP dealership
410210400
Unavailable
11
NUT - Call your local BRP dealership
410212500
Unavailable
12
CIRCLIP - Call your local BRP dealership
410212600
Unavailable
13
LEVER - Call your local BRP dealership
410210700
Unavailable
14
Housing
410210800
Unavailable
15
BRASS BUSHING - Call your local BRP dealership
410210900
Unavailable
16
BOLT - Call your local BRP dealership
410212000
Unavailable
17
NUT - Call your local BRP dealership
410211100
Unavailable
18
NUT - Call your local BRP dealership
410211200
Unavailable
22
Starter Bracket (PTO) | Formula DLX 500 LC.
420853730
Unavailable
26
STARTER SUPPORT (MAG) - Call your local BRP dealership | Formula DLX 500 LC.
420953011
Unavailable
28
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
29
Hard Washer | Formula DLX 500 LC.
503007900
Unavailable
